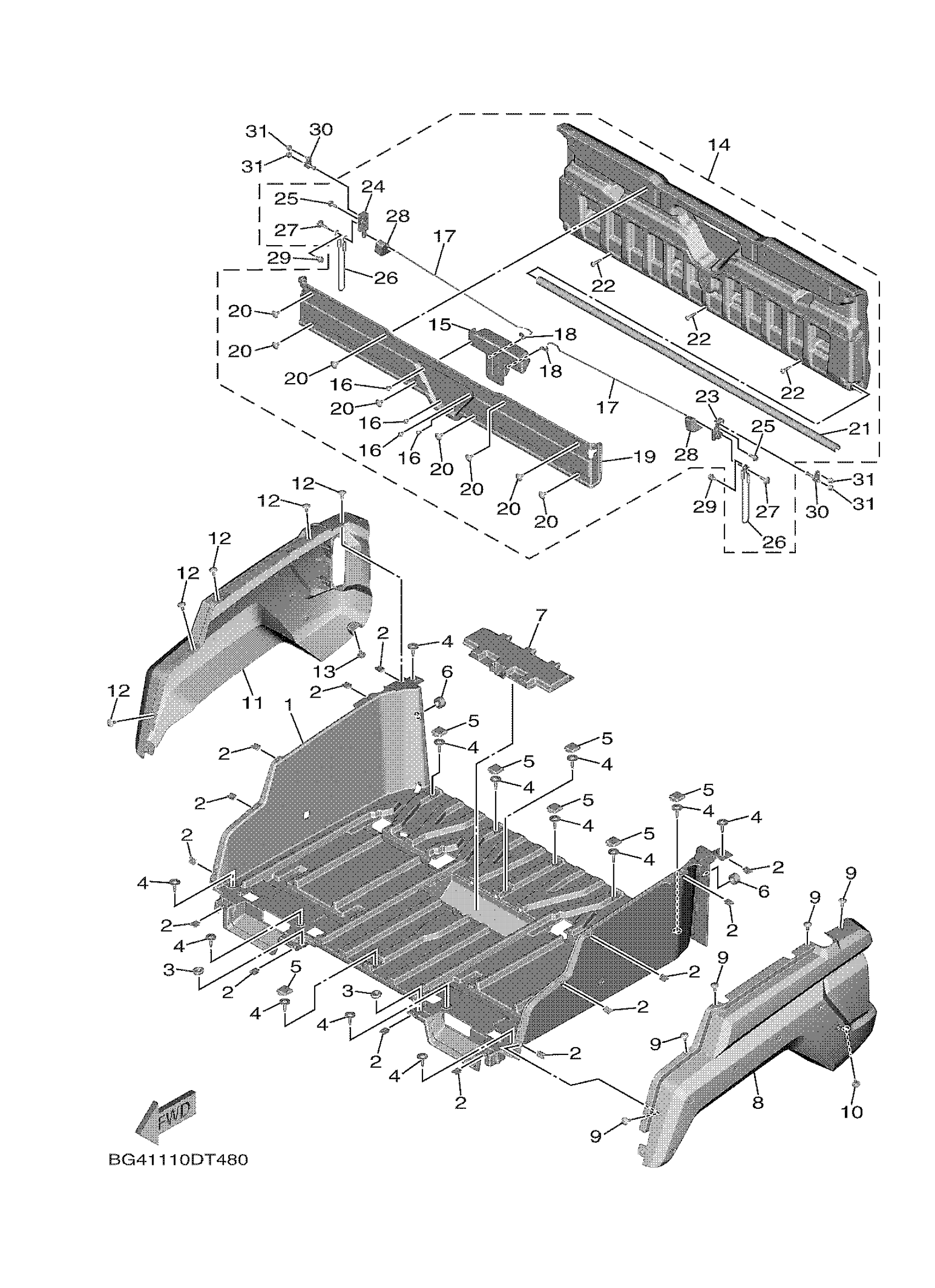

Yamaha YXF85WPAKR (WOLVERINE X4) BG4F 2019 CARRIER Diagram
#
1
BOX,TOOL
BG4-F1171-01-00
Unavailable
2
NUT, SPRING
90183-060A6-00
$5.49
3
GROMMET(4DN)
90480-01558-00
$4.19
4
BOLT
90109-068A5-00
$7.49
5
CAP
2MB-F143A-00-00
$1.81
6
DAMPER, SEAT
4XE-F4747-00-00
$30.99
7
BELT, BODY HOLDER
BG4-F471S-00-00
$8.49
8
PANEL, REAR FENDER
BG4-K8191-20-00
$109.99
9
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
10
BOLT
90109-06202-00
$7.49
11
PANEL, REAR FENDER
BG4-K8192-20-00
$109.99
12
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
13
BOLT
90109-06202-00
$7.49
14
REAR STORAGE LID C
BG4-K810N-00-00
$316.99
15
HANDLE, LATCH
BG4-F389F-02-00
$76.99
16
. BOLT, HEXAGON SOCKET BUTTON
90111-06838-00
Unavailable
17
ROD
BG4-F8478-00-00
Unavailable
18
CLIP, CABLE
BG4-F2805-01-00
Unavailable
19
COVER
BG4-F331G-00-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD(1FK)
90110-06102-00
Unavailable
21
HINGE 2
1XD-F463F-00-00
Unavailable
22
. SCREW
90149-06846-00
Unavailable
23
LOCK ASSY
BG4-F16A0-00-00
Unavailable
24
LOCK ASSY 2
BG4-F16B0-00-00
Unavailable
25
BOLT, FLANGE
95817-06016-00
Unavailable
26
HOLDER, CABLE
5UG-K7195-10-00
Unavailable
27
BOLT
90109-06171-00
Unavailable
28
DAMPER 2
BG4-F8416-10-00
Unavailable
29
BOLT
90109-06202-00
$7.49
30
BOLT, STUD
BG4-F4441-00-00
Unavailable
31
NUT, U FLANGE
95604-06200-00
Unavailable
