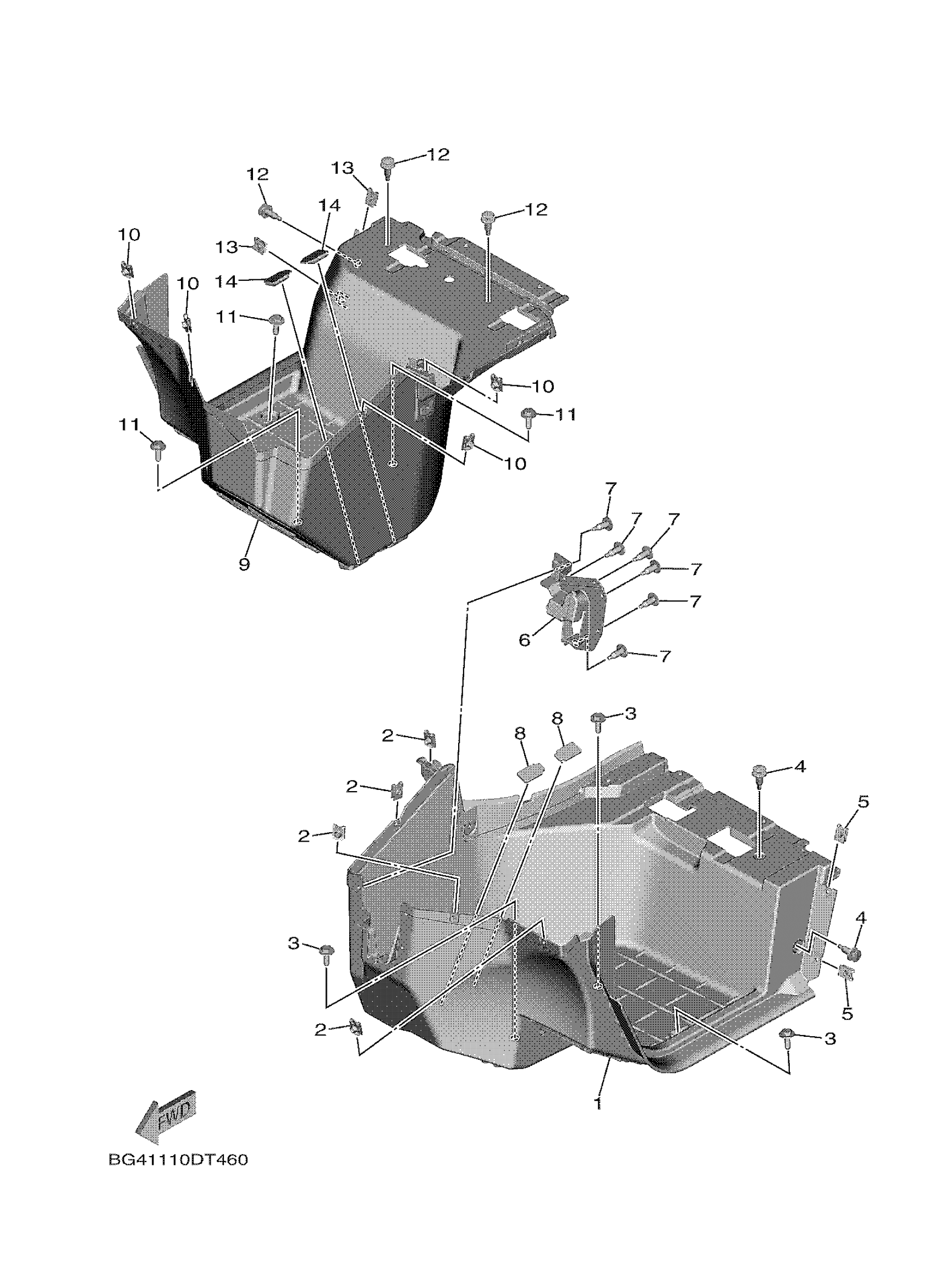

Yamaha YXF85WPAJL (WOLVERINE X4) BG46 2018 STAND FOOTREST Diagram

#

Description

Price

1

FOOTREST 1

BG4-F7411-00-00

$120.15

2

NUT, SPRING

90183-060A6-00

$3.90

3

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

4

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

5

NUT, SPRING

90183-060A6-00

$3.90

6

COVER, DUST

BG4-F7286-00-00

$8.14

7

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

8

PLUG, HOLE

BG4-F312G-00-00

$1.51

9

FOOTREST 2

BG4-F7421-01-00

$81.83

10

NUT, SPRING

90183-060A6-00

$3.90

11

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

12

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

13

NUT, SPRING

90183-060A6-00

$3.90

14

PLUG, HOLE

BG4-F312G-00-00

$1.51
