Description

Price

1

CAM, SHIFT

BG4-18541-00-00

Unavailable

2

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

3

POINT, NEUTRAL

3P6-18542-00-00

$7.99

4

BRG. (256)

93316-00501-00

$33.99

5

PLATE, BEARING COVER

3D7-15388-00-00

$5.49

6

BOLT, FLANGE

95022-06012-00

$3.29

7

FORK, SHIFT 1

BG4-18501-00-00

Unavailable

8

COLLAR

90387-06326-00

$7.49

9

CIRCLIP (EU0)

99080-04600-00

Unavailable

10

BAR, SHIFT FORK GUIDE 1

BG4-18531-00-00

$44.99

11

SPRING, COMPRESSION

90501-160A6-00

Unavailable

12

SPRING, COMPRESSION

90501-160A7-00

Unavailable

13

CAP, SPRING

BG4-18323-00-00

Unavailable

14

CIRCLIP(13H)

99009-14400-00

$3.59

15

BALL

93503-08007-00

$4.15

16

SPRING, COMPRESSION (465)

90501-10353-00

Unavailable

17

BOLT, FLANGE

90105-14003-00

Unavailable

18

GASKET(59V)

90430-14194-00

Unavailable

19

COLLAR (26H)

90387-204H5-00

Unavailable

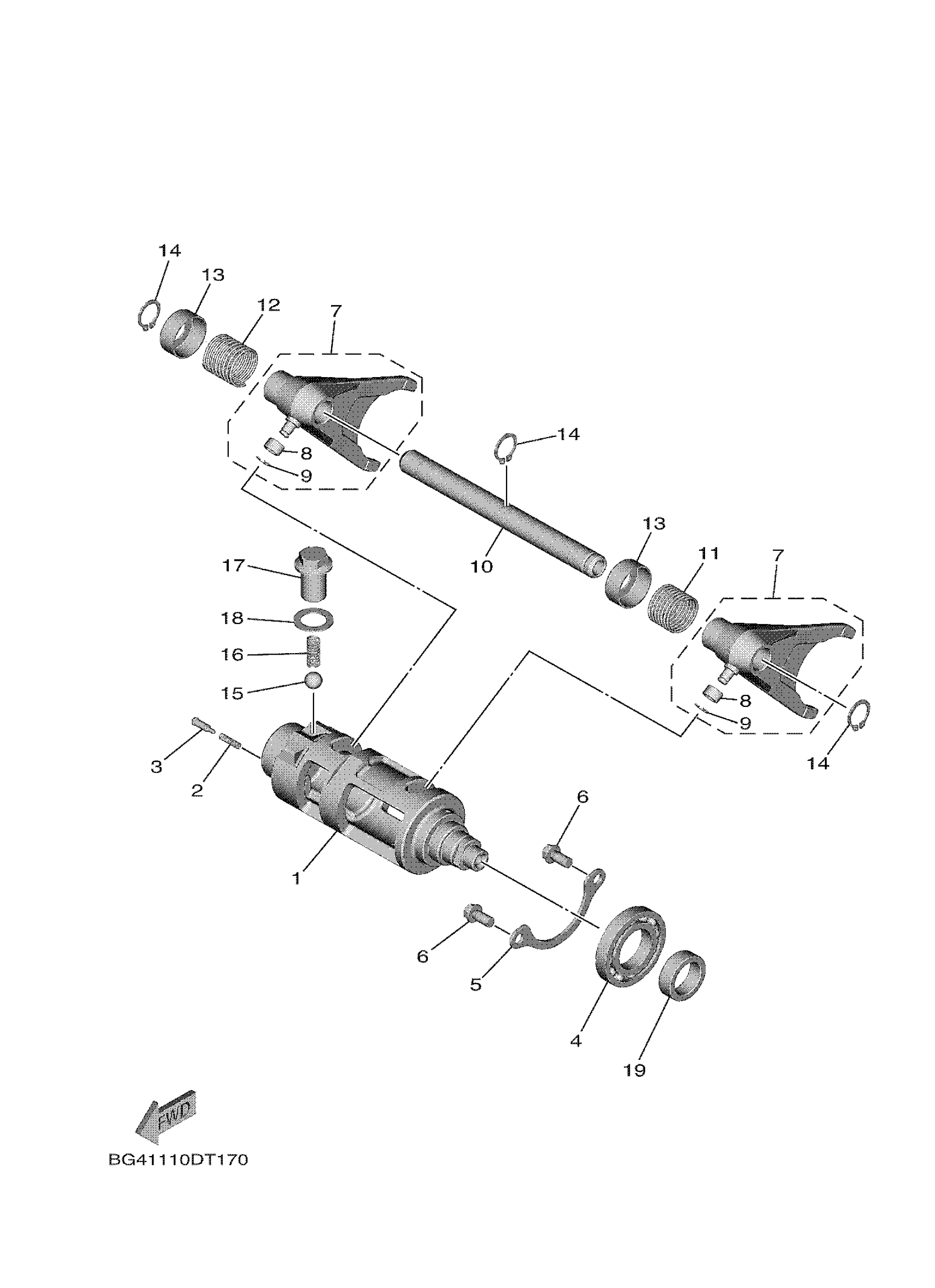

Yamaha YXF85WPAJL (WOLVERINE X4) BG46 2018 SHIFT CAM FORK Diagram

CAM, SHIFT

SPRING COMPRESSION278185450000

POINT, NEUTRAL

BRG. (256)

PLATE, BEARING COVER

BOLT, FLANGE

FORK, SHIFT 1

COLLAR

CIRCLIP (EU0)

BAR, SHIFT FORK GUIDE 1

SPRING, COMPRESSION

SPRING, COMPRESSION

CAP, SPRING

CIRCLIP(13H)

BALL

SPRING, COMPRESSION (465)

BOLT, FLANGE

GASKET(59V)

COLLAR (26H)
