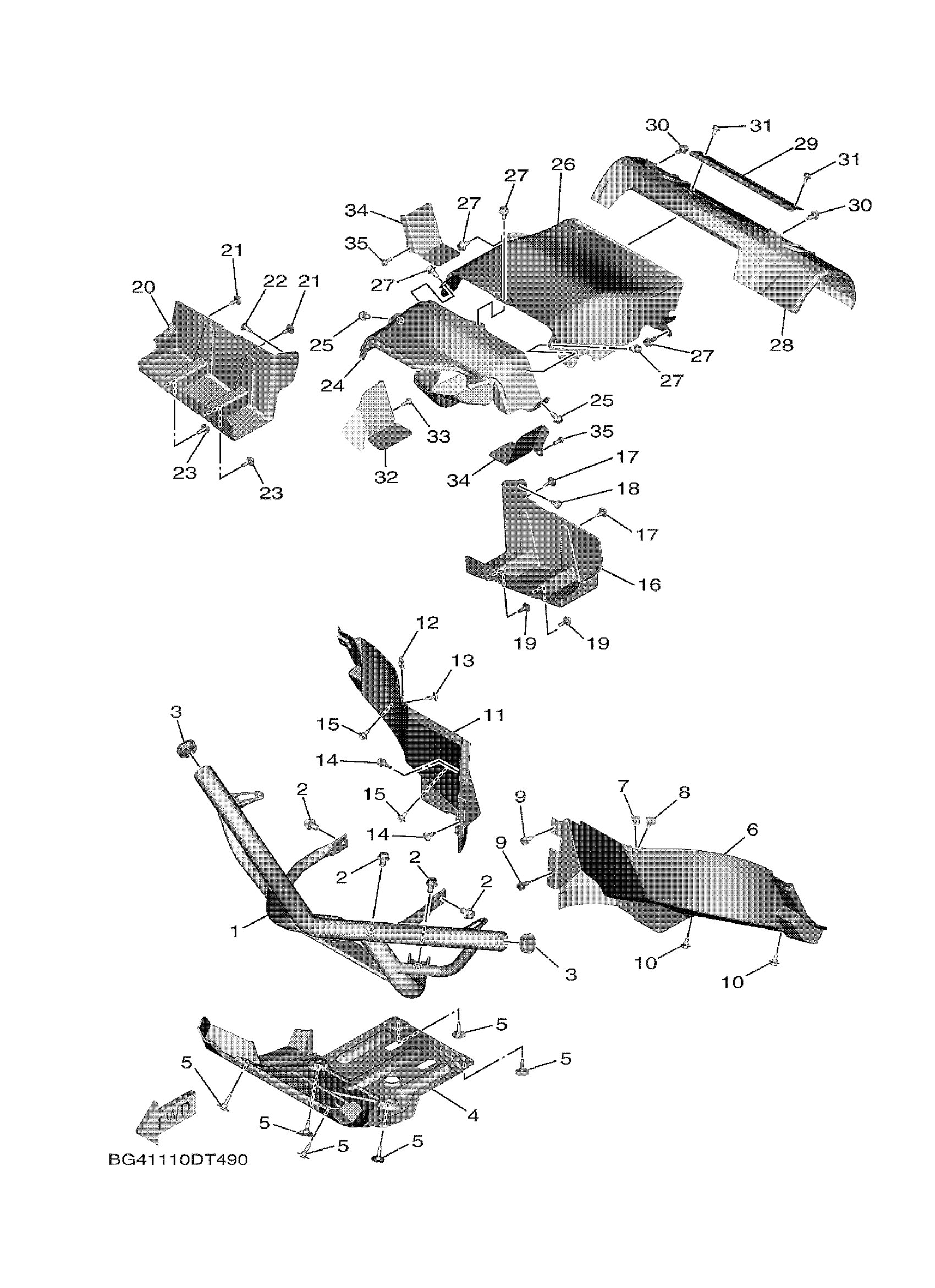

Yamaha YXF85WPAJL (WOLVERINE X4) BG46 2018 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

BG4-F845N-01-00

$264.02

2

BOLT, FLANGE

95812-10016-00

$7.70

3

PLUG (FRONT BUMPER)

5UG-F2417-00-00

$4.96

4

COVER, UNDER

2MB-F8385-00-00

$35.50

5

BOLT

90109-068A5-00

$5.67

6

GUARD 1

BG4-F2361-01-00

$15.26

7

NUT, SPRING

90183-060A6-00

$3.90

8

BOLT, WITH WASHER

90119-06226-00

$2.12

9

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

10

BOLT

90109-06202-00

$2.46

11

GUARD 2

BG4-F2362-01-00

$19.92

12

NUT, SPRING

90183-060A6-00

$3.90

13

BOLT, WITH WASHER

90119-06226-00

$2.12

14

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

15

BOLT

90109-06202-00

$2.46

16

MUD GUARD 1

BG4-F2327-00-00

Unavailable

17

BOLT, WITH WASHER

90119-06226-00

$2.12

18

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

19

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

20

MUD GUARD 2

BG4-F2328-00-00

Unavailable

21

BOLT, WITH WASHER

90119-06226-00

$2.12

22

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

23

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

24

PROTECTOR, HEAT

BG4-E2682-01-00

$123.94

25

BOLT, FLANGE

90105-08867-00

Unavailable

26

PROTECTOR, HEAT

BG4-E2683-01-00

Unavailable

27

BOLT, FLANGE

90105-08867-00

Unavailable

28

INSULATOR, MOUNTING

BG4-F2891-00-00

$41.41

29

INSULATOR, MOUNTIN

BG4-F2894-00-00

Unavailable

30

BOLT, FLANGE

90105-08867-00

Unavailable

31

BOLT, FLANGE

95812-06010-00

Unavailable

32

PROTECTOR 2

BG4-F2826-00-00

Unavailable

33

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

Unavailable

34

PROTECTOR 1

BG4-F2825-00-00

Unavailable

35

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

Unavailable
