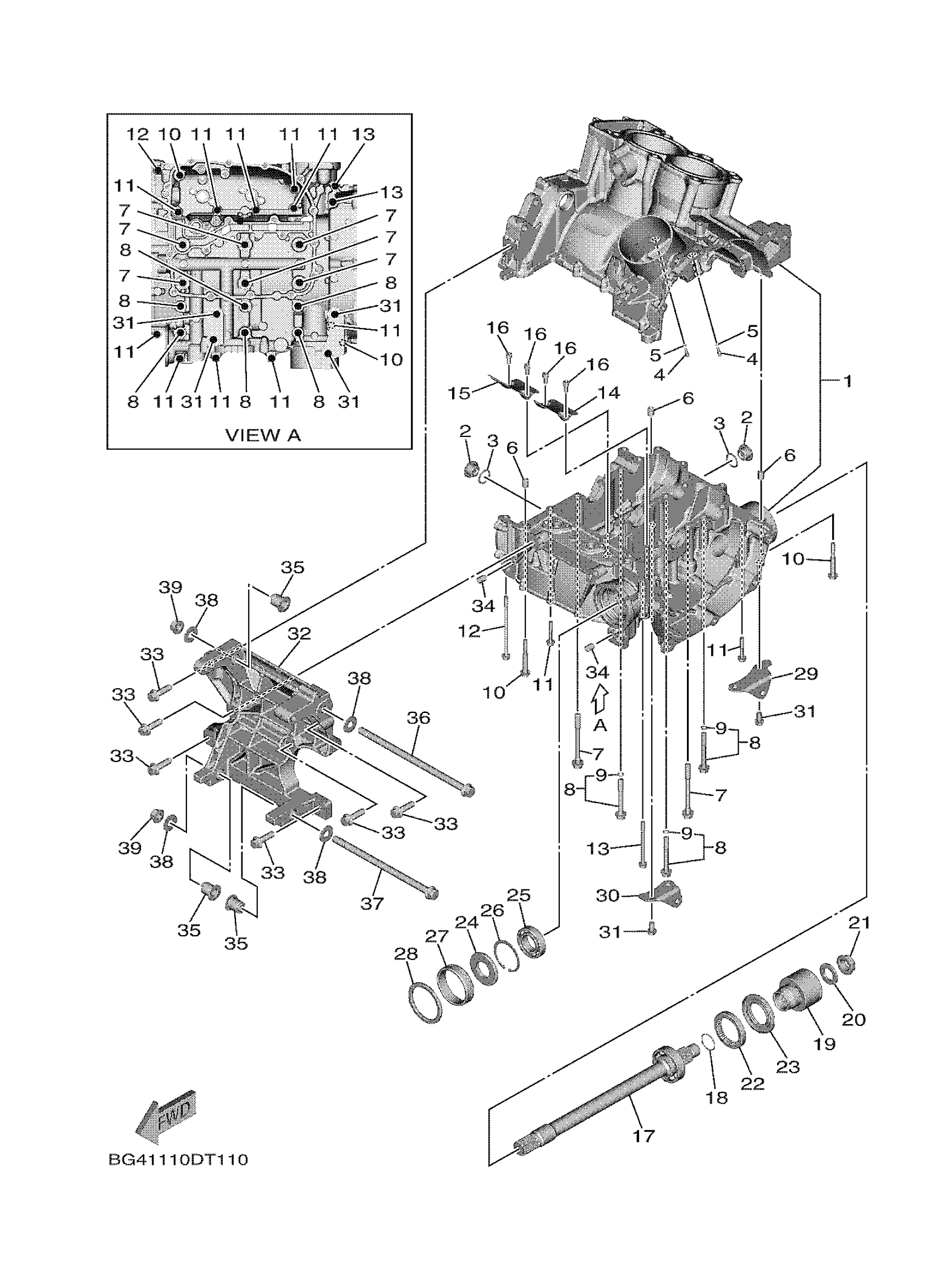

Yamaha YXF85WPAJL (WOLVERINE X4) BG46 2018 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

BG4-E5100-09-00

Unavailable

2

PLUG

4H7-15189-00-00

$30.99

3

O-RING

93210-20802-00

$0.86

4

NOZZLE 3

5EB-15155-00-00

$14.49

5

O-RING (210)

93210-04092-00

$3.76

6

PIN, DOWEL(3VD)

99530-10114-00

$2.55

7

BOLT, WITH WASHER

90119-09010-00

$13.49

8

BOLT, CRANKCASE JOURNAL

BG4-15156-00-00

$7.49

9

O-RING (11M)

93210-07540-00

$7.49

10

BOLT

90109-06100-00

$8.49

11

BOLT, FLANGE

95817-06040-00

$5.60

12

BOLT, FLANGE

95812-06120-00

Unavailable

13

BOLT, FLANGE

90105-06202-00

$1.91

14

PLATE, BAFFLE 1

BG4-15123-00-00

$5.60

15

PLATE, BUFFLE 2

BG4-15124-00-00

$8.49

16

BOLT (33M)

91312-06014-00

Unavailable

17

MIDDLE DRIVEN SHAFT ASSY

BG4-1755A-00-00

Unavailable

18

O-RING (M01)

93210-25755-00

Unavailable

19

COUPLING

BG4-17832-00-00

Unavailable

20

WASHER, PLATE

90201-22025-00

Unavailable

21

NUT

90179-22025-00

Unavailable

22

NUT(59V)

90179-65305-00

Unavailable

23

OIL SEAL

93102-40031-00

Unavailable

24

OIL SEAL

93102-30018-00

Unavailable

25

BEARING(2HR)

93306-00612-00

Unavailable

26

CIRCLIP

99009-55500-00

Unavailable

27

COLLAR

90387-61001-00

Unavailable

28

O-RING (4U8)

93210-63442-00

Unavailable

29

BRACKET

B4D-E4867-00-00

Unavailable

30

BRACKET 2

B4D-E4868-00-00

Unavailable

31

BOLT, FLANGE

95022-08016-00

Unavailable

32

ADAPTER

BG4-17848-00-00

Unavailable

33

BOLT, FLANGE

95812-10035-00

Unavailable

34

PIN, DOWEL(3VD)

99530-10114-00

$2.55

35

BOLT

8FG-2149C-00-00

Unavailable

36

BOLT, FLANGE

90105-12086-00

Unavailable

37

BOLT, FLANGE

90105-12044-00

Unavailable

38

WASHER, PLATE(8CJ)

90201-120T5-00

Unavailable

39

95702-12500

95702-12500-00

Unavailable
