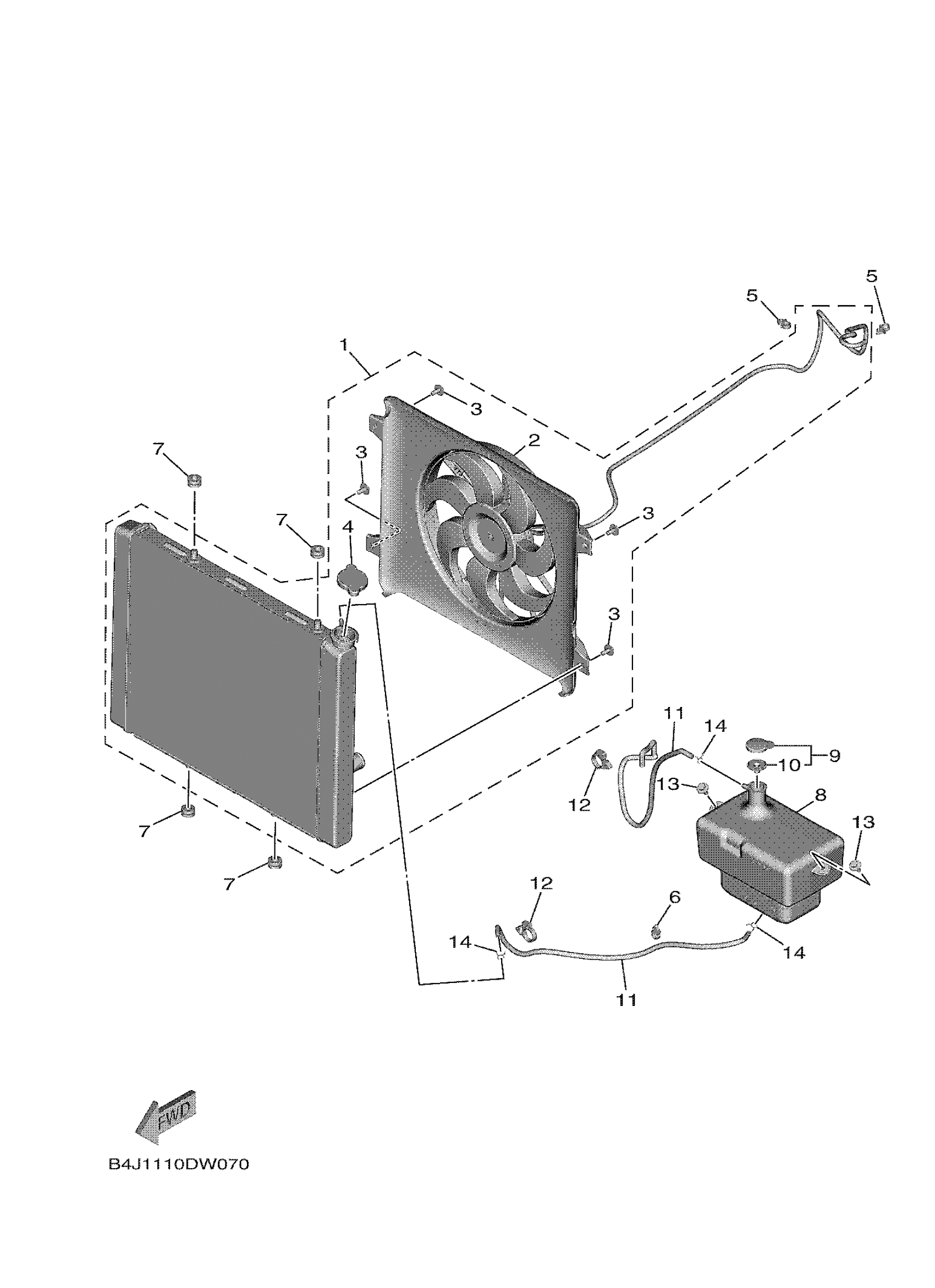

Yamaha YXF10WRZTM (WOLVERINE RMAX4 1000 COMPACT XT R) BLU7 2026 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

BG4-E2460-03-00

Unavailable

2

BLOWER ASSY

BG4-E2405-02-00

Unavailable

3

BOLT, BLOWER HOLDI

1XD-E2675-00-00

$1.09

4

CAP, RADIATOR

1XD-E2462-00-00

$12.09

5

CLAMP

90464-12830-00

$0.98

6

CLAMP

90464-12830-00

$0.98

7

GROMMET(2GH)

90480-12475-00

$6.22

8

TANK, RECOVERY

B4J-F1871-00-00

$18.00

9

CAP

1AA-21815-00-00

$10.36

10

GASKET

1AA-21874-00-00

$5.96

11

HOSE (L510)

90445-08850-00

$1.92

12

CLAMP

90464-20010-00

$2.01

13

BOLT, WITH WASHER

90119-06226-00

$2.12

14

CLIP 101235600

90467-08003-00

$5.88
