- YXF10WRZTM (WOLVERINE RMAX4 1000 COMPACT XT R) BLU7 2026
GUARD 2

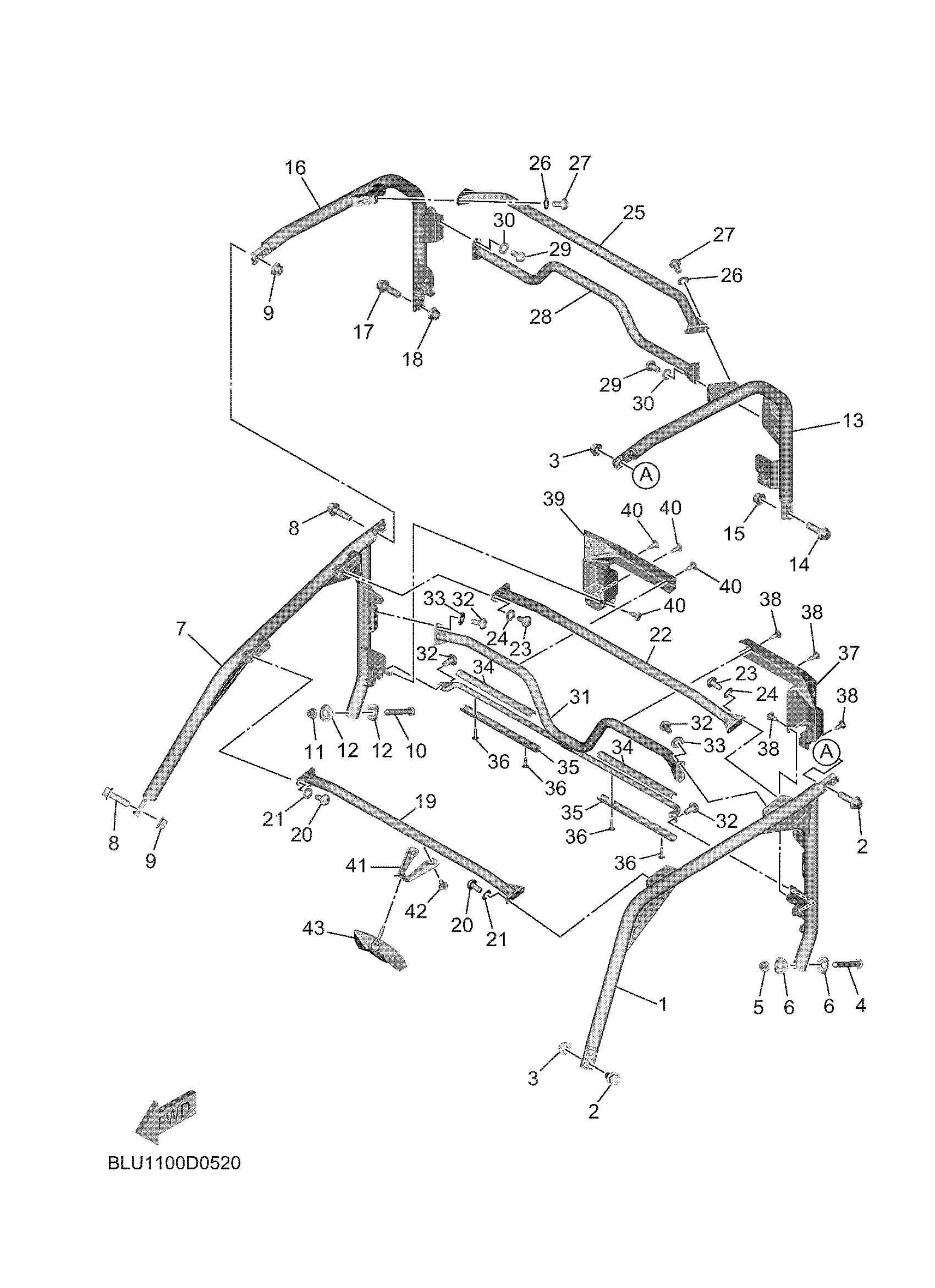

Yamaha YXF10WRZTM (WOLVERINE RMAX4 1000 COMPACT XT R) BLU7 2026 GUARD 2 Diagram
#
1
SUPPORT, ROOF 3
BYP-K831A-00-00
$382.99
2
BOLT, FLANGE
95817-12040-00
$4.19
3
NUT, SELF-LOCKING
90185-12002-00
$12.49
4
BOLT,BUTTON
92017-10070-00
$4.14
5
NUT, SELF-LOCKING
90185-10819-00
$0.90
6
WASHER 2
1XD-K7526-00-00
$5.49
7
SUPPORT, ROOF 4
BYP-K831E-00-00
Unavailable
8
BOLT, FLANGE
95817-12040-00
$4.19
9
NUT, SELF-LOCKING
90185-12002-00
$12.49
10
BOLT,BUTTON
92017-10070-00
$4.14
11
NUT, SELF-LOCKING
90185-10819-00
$0.90
12
WASHER 2
1XD-K7526-00-00
$5.49
13
FRAME, SUNROOF 1
B4J-K833M-01-00
$224.99
14
BOLT, FLANGE
95817-12040-00
$4.19
15
NUT, SELF-LOCKING
90185-12002-00
$12.49
16
FRAME, SUNROOF 2
B4J-K833R-01-00
Unavailable
17
BOLT, FLANGE
95817-12040-00
$4.19
18
NUT, SELF-LOCKING
90185-12002-00
$12.49
19
MEMBER, ROOF FRAME
B4J-K8392-01-00
Unavailable
20
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
21
WASHER, PLATE
90201-10856-00
Unavailable
22
MEMBER, ROOF FRAME 2
B4J-K8393-01-00
Unavailable
23
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
24
WASHER, PLATE
90201-10856-00
Unavailable
25
MEMBER, ROOF FRAME 3
B4J-K8394-01-00
Unavailable
26
WASHER, PLATE
90201-10856-00
Unavailable
27
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
28
ROOF SUPPORT ASSY
B4J-K830A-00-00
Unavailable
29
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
30
WASHER, PLATE
90201-10856-00
Unavailable
31
ROOF SUPPORT ASSY
B4J-K830B-00-00
Unavailable
32
BOLT,HEX. SOCKET B
90111-10802-00
Unavailable
33
WASHER, PLATE
90201-10856-00
Unavailable
34
GRIP,HAND
BG4-K8214-01-00
Unavailable
35
COVER,ASSIST GRIP
BG4-K7575-01-00
Unavailable
36
SCREW, ROUND TAPPING
90160-05012-00
Unavailable
37
COVER, SIDE PILLAR
B4J-K813F-00-00
Unavailable
38
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
39
COVER, SIDE PILLAR
B4J-K813G-00-00
Unavailable
40
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
41
BRACKET 2
BAS-K7722-00-00
Unavailable
42
BOLT, FLANGE
90105-08867-00
Unavailable
43
MIRROR
BKP-F6291-01-00
Unavailable
