- YXF10WRZTM (WOLVERINE RMAX4 1000 COMPACT XT R) BLU7 2026
CRANKCASE

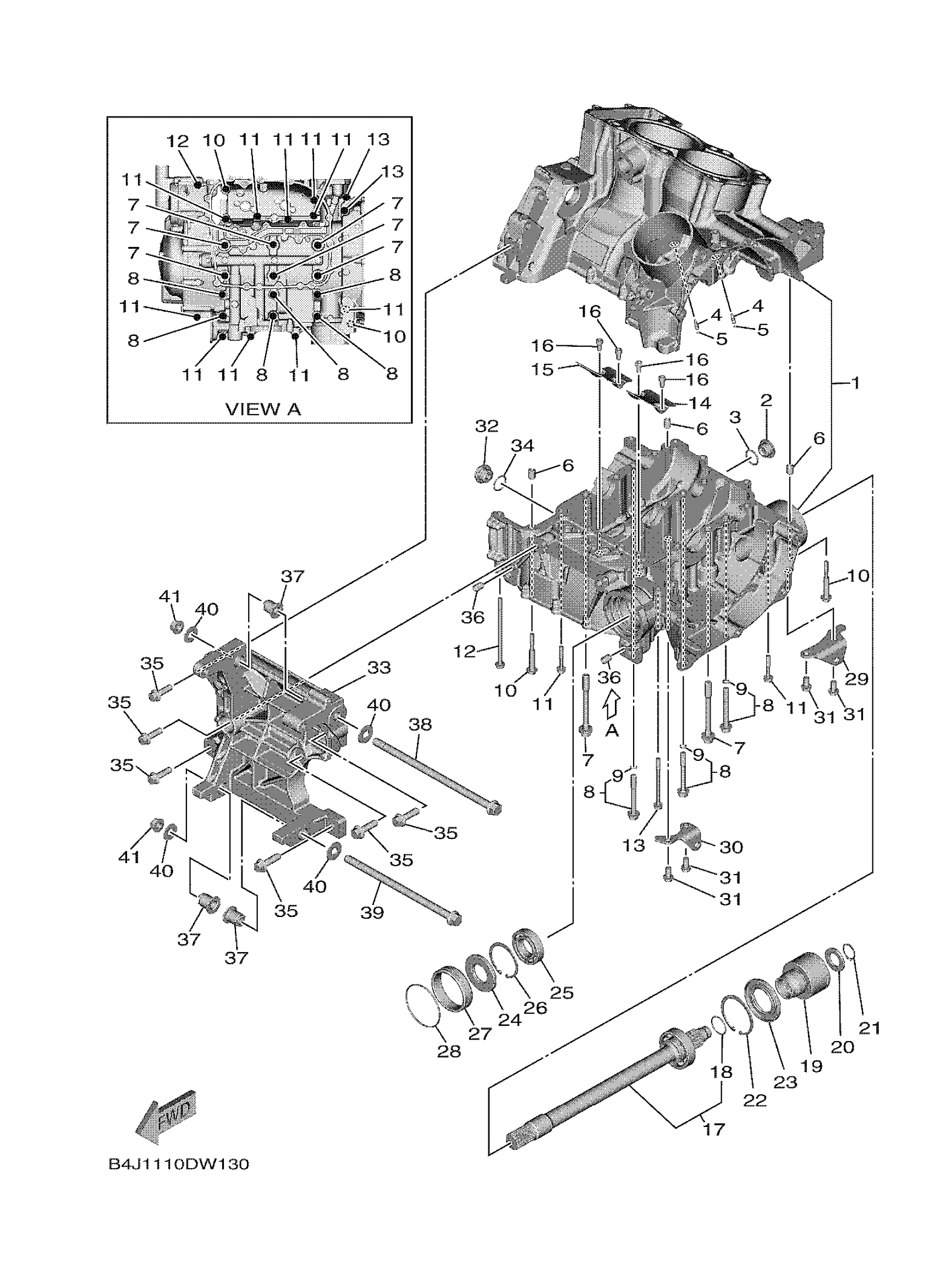

Yamaha YXF10WRZTM (WOLVERINE RMAX4 1000 COMPACT XT R) BLU7 2026 CRANKCASE Diagram
#
1
CRANKCASE ASSY
B1R-E5100-09-00
Unavailable
2
PLUG
4H7-15189-00-00
$30.99
3
O-RING
93210-20802-00
$0.86
4
NOZZLE 3
5EB-15155-00-00
$14.49
5
O-RING (210)
93210-04092-00
$3.76
6
PIN, DOWEL(3VD)
99530-10114-00
$2.55
7
BOLT, WITH WASHER
90119-10069-00
$13.99
8
BOLT, CRANKCASE JOURNAL
BG4-15156-00-00
$7.49
9
O-RING (11M)
93210-07540-00
$7.49
10
BOLT
90109-06100-00
$8.49
11
BOLT, FLANGE
95817-06040-00
$5.60
12
BOLT, FLANGE
95812-06120-00
Unavailable
13
BOLT, FLANGE
90105-06202-00
$1.91
14
PLATE, BAFFLE 1
BG4-15123-00-00
$5.60
15
PLATE, BUFFLE 2
B1R-15124-00-00
$10.49
16
BOLT,SOCKET
91317-06012-00
Unavailable
17
MIDDLE DRIVEN SHAFT ASSY
B1R-1755A-00-00
Unavailable
18
O-RING (M01)
93210-25755-00
Unavailable
19
COUPLING
B4D-E7832-00-00
Unavailable
20
WASHER, PLATE
90201-22026-00
Unavailable
21
CIRCLIP(1EY)
99009-22400-00
Unavailable
22
CIRCLIP(MF1)
99009-62500-00
Unavailable
23
OIL SEAL
93102-40031-00
Unavailable
24
OIL SEAL
93102-30018-00
Unavailable
25
BEARING(2HR)
93306-00612-00
Unavailable
26
CIRCLIP
99009-55500-00
Unavailable
27
COLLAR
90387-61001-00
Unavailable
28
O-RING (4U8)
93210-63442-00
Unavailable
29
BRACKET
B4D-E4867-00-00
Unavailable
30
BRACKET 2
B4D-E4868-00-00
Unavailable
31
BOLT, FLANGE
95022-08016-00
Unavailable
32
PLUG
B1R-15189-00-00
Unavailable
33
ADAPTER
B4J-17848-00-00
Unavailable
34
O-RING
93210-20006-00
Unavailable
35
BOLT, FLANGE
95812-10035-00
Unavailable
36
PIN, DOWEL(3VD)
99530-10114-00
$2.55
37
BOLT
8FG-2149C-00-00
Unavailable
38
BOLT, FLANGE
90105-12086-00
Unavailable
39
BOLT, FLANGE
90105-12044-00
Unavailable
40
WASHER, PLATE(8CJ)
90201-120T5-00
Unavailable
41
95702-12500
95702-12500-00
Unavailable
