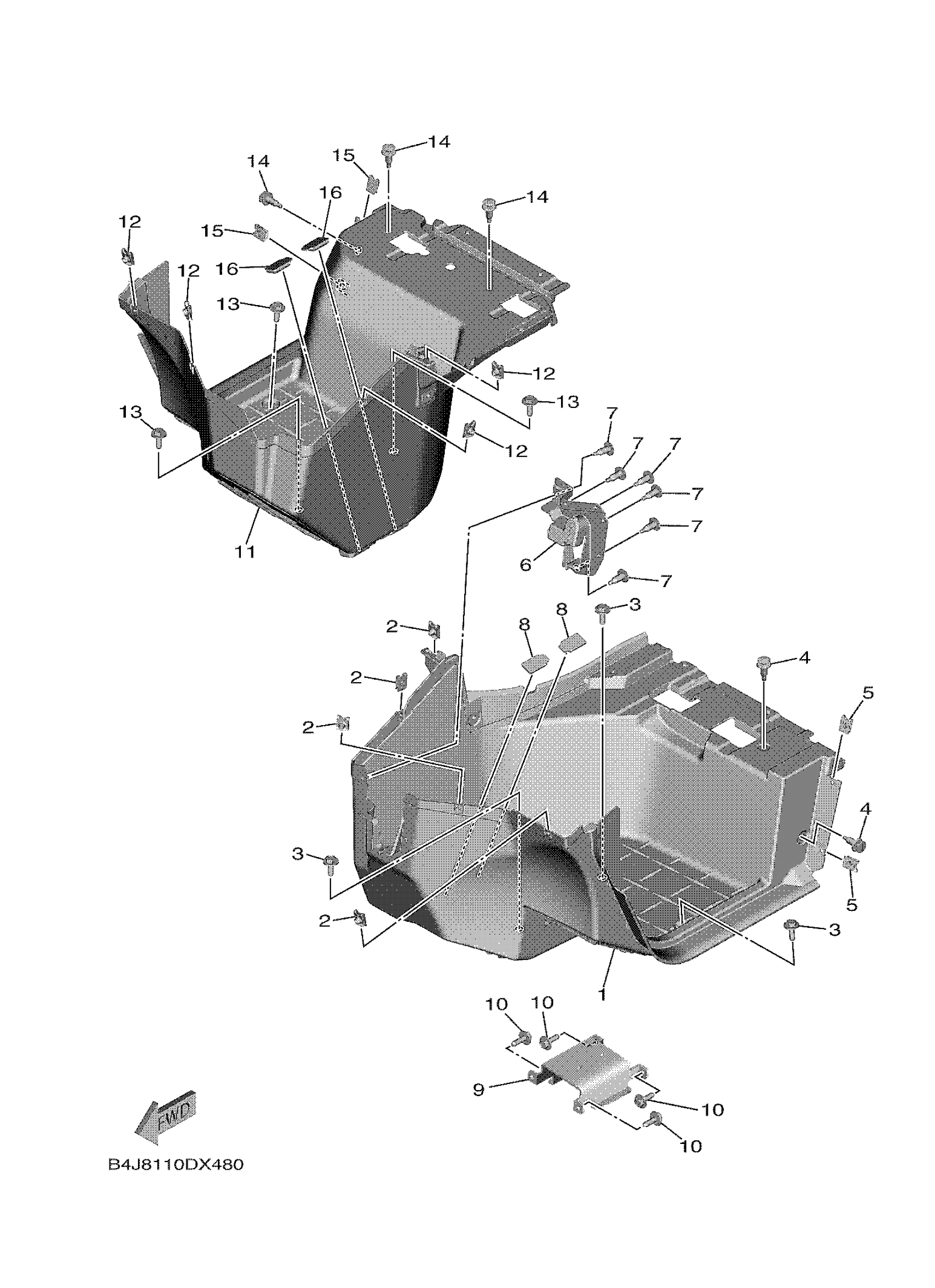

Yamaha YXF10WRZSB (WOLVERINE RMAX4 1000 COMPACT XT R) BLU1 2025 STAND & FOOTREST Diagram

#

Description
Price

1

FOOTREST 1

BG4-F7411-00-00

$120.15

2

NUT, SPRING

90183-062A1-00

$1.75

3

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

4

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

5

NUT, SPRING

90183-062A1-00

$1.75

6

COVER, DUST

BG4-F7286-00-00

$8.14

7

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

8

PLUG, HOLE

BG4-F312G-00-00

$1.51

9

BRACKET, FOOTREST

B4J-F7452-00-00

Unavailable

10

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

11

FOOTREST 2

BG4-F7421-01-00

$81.83

12

NUT, SPRING

90183-062A1-00

$1.75

13

BOLT, SPECIAL 1

JW1-K6179-01-00

$1.15

14

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

15

NUT, SPRING

90183-062A1-00

$1.75

16

PLUG, HOLE

BG4-F312G-00-00

$1.51
