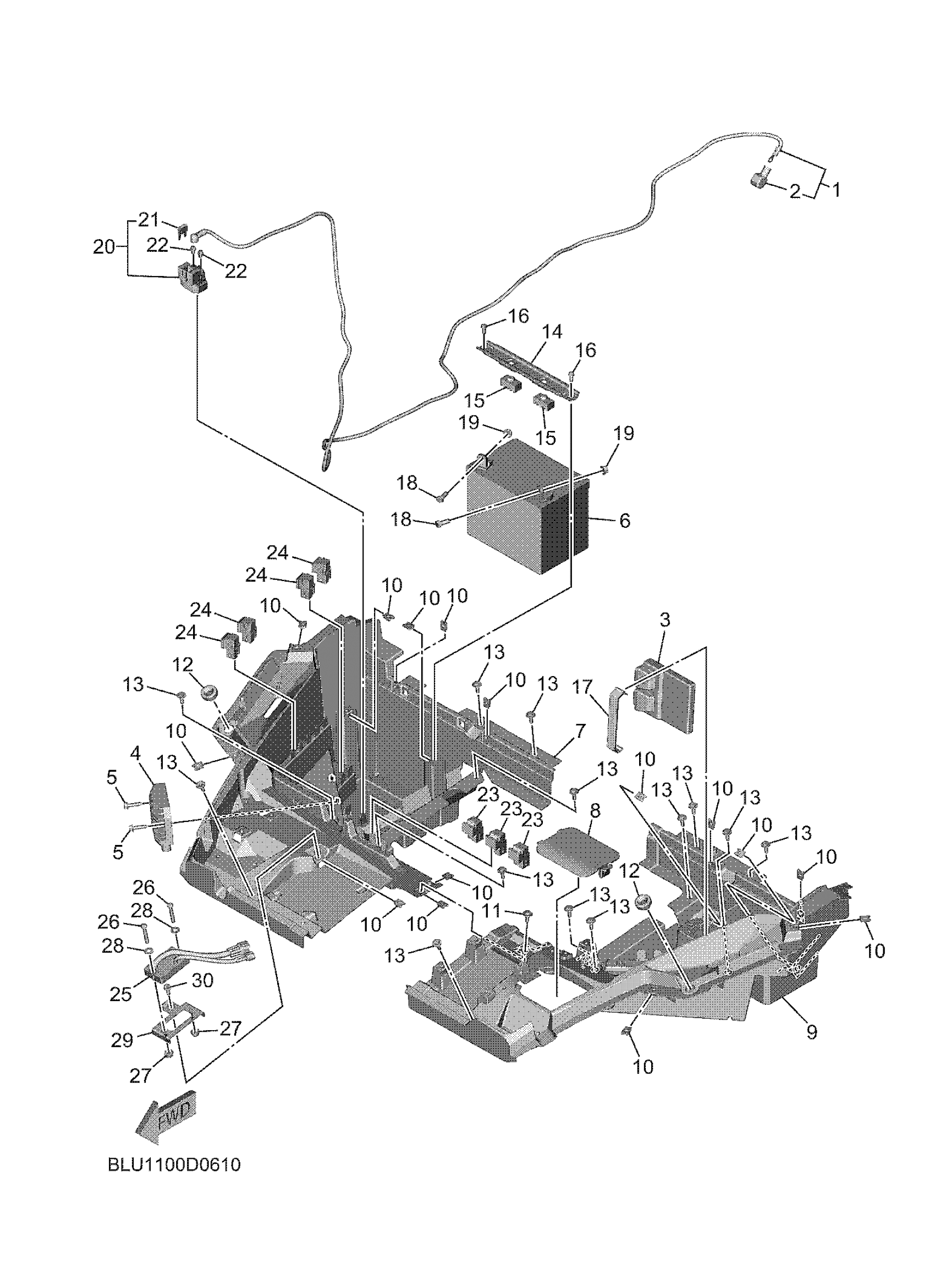

Yamaha YXF10WRZSB (WOLVERINE RMAX4 1000 COMPACT XT R) BLU1 2025 ELECTRICAL 2 Diagram

#

Description
Price

1

CORD, STARTER MOTOR

BKP-81815-00-00

Unavailable

2

CAP

4B5-81871-00-00

Unavailable

3

ENGINE CONTROL UNIT ASSY

BKP-8591A-01-00

Unavailable

4

RECTIFIER & REGULATOR ASSY

BFN-81960-00-00

Unavailable

5

BOLT, FLANGE

90105-06833-00

$2.28

6

11-U1LD GS BATTERY

11U-1LD00-00-00

Unavailable

7

BOX, BATTERY 1

B4J-H212B-01-00

$37.99

8

COVER 1

B4J-H246B-01-00

$3.88

9

PANEL, SWITCH

B4J-H2565-01-00

$62.99

10

NUT, SPRING

90183-062A1-00

$1.96

11

BOLT, WITH WASHER

90119-06226-00

$8.49

12

GROMMET

90480-16807-00

$1.11

13

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

14

BRACKET, BATTERY

2HC-H2128-00-00

$10.49

15

PAD, SEAT

3C3-24741-00-00

$9.99

16

BOLT, FLANGE

95022-06014-00

Unavailable

17

BAND, BATTERY

5JJ-82131-00-00

Unavailable

18

BOLT(6TD)

97080-08020-00

Unavailable

19

NUT

90179-08015-00

Unavailable

20

STARTER RELAY ASSY (RC19-080A)

5B4-81940-00-00

Unavailable

21

FUSE (10A)

42X-82151-00-00

Unavailable

22

BOLT, FLANGE

95022-06008-00

Unavailable

23

RELAY ASSY

5DM-81950-01-00

Unavailable

24

RELAY ASSY (8DM-11)

8DM-81950-11-00

Unavailable

25

CONTROL UNIT ASSY

BKP-H3677-00-00

Unavailable

26

SCREW, PAN HEAD

98517-04025-00

Unavailable

27

NUT, FLANGE

95707-04500-00

Unavailable

28

WASHER(6E1)

92907-04200-00

Unavailable

29

BRACKET

BKP-H350E-00-00

Unavailable

30

BOLT, FLANGE DEEP RECESS

95D32-06016-00

Unavailable
