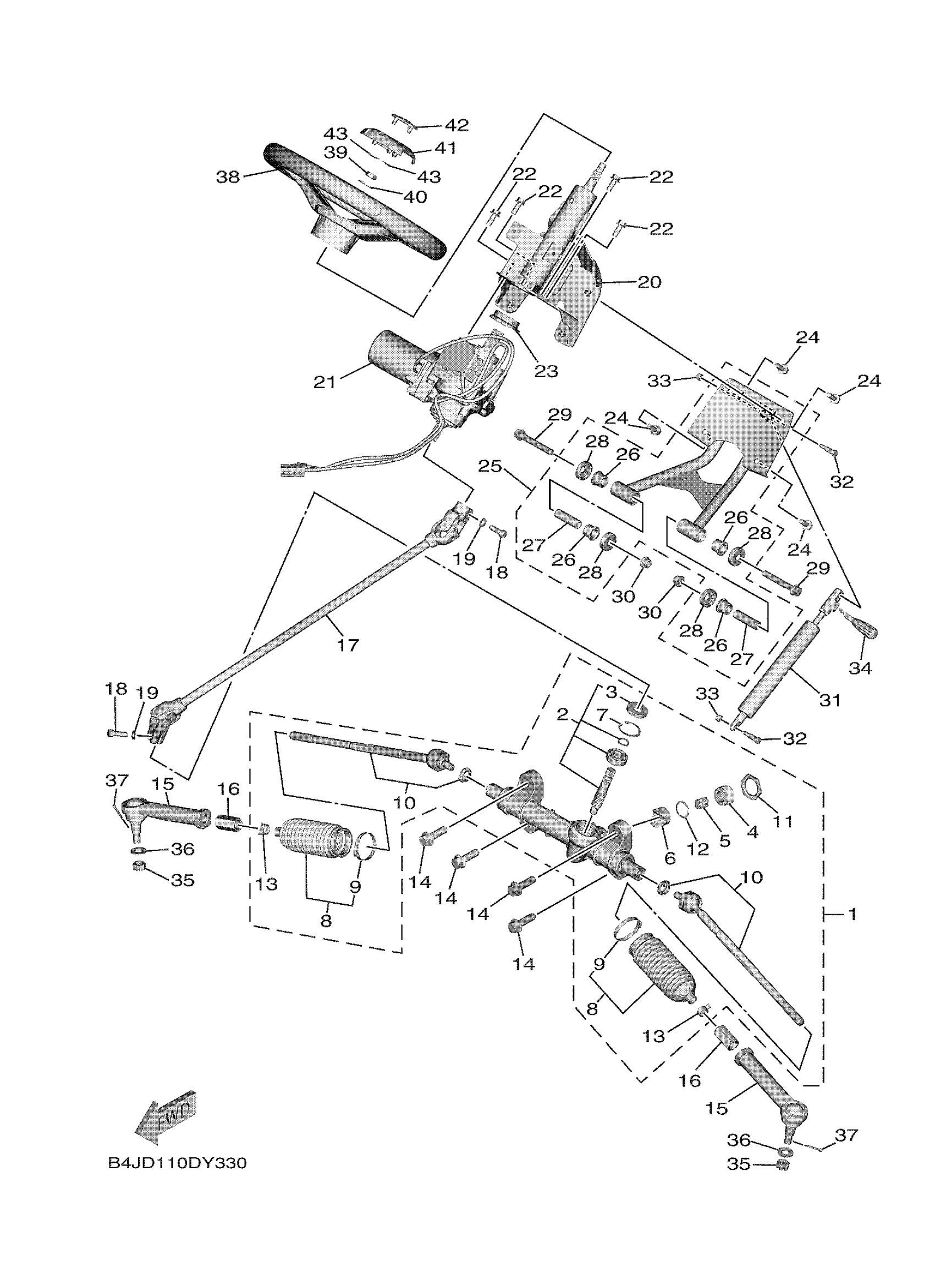

Yamaha YXF10WRZRD (WOLVERINE RMAX4 XT R) B4JK 2024 STEERING Diagram
#
4
COVER,ADJUST
1XD-F387G-00-00
Unavailable
5
SPRING,PRESSURE
1XD-F387K-00-00
Unavailable
6
PAD,PRESSURE
1XD-F387F-00-00
Unavailable
8
SEAL 1 W/ BAND SET OF 2
1XD-F1208-00-00
Unavailable
11
LOCK ASSY
1XD-F178K-00-00
Unavailable
16
NUT 1
2HC-F3833-00-00
Unavailable
17
STEERING SHA
B4J-F3840-02-00
Unavailable
18
91312-08030
91312-08030-00
Unavailable
19
WASHER, PLATE(3XP)
90201-083P5-00
Unavailable
20
COLUMN, STEERING 2
B4J-23813-01-00
Unavailable
21
POWER STRG. ACTUATOR ASSY
B4J-238B0-06-00
Unavailable
22
BOLT, FLANGE DEEP RECESS
95D32-08020-00
Unavailable
23
COVER, DUST
2MB-2384L-00-00
Unavailable
24
BOLT, FLANGE DEEP RECESS
95D32-08020-00
Unavailable
25
TOP MOUNT COMP.
BG4-F33B0-02-00
Unavailable
26
BUSH, SOLID(3GG)
90381-15088-00
Unavailable
27
COLLAR
90387-10111-00
Unavailable
28
COVER, THRUST 1
1UY-23517-01-00
Unavailable
29
BOLT, FLANGE
90105-10267-00
Unavailable
30
NUT, S/L FLANGE
95602-10200-00
Unavailable
31
SPRING, DAMPER
B4J-F3855-01-00
Unavailable
32
BOLT
90109-06255-00
Unavailable
33
NUT, NYLON
95707-06300-00
Unavailable
34
HANDLE
B4J-F4812-00-00
Unavailable
35
NUT, CASTLE
90171-12001-00
Unavailable
36
WASHER, PLATE
90201-12045-00
Unavailable
37
PIN, COTTER
91490-20025-00
Unavailable
38
WHEEL,STEERING
2HC-F3838-02-00
Unavailable
39
NUT, SELF-LOCKING
90185-12007-00
Unavailable
40
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
41
COVER, STEERING
2HC-F3818-00-00
Unavailable
42
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
43
NUT, SPRING
90183-06071-00
Unavailable
