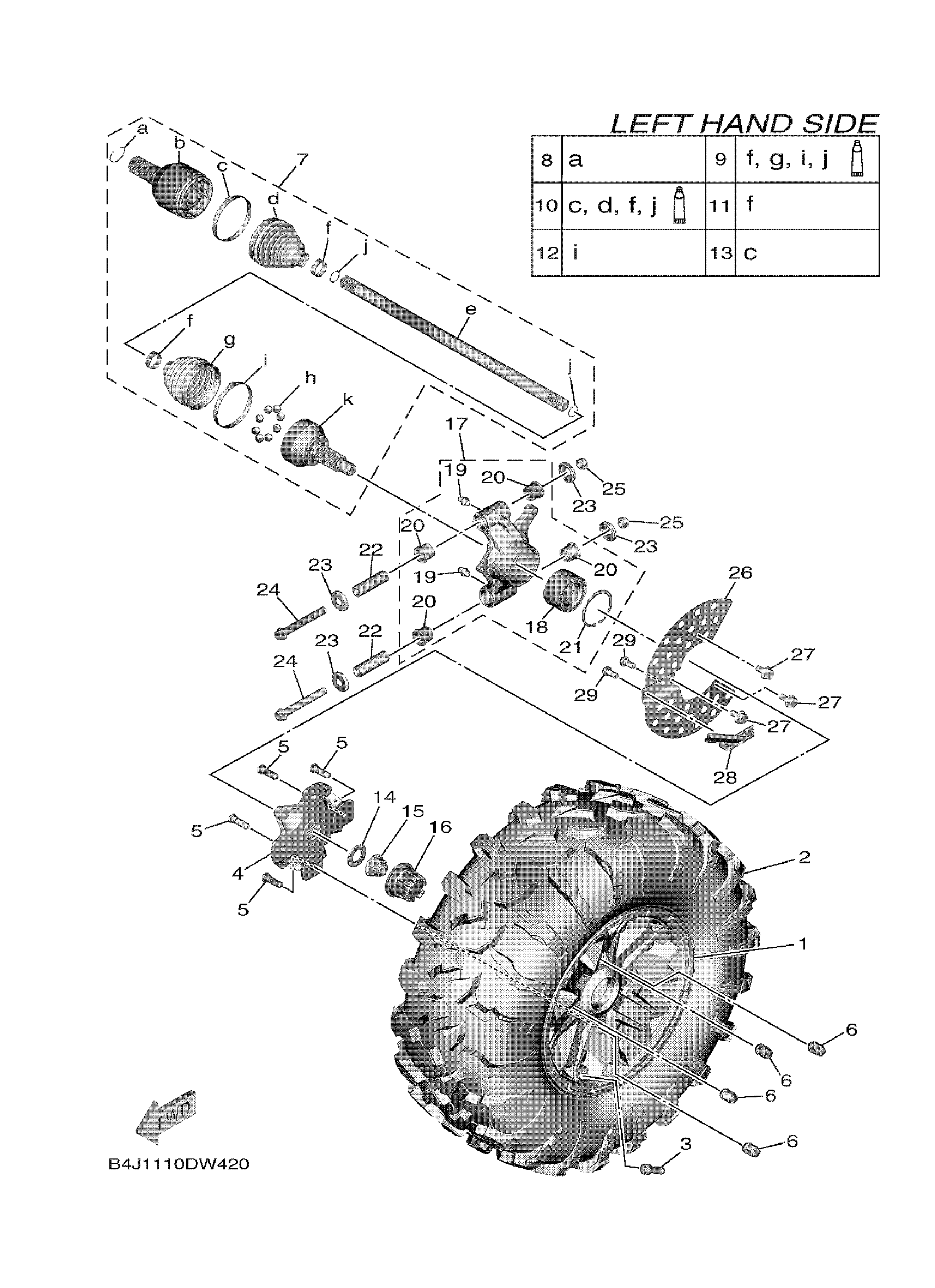

Yamaha YXF10WRZRD (WOLVERINE RMAX4 XT R) B4JK 2024 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

B4J-F5307-00-00

$350.47

2

TIRE

94111-14813-00

$407.99

3

VALVE, RIM

93900-00812-00

Unavailable

4

HUB, FRONT

B4J-F5111-02-00

$86.32

5

BOLT, SERRATION

90114-12005-00

$2.52

6

NUT, CROWN

90176-12801-00

Unavailable

7

REAR DRIVE SHAFT ASSY

B4J-F531H-03-00

Unavailable

8

CLIP, SPRING

B4J-F536E-00-00

Unavailable

9

BOOT SET (BALL JOI

B4J-F530X-00-00

$70.92

10

BOOT SET(DOUBLE OF

B4J-F530Y-00-00

$136.58

11

BAND

B4J-F5719-00-00

$7.77

12

BAND

B4J-F639A-00-00

$4.59

13

BAND

B4J-F6293-00-00

$4.45

14

WASHER, PLATE

90201-25023-00

$8.51

15

NUT

90179-24006-00

$12.65

16

CAP, WHEEL

2HC-F512A-00-00

Unavailable

17

REAR KNUCKLE ASSY

B4J-F530F-00-00

Unavailable

18

BEARING

93305-00801-00

Unavailable

19

NIPPLE, GREASE

93700-06M03-00

$7.40

20

BUSH, SOLID

90381-22001-00

Unavailable

21

CIRCLIP (70R)

93420-72065-00

$8.32

22

COLLAR

90387-14025-00

Unavailable

23

COVER, THRUST 1

BYP-23517-00-00

Unavailable

24

BOLT, FLANGE

90105-14017-00

Unavailable

25

NUT, SELF-LOCKING

90185-14010-00

Unavailable

26

RING, WHEEL RR. 1

2HC-F534C-00-00

Unavailable

27

BOLT, FLANGE

95817-06012-00

Unavailable

28

PLATE, GUIDE 1

2HC-F2341-00-00

Unavailable

29

BOLT, FLANGE

95817-06012-00

Unavailable
