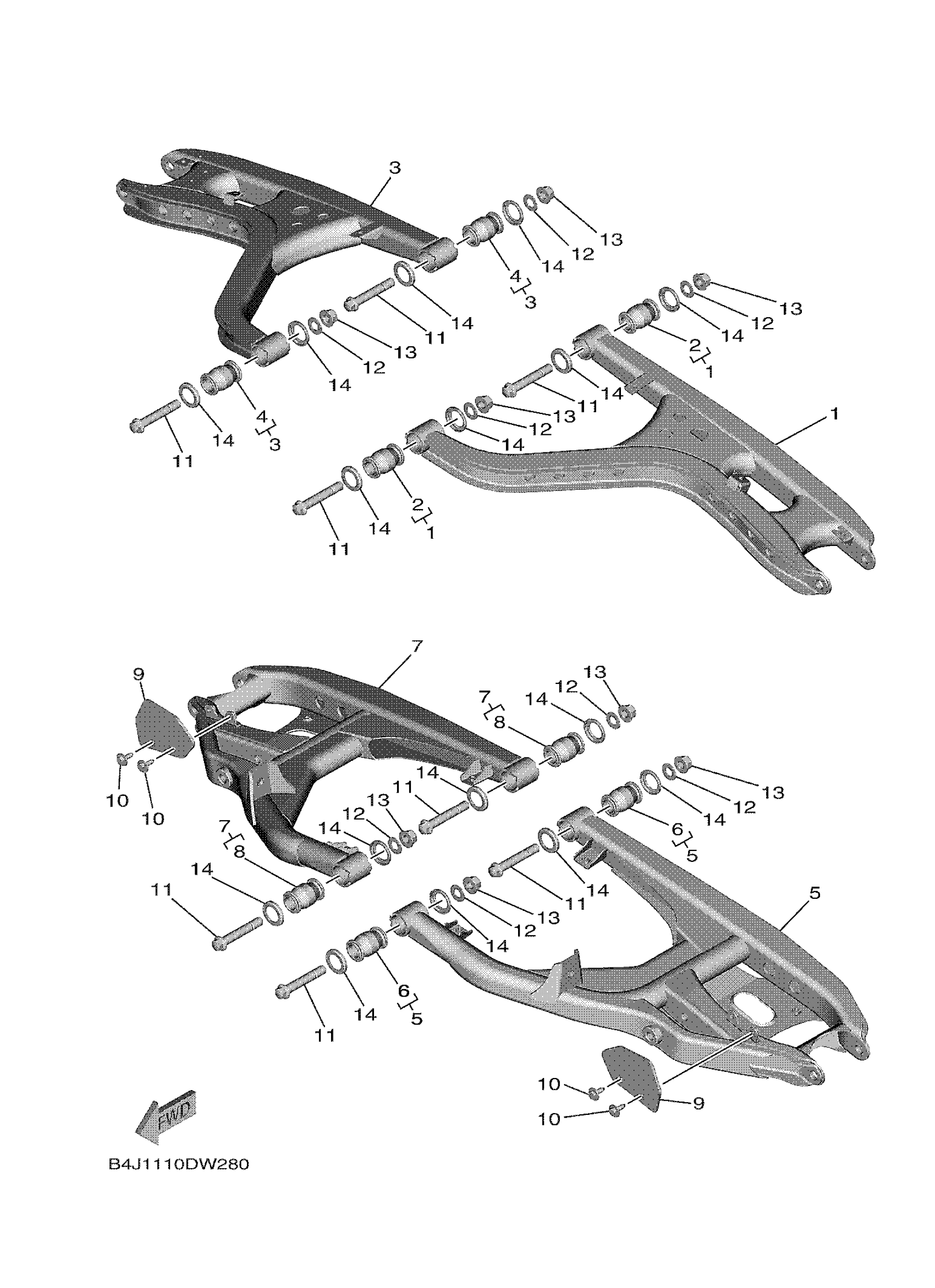

Yamaha YXF10WRZRD (WOLVERINE RMAX4 XT R) B4JK 2024 REAR ARM Diagram

#

Description
Price

1

RR. UPR. ARM COMP.

B4J-F2104-02-00

$108.98

2

BUSH

B4J-F3526-01-00

Unavailable

3

RR. UPR. ARM COMP.

B4J-F2105-02-00

$109.52

4

BUSH

B4J-F3526-01-00

Unavailable

5

RR. LWR. ARM COMP.

B4J-F2106-03-00

Unavailable

6

BUSH

B4J-F3526-01-00

Unavailable

7

RR. LWR. ARM COMP.

B4J-F2107-03-00

$149.67

8

BUSH

B4J-F3526-01-00

Unavailable

9

COVER, THRUST 1

2HC-F2128-10-00

$1.97

10

BOLT, WITH WASHER

90119-06226-00

$2.12

11

BOLT, FLANGE

90105-12095-00

$7.16

12

WASHER, PLATE

90201-12045-00

$4.81

13

NUT, SELF-LOCKING

90185-12002-00

$9.38

14

COVER, THRUST 1

B4J-F3517-00-00

$0.99
