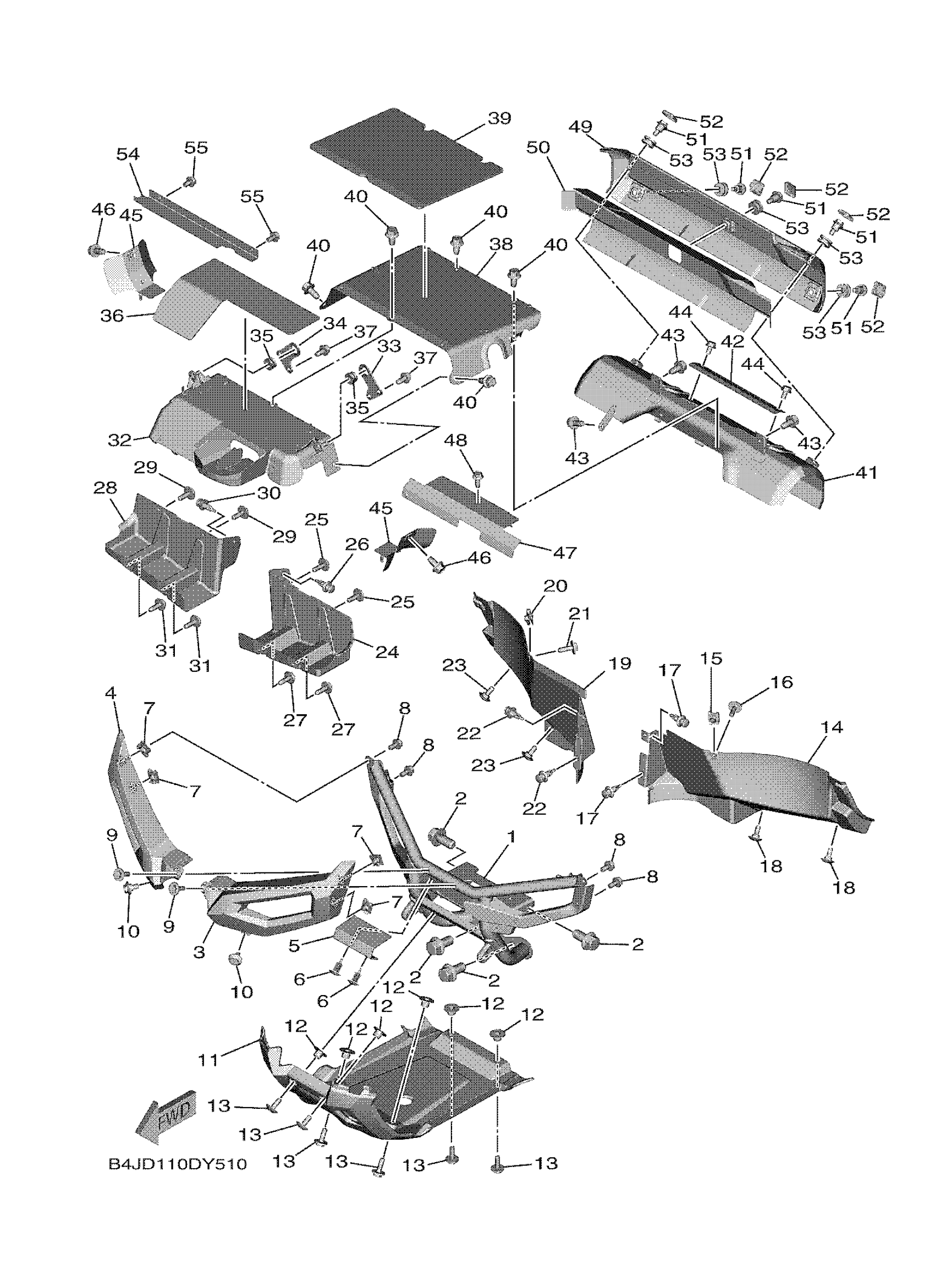

Yamaha YXF10WRZRD (WOLVERINE RMAX4 XT R) B4JK 2024 GUARD Diagram
#
1
BAR, CARRY FRONT
B4J-F845N-02-00
$295.99
2
BOLT, FLANGE
95812-12025-00
$9.49
3
COVER 1
B4J-F842M-00-00
Unavailable
4
COVER 2
B4J-F842N-00-00
$15.99
5
COVER, FRONT
B4J-F286H-10-00
$4.08
6
RIVET(81E)
90269-05055-00
$8.49
7
NUT, SPRING
90183-062A1-00
$1.96
8
BOLT, FLANGE
95817-06012-00
$1.43
9
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
10
BOLT
90109-06202-00
$7.49
11
COVER, UNDER
B4J-F8385-01-00
$68.99
12
COLLAR (4N0)
90387-071E0-00
$7.49
13
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06087-00
$5.60
14
GUARD 1
BG4-F2361-01-00
$18.99
15
NUT, SPRING
90183-062A1-00
$1.96
16
BOLT, WITH WASHER
90119-06226-00
Unavailable
17
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
18
BOLT
90109-06334-00
Unavailable
19
GUARD 2
BG4-F2362-01-00
Unavailable
20
NUT, SPRING
90183-062A1-00
$1.96
21
BOLT, WITH WASHER
90119-06226-00
Unavailable
22
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
23
BOLT
90109-06334-00
Unavailable
24
MUD GUARD 1
BG4-F2327-00-00
Unavailable
25
BOLT, WITH WASHER
90119-06226-00
Unavailable
26
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
27
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
28
MUD GUARD 2
BG4-F2328-00-00
Unavailable
29
BOLT, WITH WASHER
90119-06226-00
Unavailable
30
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
31
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
32
INSULATOR, HEAT
B4J-F2898-10-00
Unavailable
33
STAY, 4
B4J-F846W-00-00
Unavailable
34
STAY 5
B4J-F846X-00-00
Unavailable
35
GROMMET
90480-18019-00
Unavailable
36
DAMPER 1
B4J-F8415-00-00
Unavailable
37
BOLT, FLANGE
90105-08867-00
Unavailable
38
SHIELD, HEAT
B4J-F3892-02-00
Unavailable
39
DAMPER 3
B4J-F8425-00-00
Unavailable
40
BOLT, FLANGE
90105-08867-00
Unavailable
41
INSULATOR, MOUNTIN
B4J-F2891-11-00
Unavailable
42
INSULATOR, MOUNTIN
BG4-F2894-00-00
Unavailable
43
BOLT, FLANGE
90105-08867-00
Unavailable
44
BLOT, FLANGE DEEP RECESS
95D32-06010-00
Unavailable
45
PROTECTOR 1
BAR-F2825-00-00
Unavailable
46
BOLT, FLANGE
90105-08867-00
Unavailable
47
PROTECTOR 1
B4J-F2825-02-00
Unavailable
48
BOLT, FLANGE
90105-06831-00
Unavailable
49
PROTECTOR, MUFFLER
BKP-F194H-00-00
Unavailable
50
SHEET, INSULATOR
B4J-HA7E0-00-00
Unavailable
51
BOLT
90109-06214-00
Unavailable
52
CAP
2MB-F143A-00-00
Unavailable
53
GROMMET
90480-12025-00
Unavailable
54
PROTECTOR 2
B4J-F834W-01-00
Unavailable
55
BLOT, FLANGE DEEP RECESS
95D32-06010-00
Unavailable
