- YXF10WRZRD (WOLVERINE RMAX4 XT R) B4JK 2024
FRONT WHEEL 2

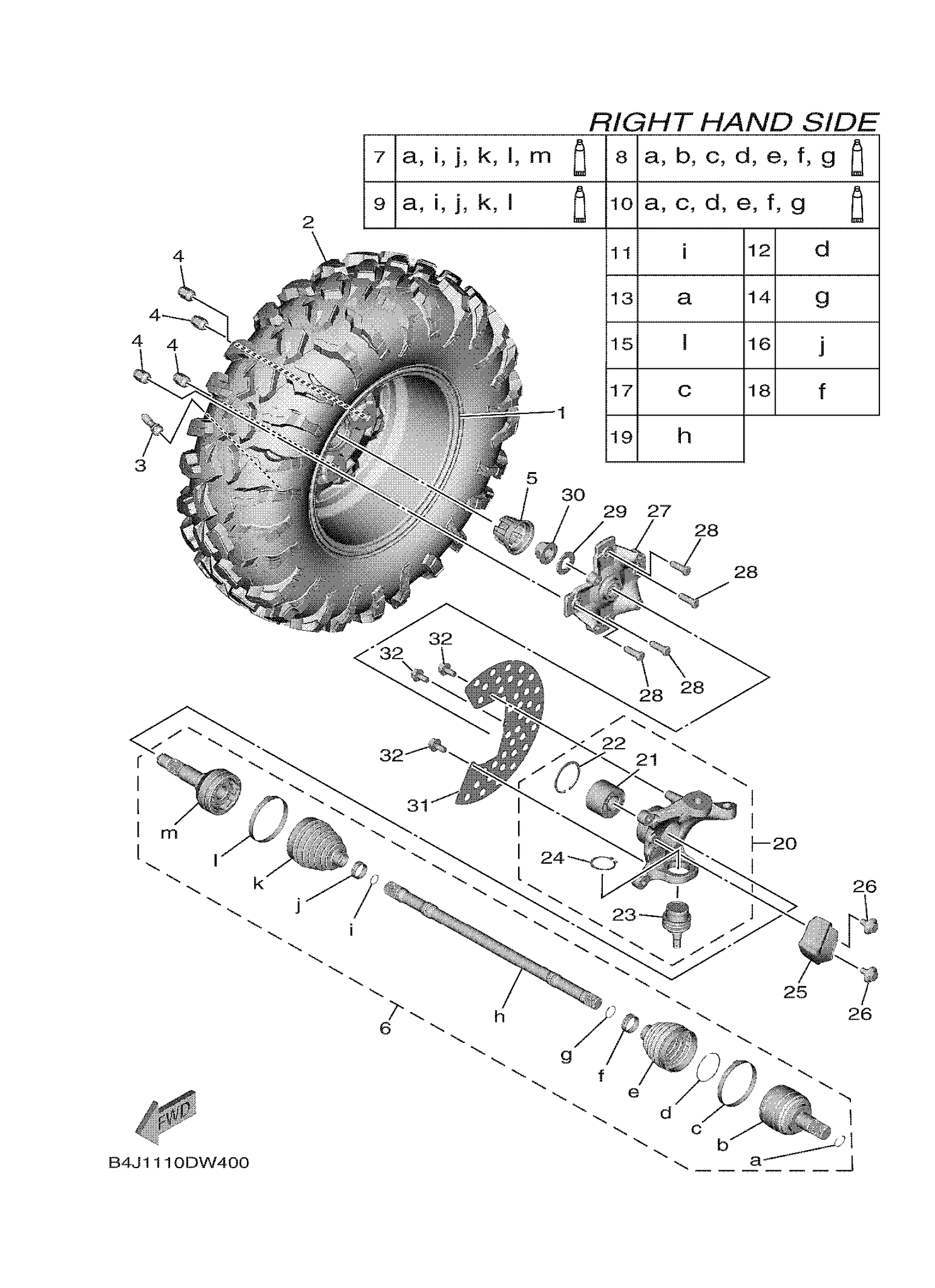

Yamaha YXF10WRZRD (WOLVERINE RMAX4 XT R) B4JK 2024 FRONT WHEEL 2 Diagram
#
1
CAST WHEEL, FRONT
B4J-F5168-00-00
$285.99
2
29X9R14 ML19A 8PR TL
94109-14819-00
$364.99
3
VALVE, RIM
93900-00812-00
Unavailable
4
NUT, CROWN
90176-12801-00
$3.23
5
CAP, WHEEL
2HC-F512A-00-00
$3.02
6
DRIVE SHAFT ASSY
B4J-2518F-02-00
$240.99
7
BALL JOINT SET
B4J-2510F-02-00
Unavailable
8
DOUBLE OFF SET JOI
B4J-2510J-02-00
Unavailable
9
BOOT SET (BALL JOI
B4J-2510G-02-00
$53.99
10
BOOT SET(DOUBLE OF
B4J-2510H-02-00
$49.99
11
RING 1
BG4-25185-00-00
$4.56
12
CLIP, SPRING
2HC-2536E-00-00
$4.99
13
CLIP, SPRING
16B-2536E-00-00
$4.63
14
SNAP RING
2HC-2512J-00-00
$4.58
15
BOOT BAND(DOUBLE OFFSET JOINT)
B4J-2511H-00-00
$8.49
16
BOOT BAND (BALL JOINT)
B4J-2511G-00-00
Unavailable
17
BAND
2HC-26293-00-00
Unavailable
18
BAND
2HC-25719-00-00
Unavailable
19
SHAFT
B4J-2518E-00-00
Unavailable
20
STEERING KNUCKLE A
B4J-F3502-00-00
Unavailable
21
BEARING
93305-00604-00
Unavailable
22
CIRCLIP(MF1)
99009-62500-00
Unavailable
23
BALL JOINT 2
2HC-23579-00-00
Unavailable
24
CIRCLIP
93410-42096-00
Unavailable
25
COVER, UNDER 2
B4J-F3133-00-00
Unavailable
26
BOLT
90109-06202-00
Unavailable
27
HUB, FRONT
B5H-F5111-02-00
Unavailable
28
BOLT, SERRATION
90114-12005-00
Unavailable
29
WASHER, PLATE
90201-25023-00
Unavailable
30
NUT
90179-24006-00
Unavailable
31
RING, WHEEL 1
2HC-F514A-00-00
Unavailable
32
BOLT, FLANGE
95817-06012-00
Unavailable
