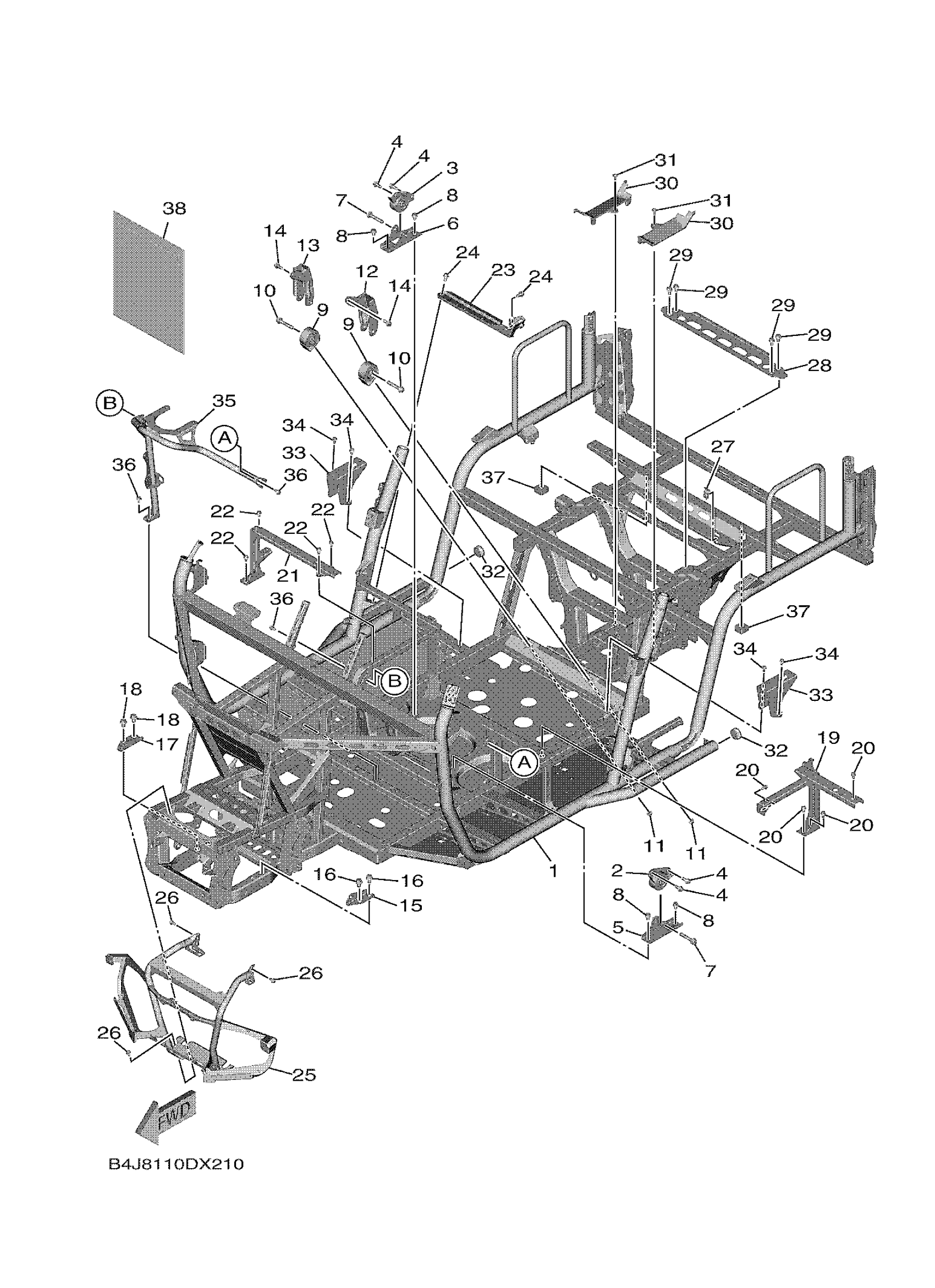

Yamaha YXF10WRZRD (WOLVERINE RMAX4 XT R) B4JK 2024 FRAME Diagram
#
1
FRAME COMP.
B4J-F1110-00-00
Unavailable
2
ENGINE BRACKET COMP.
BG4-21410-00-00
Unavailable
3
ENGINE BRACKET COMP. 2
BG4-21420-00-00
Unavailable
4
BOLT, FLANGE DEEP RECESS
95D32-10025-00
Unavailable
5
BRACKET 5
BG4-F161F-00-00
$12.49
6
BRACKET 3
BG4-F161A-00-00
$11.49
7
BOLT, FLANGE DEEP RECESS
95D32-12065-00
Unavailable
8
BOLT, FLANGE DEEP RECESS
95D32-10016-00
$1.06
9
BRACKET, ENGINE 1
B4J-21490-10-00
Unavailable
10
BOLT, FLANGE DEEP RECESS
95D32-12065-00
Unavailable
11
NUT
90179-10033-00
Unavailable
12
SUPPORT, ENGINE
B4J-F1283-03-00
$30.99
13
SUPT., ENGINE 2
B4J-F1284-03-00
$33.99
14
BOLT, FLANGE DEEP RECESS
95D37-10025-00
$1.96
15
BRACKET 2
B4J-F1239-00-00
$3.50
16
BOLT, FLANGE
95812-12020-00
Unavailable
17
BRACKET
B4J-F1249-00-00
Unavailable
18
BOLT, FLANGE
95812-12020-00
Unavailable
19
LUG, SEAT RAIL LH.
BG4-F1143-10-00
Unavailable
20
BOLT, FLANGE
90105-08867-00
Unavailable
21
MEMBER, SEAT SUPPO
BG4-F255G-01-00
Unavailable
22
BOLT, FLANGE
90105-08867-00
Unavailable
23
BRACKET, LOCK 2
BG4-F287M-00-00
Unavailable
24
BOLT, FLANGE
95817-10020-00
Unavailable
25
DAMPER, BRACE ASSY
B4J-F110J-01-00
Unavailable
26
BOLT, FLANGE
90105-08867-00
Unavailable
27
STAY,MUFFLER 2
BG4-F1446-11-00
Unavailable
28
PROTECTOR 1
B4J-F834V-00-00
Unavailable
29
BOLT, FLANGE
95817-10020-00
Unavailable
30
COVER 3
2MB-F198J-01-00
Unavailable
31
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
32
PLUG (FRONT BUMPER)
5UG-F2417-00-00
Unavailable
33
BRACKET, FOOTREST
BG4-F144H-00-00
Unavailable
34
BOLT, FLANGE
90105-08867-00
Unavailable
35
REINFORCEMENT, FRA
BYP-F1986-00-00
Unavailable
36
BOLT, FLANGE
90105-08867-00
Unavailable
37
DAMPER 1
B4J-F2483-00-00
Unavailable
38
POUCH
1P0-F8186-01-00
Unavailable
