Description

Price

1

SENSOR, OXYGEN

1WS-8592A-10-00

$224.99

2

PLATE

B4J-E4255-00-00

$2.12

3

GASKET

B4J-11198-00-00

$5.49

4

WIRE, MINUS LEAD

B1R-82116-01-00

Unavailable

5

WIRE HARNESS ASSY

B4J-82590-01-00

Unavailable

6

FUSE

5JJ-82151-60-00

$7.99

7

FUSE (15A)

67F-82151-50-00

Unavailable

8

FUSE (7.5A-BL)

5JJ-82151-00-00

$6.99

9

. FUSE (10A)

67F-82151-40-00

Unavailable

10

SLOW BLOW FUSE

JR9-82151-00-00

$13.49

11

CIRCUIT BREAKER ASSY

5B4-82180-00-00

$43.99

12

THERMO SWITCH ASSY

5B4-82560-00-00

$56.99

13

FUSE (50A)

5JW-82151-10-00

$16.49

14

FUSE

5JJ-82151-20-00

$7.99

15

CLAMP

90464-48800-00

Unavailable

16

CLAMP(2TV)

90464-10112-00

Unavailable

17

CLAMP

90464-12830-00

Unavailable

18

CLAMP

90464-51800-00

Unavailable

19

CLAMP

90464-36008-00

Unavailable

20

CLAMP

1NS-F1338-00-00

Unavailable

21

CLAMP(JN6)

90464-40825-00

Unavailable

22

CLAMP

90464-76800-00

Unavailable

23

CLAMP

90464-10009-00

Unavailable

24

CONNECTOR

B4M-82378-00-00

Unavailable

25

CONNECTOR

B4J-82378-00-00

Unavailable

26

CONNECTOR

B4J-82378-10-00

Unavailable

27

CONNECTOR

8CR-82378-00-00

Unavailable

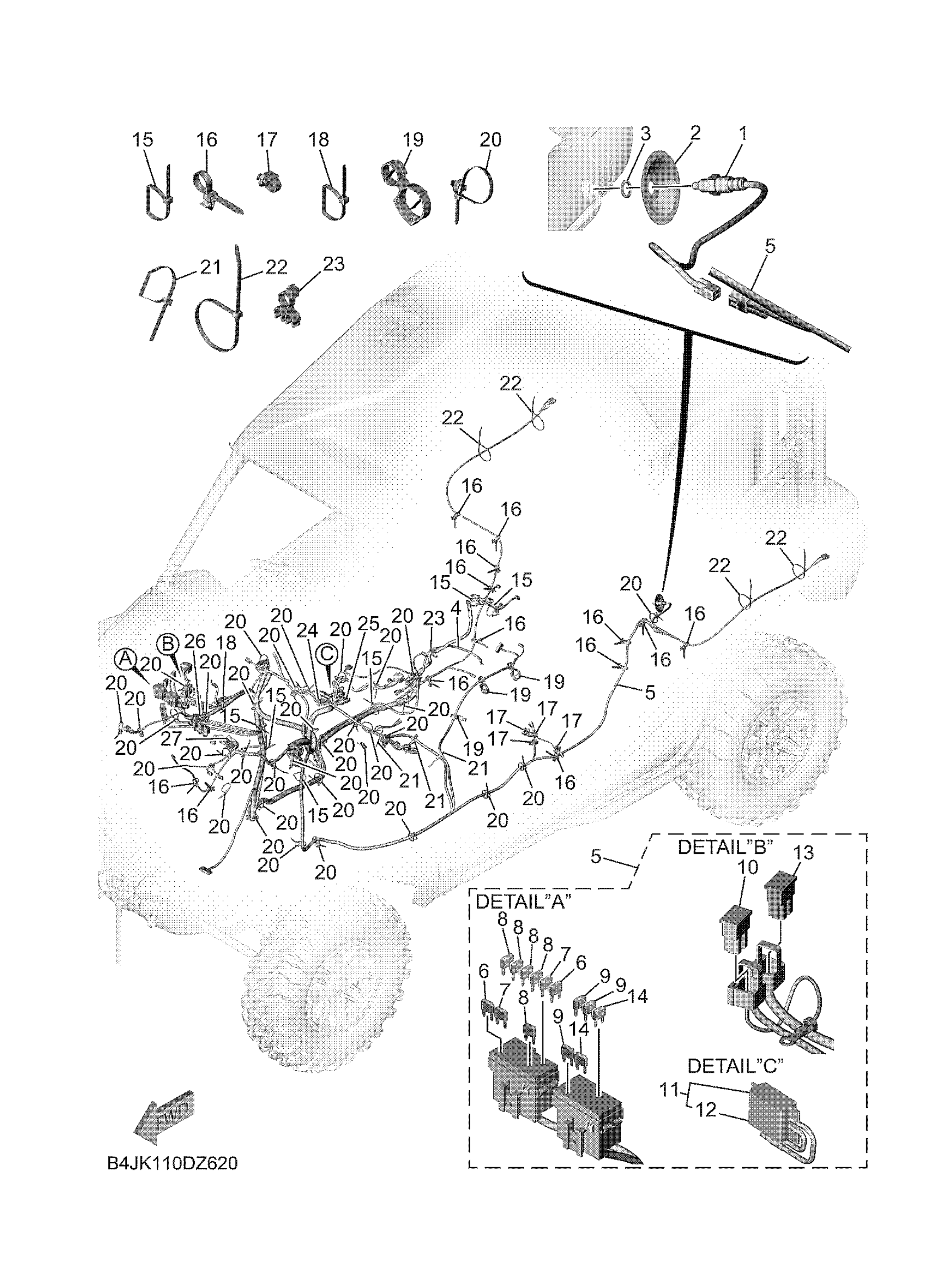

Yamaha YXF10WRZRD (WOLVERINE RMAX4 XT R) B4JK 2024 ELECTRICAL 3 Diagram

SENSOR, OXYGEN

PLATE

GASKET

WIRE, MINUS LEAD

WIRE HARNESS ASSY

FUSE

FUSE (15A)

FUSE (7.5A-BL)

. FUSE (10A)

SLOW BLOW FUSE

CIRCUIT BREAKER ASSY

THERMO SWITCH ASSY

FUSE (50A)

FUSE

CLAMP

CLAMP(2TV)

CLAMP

CLAMP

CLAMP

CLAMP

CLAMP(JN6)

CLAMP

CLAMP

CONNECTOR

CONNECTOR

CONNECTOR

CONNECTOR
