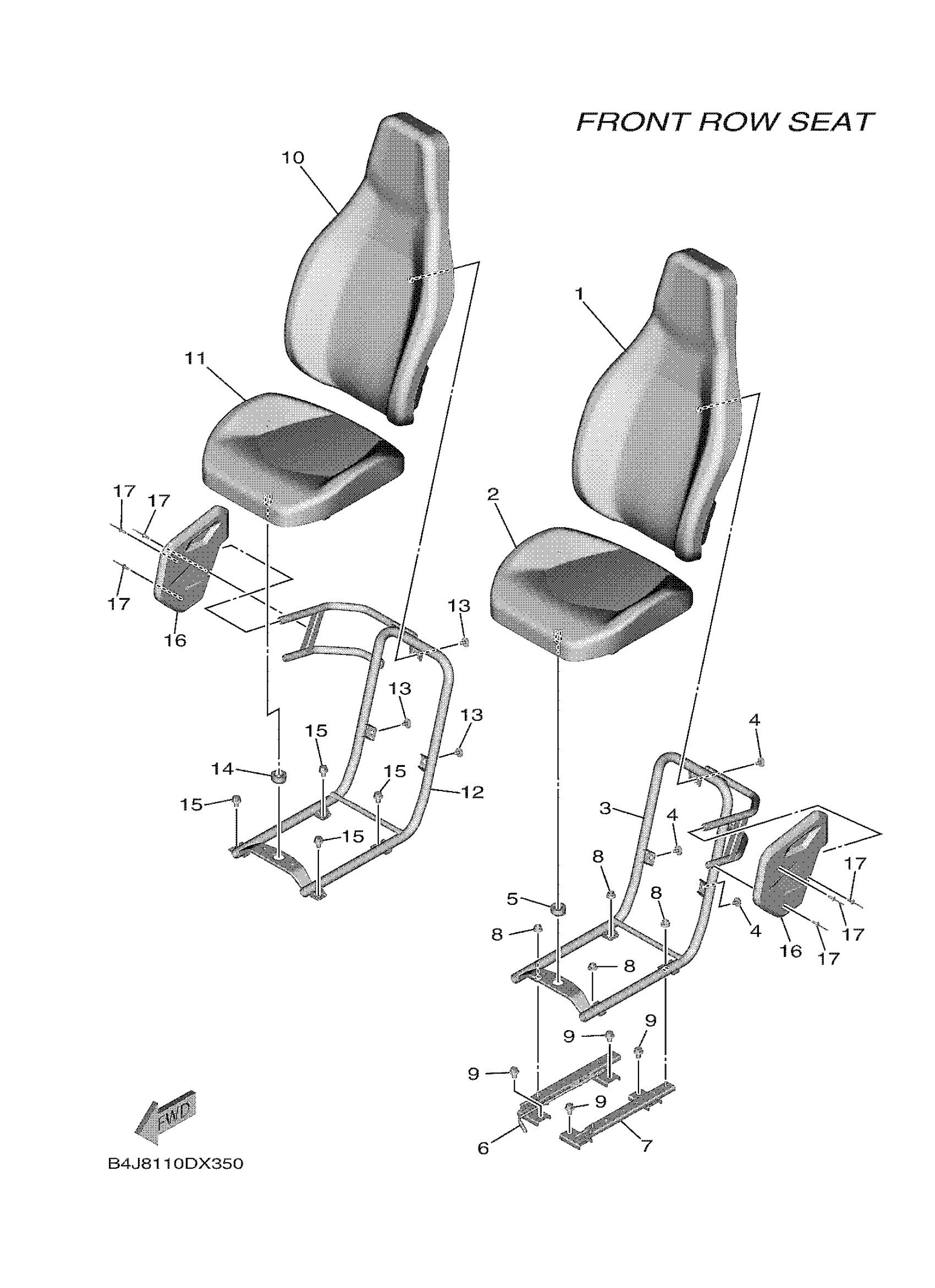

Yamaha YXF10WRZPT (WOLVERINE RMAX4 XTR) B4JD 2023 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

B4J-F4790-50-00

$281.21

2

SEAT ASSY 2

B4J-K8420-50-00

$182.79

3

FRAME, SEAT 1

B4J-F473C-02-00

$123.01

4

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

5

GROMMET

1XD-F4742-00-00

Unavailable

6

ADJUSTER ASSY

B4J-F7270-01-00

$46.40

7

ADJUSTER ASSY

B4J-F7260-01-00

$36.10

8

NUT, SELF-LOCKING

95602-08200-00

$2.65

9

BOLT, FLANGE

95817-08012-00

$3.81

10

SEAT BACK ASSY

B4J-F4790-50-00

$281.21

11

SEAT ASSY 2

B4J-K8420-50-00

$182.79

12

FRAME, SEAT 2

B4J-F473D-02-00

$131.59

13

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

14

GROMMET

1XD-F4742-00-00

Unavailable

15

BOLT, FLANGE

95817-08012-00

$3.81

16

COVER

B4J-F117F-00-00

Unavailable

17

RIVET, BLIND(J50)

90267-49152-00

Unavailable
