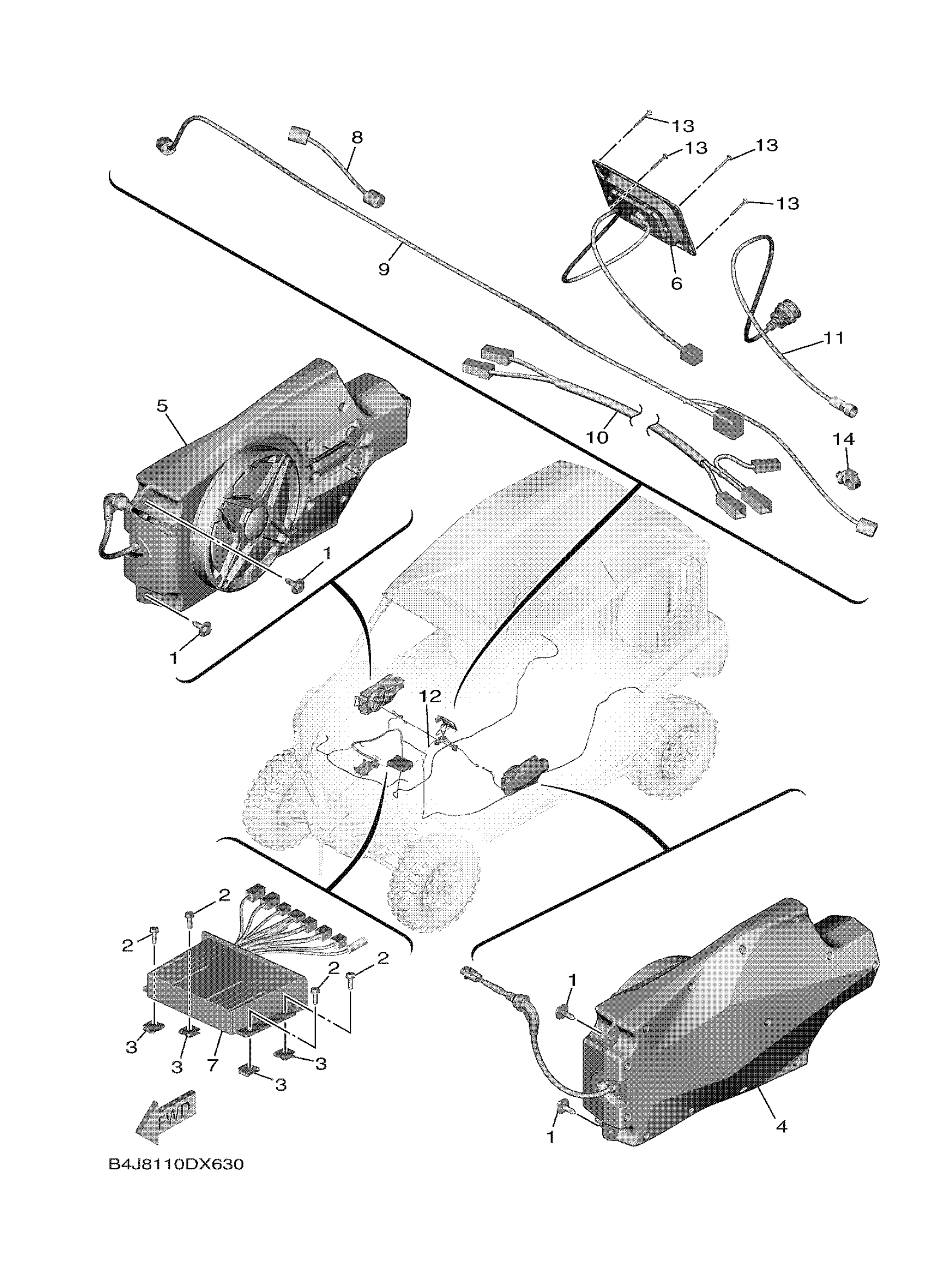

Yamaha YXF10WRZPT (WOLVERINE RMAX4 XTR) B4JD 2023 ELECTRICAL 4 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06226-00

$8.49

2

BOLT, SPECIAL

JW1-F3394-00-00

Unavailable

3

NUT, SPRING

90183-05008-00

$9.49

4

SPEAKER ASSY 1

B4J-H8160-V0-00

Unavailable

5

SPEAKER ASSY, 2

B4J-H8170-V0-00

Unavailable

6

RADIO ASSY

B4J-H8110-V0-00

Unavailable

7

AUDIO PILOT NUIT

BG4-H3391-V0-00

Unavailable

8

WIRE HARNESS ASSY

B4J-H2590-V0-00

Unavailable

9

WIRE HARNESS ASSY 1

B4J-H259L-V0-00

Unavailable

10

WIRE HARNESS ASSY 2

B4J-H259M-V0-00

Unavailable

11

LEAD, AUX

B4J-H21G1-V0-00

Unavailable

12

CABLE ANTENNA

BG4-H6268-V0-00

Unavailable

13

SCREW, SPECIAL

B4J-H3358-V0-00

Unavailable

14

CLAMP

90464-12830-00

$1.49
