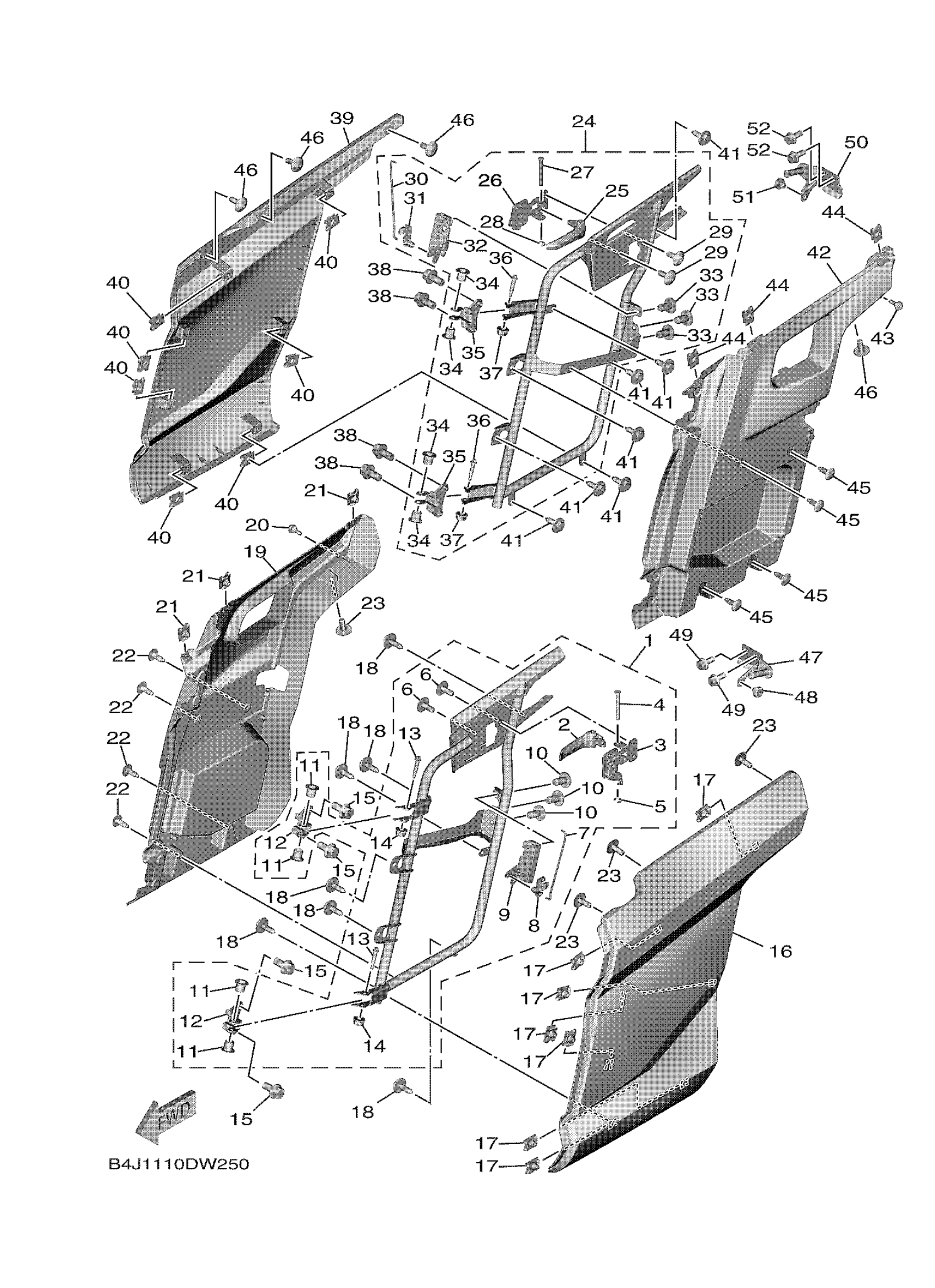

Yamaha YXF10WRLTL (WOLVERINE RMAX4 1000 COMPACT LE) BLUA 2026 SIDE COVER 2 Diagram

#

Description
Price

1

RR. DOOR COMP. LH

B4J-K8507-01-00

$207.99

2

LEVER, LATCH 1

2HC-F17N1-00-00

$7.49

3

BRACKET, ROTOR 1

B4J-F8465-00-00

$39.99

4

. PIN

90249-05801-00

Unavailable

5

CIRCLIP (EU0)

99080-04600-00

Unavailable

6

BOLT,HEX. SOCKET BUTTON

90111-06181-00

$1.38

7

ROD 1

B4J-F7277-00-00

$3.02

8

CLIP, CABLE

BG4-F2805-01-00

$2.17

9

LOCK ASSY

B4J-F16A0-02-00

$53.99

10

SCREW

90149-08805-00

$1.01

11

BUSH, SOLID

90381-08001-00

$5.60

12

HINGE

B4J-F1797-02-00

$13.49

13

BOLT

90109-068C9-00

$1.06

14

NUT, U FLANGE

95604-06200-00

$8.49

15

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

16

SIDE COVER COMP. 3

B4J-F17G0-90-00

Unavailable

17

NUT, SPRING

90183-062A1-00

Unavailable

18

BOLT, WITH WASHER

90119-06226-00

Unavailable

19

PNL, DOOR RR, LH

B4J-K8571-00-00

Unavailable

20

PLUG

90338-05009-00

Unavailable

21

NUT, SPRING

90183-062A1-00

Unavailable

22

RIVET(8AB)

90269-05073-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

24

RR. DOOR COMP. RH

B4J-K8508-01-00

Unavailable

25

LEVER, LATCH 1

2HC-F17N1-00-00

$7.49

26

BRACKET, ROTOR 2

B4J-F8466-00-00

Unavailable

27

. PIN

90249-05801-00

Unavailable

28

CIRCLIP (EU0)

99080-04600-00

Unavailable

29

BOLT,HEX. SOCKET BUTTON

90111-06181-00

$1.38

30

ROD 1

B4J-F7277-00-00

$3.02

31

CLIP, CABLE

BG4-F2805-01-00

$2.17

32

LOCK ASSY 2

B4J-F16B0-02-00

Unavailable

33

SCREW

90149-08805-00

$1.01

34

BUSH, SOLID

90381-08001-00

$5.60

35

HINGE

B4J-F1797-02-00

$13.49

36

BOLT

90109-068C9-00

$1.06

37

NUT, U FLANGE

95604-06200-00

$8.49

38

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

39

SIDE COVER COMP. 4

B4J-F17H0-90-00

Unavailable

40

NUT, SPRING

90183-062A1-00

Unavailable

41

BOLT, WITH WASHER

90119-06226-00

Unavailable

42

PNL. , DOOR RR. RH

B4J-K8572-00-00

Unavailable

43

PLUG

90338-05009-00

Unavailable

44

NUT, SPRING

90183-062A1-00

Unavailable

45

RIVET(8AB)

90269-05073-00

Unavailable

46

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

47

HOOK, SIDE COVER 3

B4J-F1333-00-00

Unavailable

48

PLUG

90338-10801-00

Unavailable

49

BOLT, FLANGE DEEP RECESS

95D32-06014-00

Unavailable

50

HOOK, SIDE COVER 4

B4J-F1334-00-00

Unavailable

51

PLUG

90338-10801-00

Unavailable

52

BOLT, FLANGE DEEP RECESS

95D32-06014-00

Unavailable
