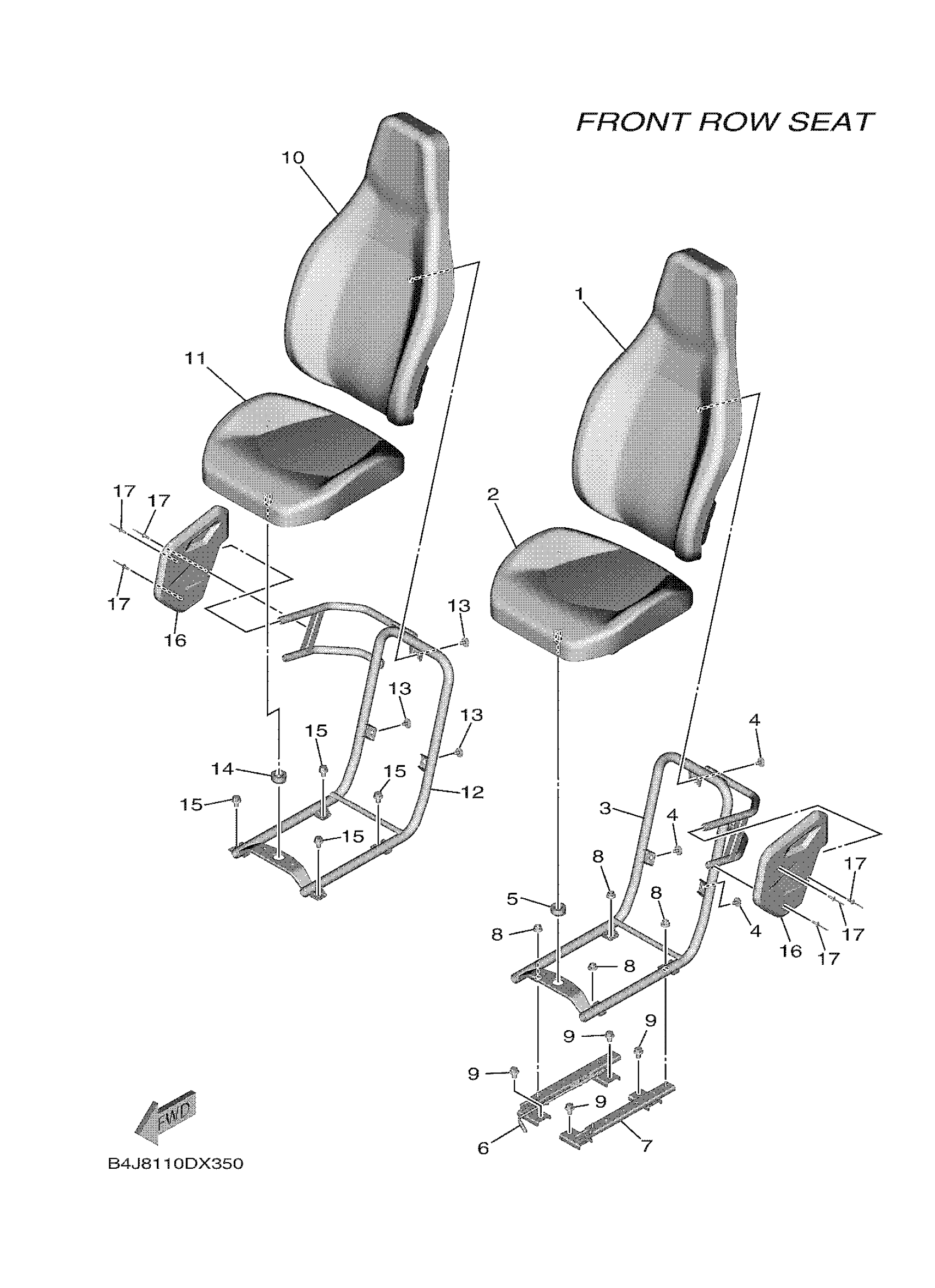

Yamaha YXF10WRLTL (WOLVERINE RMAX4 1000 COMPACT LE) BLUA 2026 SEAT Diagram

Description

Price

SEAT BACK ASSY

B4J-F4790-70-00

$318.99

SEAT ASSY 2

B4J-K8420-70-00

$199.99

FRAME, SEAT 1

B4J-F473C-02-00

$156.99

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

GROMMET

1XD-F4742-00-00

$3.69

ADJUSTER ASSY

B4J-F7270-01-00

$61.99

ADJUSTER ASSY

B4J-F7260-01-00

$46.99

NUT, SELF-LOCKING

95602-08200-00

$3.20

BOLT, FLANGE

95817-08012-00

$5.49
