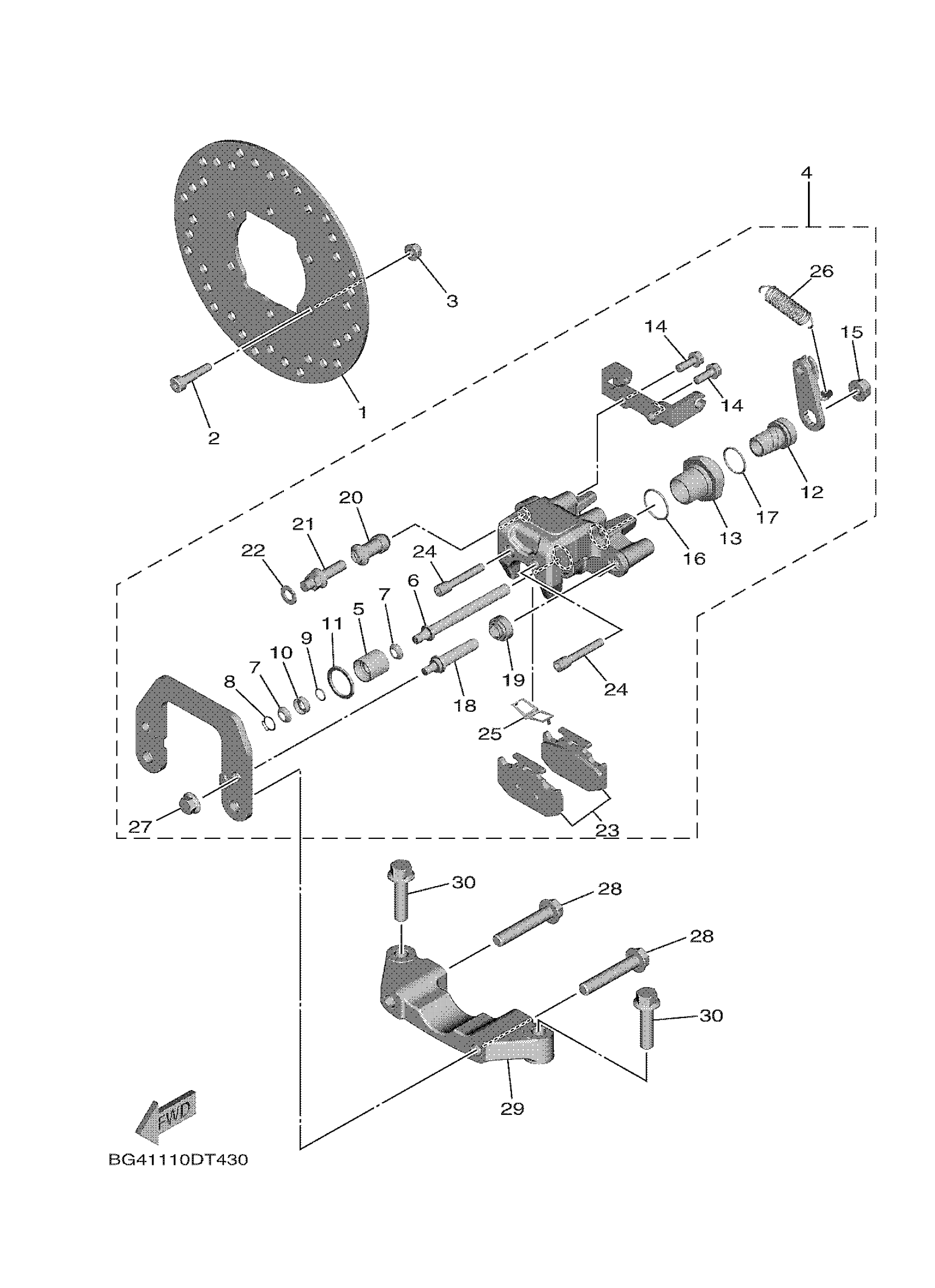

Yamaha YXF10WRLTL (WOLVERINE RMAX4 1000 COMPACT LE) BLUA 2026 REAR BRAKE CALIPER 2 Diagram

#

Description
Price

1

DISC, BRAKE

BG4-F5711-01-00

$31.99

2

BOLT, HEXAGON SOCKET HEAD

90110-06228-00

$8.49

3

NUT, U FLANGE

95604-06200-00

$8.49

4

PARKING BRAKE ASSY

B4J-25905-00-00

Unavailable

5

PISTON, CALIPER

5B4-25814-10-00

Unavailable

6

PUSH ROD COMP.

5B4-25880-00-00

$28.99

7

WASHER, CONICAL SPRING

5B4-2581R-00-00

$6.99

8

CIRCLIP

5B4-25415-00-00

$6.99

9

O-RING

5B4-25976-00-00

$2.29

10

RETAINER

5B4-25913-00-00

$8.99

11

RUBBER, BUSHING

5B4-25975-00-00

Unavailable

12

SHAFT L

5B4-25978-00-00

$38.99

13

NUT

5B4-25973-00-00

$55.99

14

BOLT, FITTING

5B4-25833-00-00

$2.34

15

NUT

1UY-25973-51-00

$6.99

16

O-RING

5B4-25976-10-00

Unavailable

17

O-RING

5B4-25976-20-00

Unavailable

18

BOLT

3JD-25926-00-00

Unavailable

19

BOOT, CALIPER

3JD-25917-00-00

Unavailable

20

BOOT 2

1UY-25937-51-00

Unavailable

21

BOLT

1UY-25926-51-00

Unavailable

22

WASHER, SPRING

1UY-25938-51-00

Unavailable

23

BRAKE PAD KIT 2

B4J-25806-00-00

Unavailable

24

PIN, PAD

5B4-25924-00-00

Unavailable

25

SUPPORT, PAD

B4J-25919-00-00

Unavailable

26

SPRING, RETURN

5B4-25977-00-00

Unavailable

27

NUT

3JD-25961-00-00

Unavailable

28

BOLT, WASHER BASED(1KT)

90105-10402-00

Unavailable

29

BRACKET 1

BG4-2537W-00-00

Unavailable

30

BOLT, FLANGE

90105-10256-00

Unavailable
