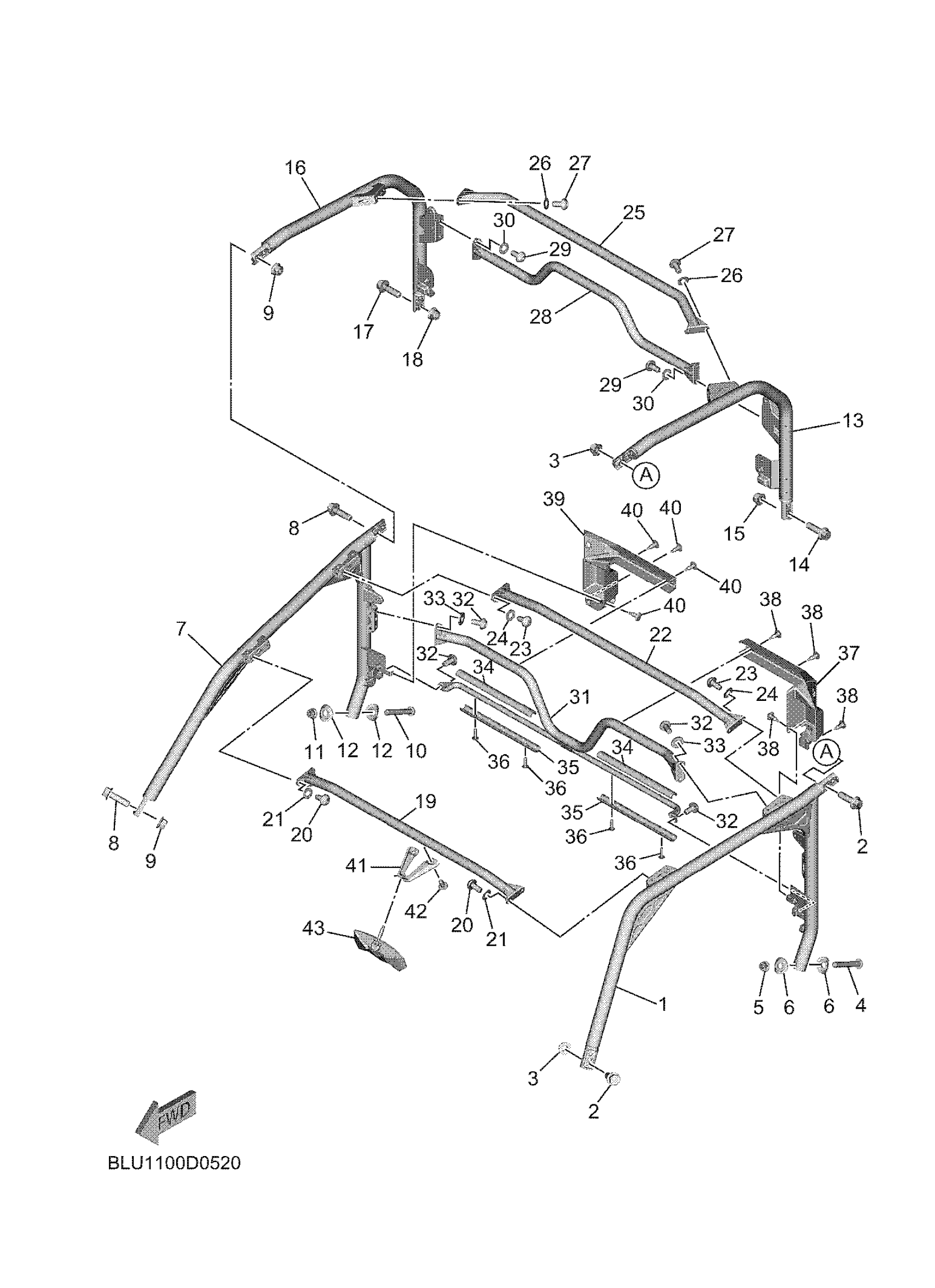

Yamaha YXF10WRLTL (WOLVERINE RMAX4 1000 COMPACT LE) BLUA 2026 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

BYP-K831A-00-00

$382.99

2

BOLT, FLANGE

95817-12040-00

$4.19

3

NUT, SELF-LOCKING

90185-12002-00

$12.49

4

BOLT,BUTTON

92017-10070-00

$4.14

5

NUT, SELF-LOCKING

90185-10819-00

$0.90

6

WASHER 2

1XD-K7526-00-00

$5.49

7

SUPPORT, ROOF 4

BYP-K831E-00-00

Unavailable

8

BOLT, FLANGE

95817-12040-00

$4.19

9

NUT, SELF-LOCKING

90185-12002-00

$12.49

10

BOLT,BUTTON

92017-10070-00

$4.14

11

NUT, SELF-LOCKING

90185-10819-00

$0.90

12

WASHER 2

1XD-K7526-00-00

$5.49

13

FRAME, SUNROOF 1

B4J-K833M-01-00

$224.99

14

BOLT, FLANGE

95817-12040-00

$4.19

15

NUT, SELF-LOCKING

90185-12002-00

$12.49

16

FRAME, SUNROOF 2

B4J-K833R-01-00

Unavailable

17

BOLT, FLANGE

95817-12040-00

$4.19

18

NUT, SELF-LOCKING

90185-12002-00

$12.49

19

MEMBER, ROOF FRAME

B4J-K8392-01-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

21

WASHER, PLATE

90201-10856-00

Unavailable

22

MEMBER, ROOF FRAME 2

B4J-K8393-01-00

Unavailable

23

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

24

WASHER, PLATE

90201-10856-00

Unavailable

25

MEMBER, ROOF FRAME 3

B4J-K8394-01-00

Unavailable

26

WASHER, PLATE

90201-10856-00

Unavailable

27

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

28

ROOF SUPPORT ASSY

B4J-K830A-00-00

Unavailable

29

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

30

WASHER, PLATE

90201-10856-00

Unavailable

31

ROOF SUPPORT ASSY

B4J-K830B-00-00

Unavailable

32

BOLT,HEX. SOCKET B

90111-10802-00

Unavailable

33

WASHER, PLATE

90201-10856-00

Unavailable

34

GRIP,HAND

BG4-K8214-01-00

Unavailable

35

COVER,ASSIST GRIP

BG4-K7575-01-00

Unavailable

36

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

37

COVER, SIDE PILLAR

B4J-K813F-00-00

Unavailable

38

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

39

COVER, SIDE PILLAR

B4J-K813G-00-00

Unavailable

40

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

41

BRACKET 2

BAS-K7722-00-00

Unavailable

42

BOLT, FLANGE

90105-08867-00

Unavailable

43

MIRROR

BKP-F6291-01-00

Unavailable
