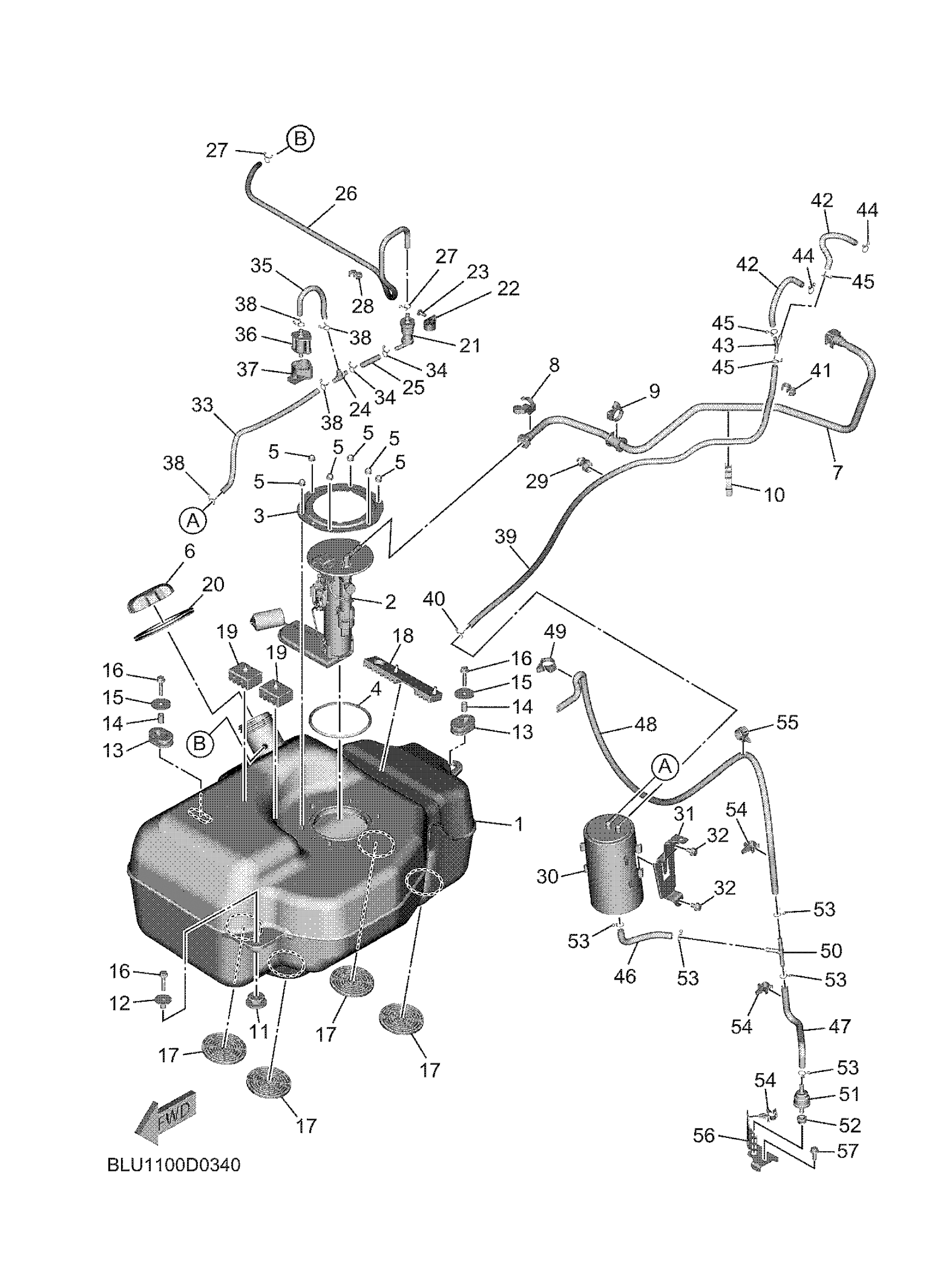

Yamaha YXF10WRLTL (WOLVERINE RMAX4 1000 COMPACT LE) BLUA 2026 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BG4-F4110-02-00

Unavailable

2

FUEL PUMP COMP.

B4J-13907-00-00

$367.99

3

BRACKET, FUEL PUMP

3B4-24491-00-00

Unavailable

4

O-RING

1S3-24486-00-00

$17.49

5

NUT (J17)

95380-06800-00

$8.49

6

CAP ASSY

BKP-24610-00-00

Unavailable

7

PIPE, FUEL 1

B4J-13971-00-00

Unavailable

8

CLAMP

90464-14004-00

$7.49

9

CLAMP

90464-20010-00

$3.23

10

CLAMP

90464-10009-00

Unavailable

11

GROMMET

90480-18016-00

$8.49

12

COLLAR

90387-07021-00

$7.49

13

GROMMET(38W)

90480-01400-00

$13.49

14

COLLAR(2UJ)

90387-061V1-00

$8.49

15

WASHER (23T)

90201-065G8-00

$8.49

16

BOLT, FLANGE

95812-06030-00

Unavailable

17

DAMPER, LOCATING 1

2MB-F4181-00-00

Unavailable

18

DAMPER, LOCATING 1

2HC-F4181-00-00

Unavailable

19

DAMPER, LOCATING 2

2MB-F4182-00-00

Unavailable

20

COVER, FUEL INLET

BG4-K8272-00-00

Unavailable

21

ROLL OVER VALVE ASSY

5RB-24180-00-00

Unavailable

22

CLAMP

90464-15014-00

Unavailable

23

SCREW, BINDING

98907-05012-00

Unavailable

24

WAY 3

90413-06031-00

Unavailable

25

HOSE (L54)

90445-09043-00

Unavailable

26

HOSE 1

BFN-2247A-00-00

Unavailable

27

CLIP

90467-090A2-00

Unavailable

28

CLAMP

90464-09M21-00

Unavailable

29

CLAMP

90464-20010-00

$3.23

30

CANISTER ASSY

7CC-F4170-02-00

Unavailable

31

CANISTER HOLDER AS

BG4-F4190-00-00

Unavailable

32

BOLT, FLANGE

95812-06010-00

Unavailable

33

HOSE (L270)

90445-09129-00

Unavailable

34

CLIP

90467-090A2-00

Unavailable

35

HOSE

90445-09029-00

Unavailable

36

PIPE JOINT ASSY

3B4-24380-11-00

Unavailable

37

BAND 1

3B4-24398-00-00

Unavailable

38

CLIP

90467-090A2-00

Unavailable

39

HOSE (L960)

90445-10065-00

Unavailable

40

CLIP

90467-090A2-00

Unavailable

41

CLAMP(6M7)

90464-09M31-00

Unavailable

42

HOSE (L130)

90445-10017-00

Unavailable

43

WAY 3 (73A)

90413-05013-00

Unavailable

44

CLIP

90467-100A1-00

Unavailable

45

CLIP

90467-090A2-00

Unavailable

46

PIPE 5

BG4-24315-00-00

Unavailable

47

PIPE 11

BYP-24322-00-00

Unavailable

48

HOSE (L1010)

90445-11100-00

Unavailable

49

CLAMP

90464-20010-00

$3.23

50

WAY (70R)

90413-08012-00

Unavailable

51

VALVE, CHECK 1

BG4-24362-00-00

Unavailable

52

GROMMET

90480-10003-00

Unavailable

53

CLIP

90467-100A1-00

Unavailable

54

CLAMP

90464-14M55-00

Unavailable

55

CLAMP

90464-20010-00

$3.23

56

BRACKET 1

BYP-F148U-00-00

Unavailable

57

BOLT, FLANGE

90105-06831-00

Unavailable
