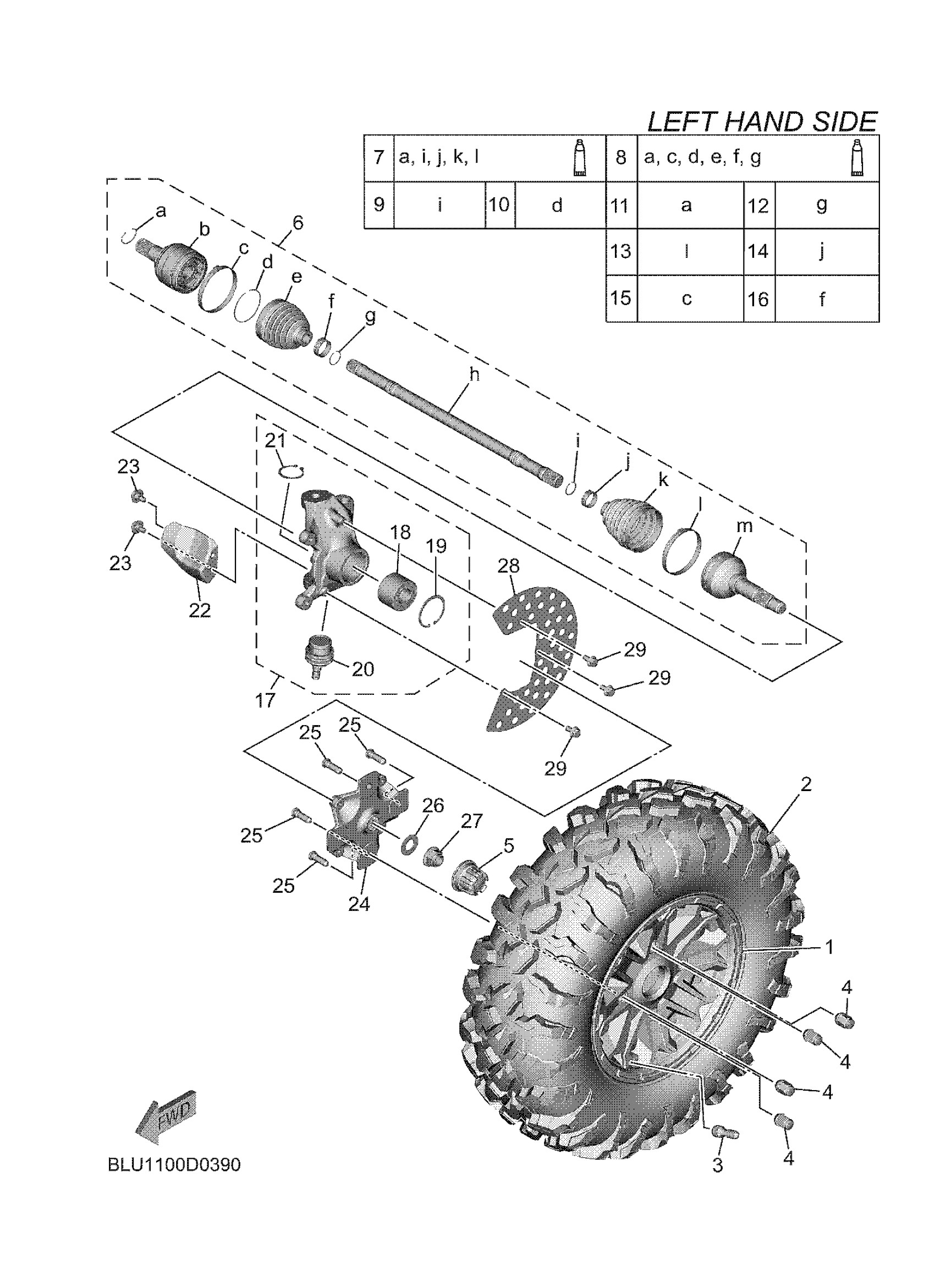

Yamaha YXF10WRLTL (WOLVERINE RMAX4 1000 COMPACT LE) BLUA 2026 FRONT WHEEL Diagram

#

Description
Price

1

CAST WHEEL, FRONT

B4J-F5168-20-00

$333.99

2

29X9R14 ML19A 8PR TL

94109-14819-00

$364.99

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT, CROWN

90176-12801-00

Unavailable

5

CAP, WHEEL

2HC-F512A-00-00

$3.02

6

DRIVE SHAFT ASSY

BKP-2518F-00-00

$289.99

7

BOOT SET (BALL JOI

B4J-2510G-02-00

$53.99

8

BOOT SET(DOUBLE OF

B4J-2510H-02-00

$49.99

9

RING 1

BG4-25185-00-00

$4.56

10

CLIP, SPRING

2HC-2536E-00-00

$4.99

11

CLIP, SPRING

16B-2536E-00-00

$4.63

12

SNAP RING

2HC-2512J-00-00

$4.58

13

BOOT BAND(DOUBLE OFFSET JOINT)

B4J-2511H-00-00

$8.49

14

BOOT BAND (BALL JOINT)

B4J-2511G-00-00

$7.49

15

BAND

2HC-26293-00-00

$9.99

16

BAND

2HC-25719-00-00

Unavailable

17

STEERING KNUCKLE A

BKP-F3501-01-00

Unavailable

18

BEARING

93305-00604-00

Unavailable

19

CIRCLIP(MF1)

99009-62500-00

Unavailable

20

BALL JOINT 2

2HC-23579-00-00

Unavailable

21

CIRCLIP

93410-42096-00

Unavailable

22

COVER, UNDER 1

B4J-F3123-00-00

Unavailable

23

BOLT

90109-06202-00

Unavailable

24

HUB, FRONT

B5H-F5111-02-00

Unavailable

25

BOLT, SERRATION

90114-12005-00

Unavailable

26

WASHER, PLATE

90201-25023-00

Unavailable

27

NUT

90179-24006-00

Unavailable

28

RING, WHEEL 1

2HC-F514A-00-00

Unavailable

29

BOLT, FLANGE

95817-06012-00

Unavailable
