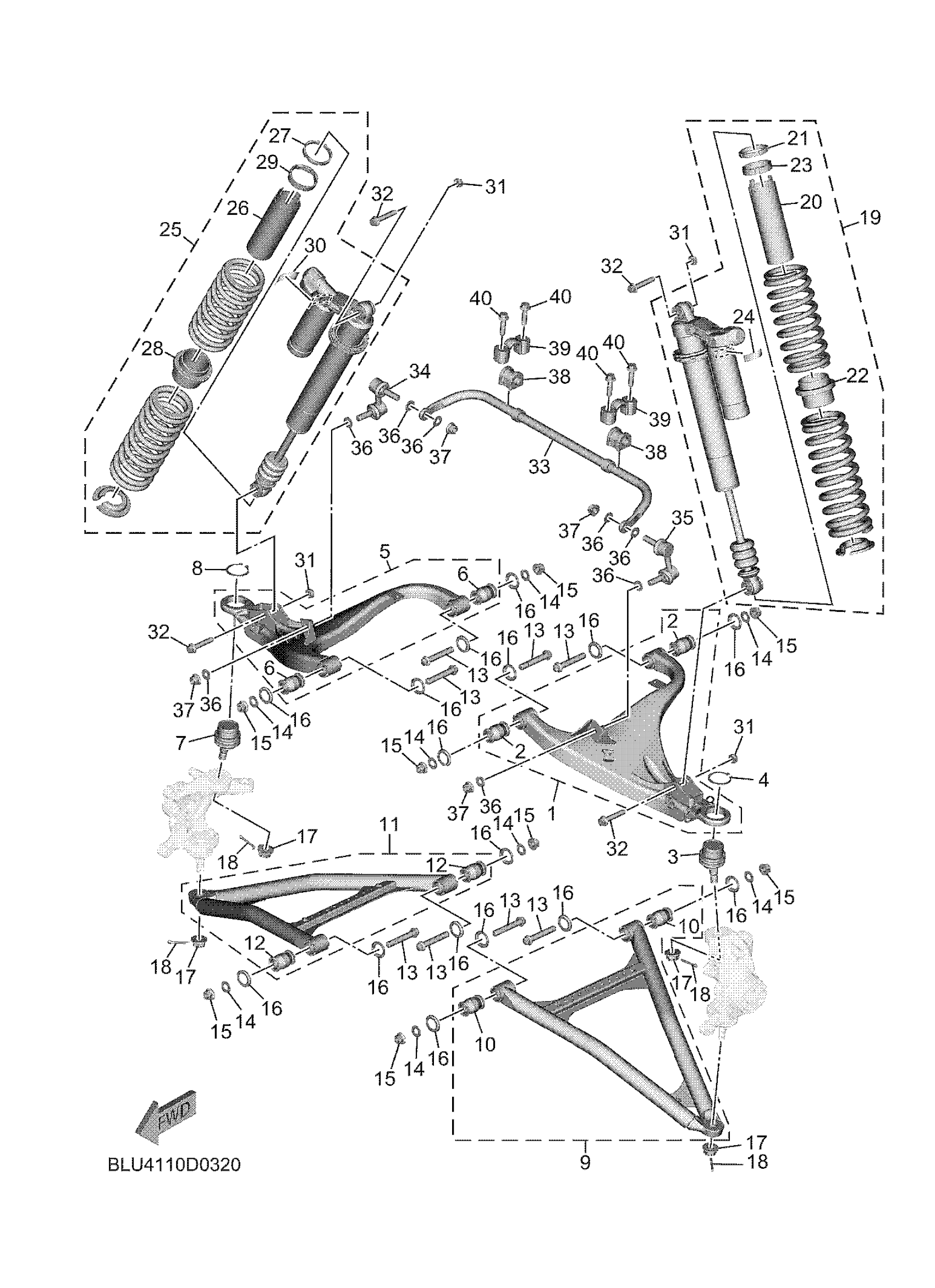

Yamaha YXF10WRLTL (WOLVERINE RMAX4 1000 COMPACT LE) BLUA 2026 FRONT SUSPENSION & WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM CO

B4J-F3540-30-00

$184.99

2

BUSH

B4J-F3526-01-00

Unavailable

3

BALL JOINT 2

2HC-23579-00-00

$96.99

4

CIRCLIP

93410-42096-00

$2.55

5

FRONT UPPER ARM CO

B4J-F3550-30-00

$184.99

6

BUSH

B4J-F3526-01-00

Unavailable

7

BALL JOINT 2

2HC-23579-00-00

$96.99

8

CIRCLIP

93410-42096-00

$2.55

9

FRONT LOWER ARM CO

B4J-F3570-10-00

$127.99

10

BUSH

B4J-F3526-01-00

Unavailable

11

FRONT LOWER ARM CO

B4J-F3580-10-00

Unavailable

12

BUSH

B4J-F3526-01-00

Unavailable

13

BOLT, FLANGE

90105-12095-00

$9.49

14

WASHER, PLATE

90201-12045-00

$5.60

15

NUT, SELF-LOCKING

90185-12002-00

$12.49

16

COVER, THRUST 1

B4J-F3517-00-00

Unavailable

17

NUT, CASTLE

90171-14005-00

Unavailable

18

PIN, COTTER

91401-30025-00

Unavailable

19

FRONT SUSPENSION A

BKP-F3740-00-00

Unavailable

20

SLEEVE

BKP-F2819-00-00

Unavailable

21

RING, HOLD

BKP-F2973-00-00

Unavailable

22

SLIDER 1

BKP-F388D-00-00

Unavailable

23

RING, HOLD 2

BKP-F2981-00-00

Unavailable

24

LABEL, WARNING

B4M-F2259-00-00

Unavailable

25

FRONT SUSPENSION A

BKP-F3750-00-00

Unavailable

26

SLEEVE

BKP-F2819-00-00

Unavailable

27

RING, HOLD

BKP-F2973-00-00

Unavailable

28

SLIDER 1

BKP-F388D-00-00

Unavailable

29

RING, HOLD 2

BKP-F2981-00-00

Unavailable

30

LABEL, WARNING

B4M-F2259-00-00

Unavailable

31

NUT, SELF-LOCKING

90185-10012-00

Unavailable

32

BOLT, FLANGE

90105-10199-00

Unavailable

33

BAR, STABILIZER FR

BLU-F386E-01-00

Unavailable

34

JOINT, STABILIZER 1

BAS-F385L-04-00

Unavailable

35

JOINT, STABILIZER 2

BAS-F385M-05-00

Unavailable

36

WASHER, PLATE

90201-12045-00

$5.60

37

NUT, SELF-LOCKING

90185-12002-00

$12.49

38

BUSH

BLU-F376B-00-00

Unavailable

39

BRKT., STABILIZER

BLU-F386B-00-00

Unavailable

40

BOLT, FLANGE

95817-10040-00

Unavailable
