- YXF10WRLTL (WOLVERINE RMAX4 1000 COMPACT LE) BLUA 2026
FRONT FENDER 1

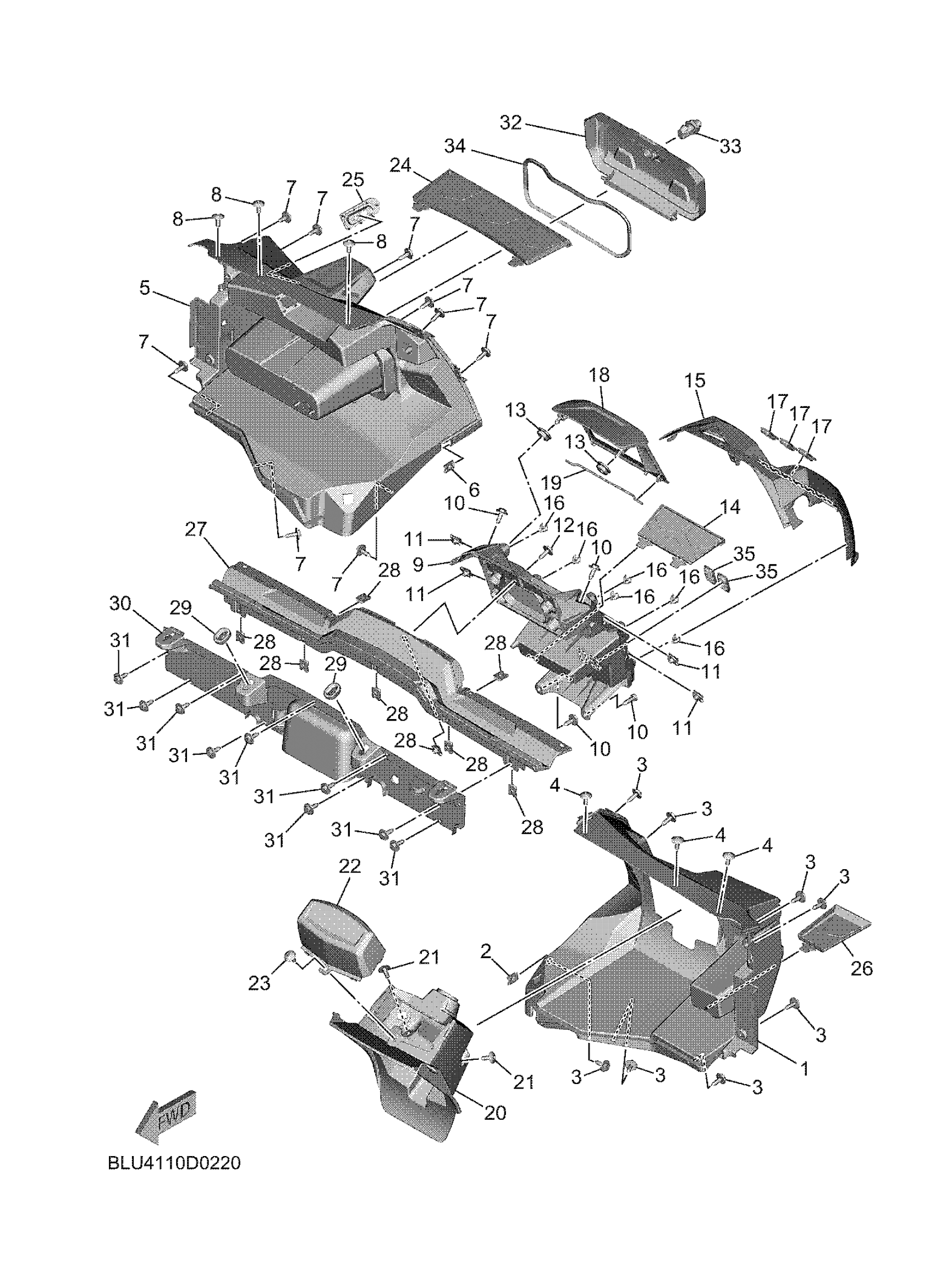

Yamaha YXF10WRLTL (WOLVERINE RMAX4 1000 COMPACT LE) BLUA 2026 FRONT FENDER 1 Diagram
#
1
PANEL, DASH 1
B4J-K7781-00-00
Unavailable
2
NUT, SPRING
90183-062A1-00
$1.96
3
BOLT, WITH WASHER
90119-06226-00
$8.49
4
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
5
PANEL, DASH 2
B4J-K7782-00-00
$59.99
6
NUT, SPRING
90183-062A1-00
$1.96
7
BOLT, WITH WASHER
90119-06226-00
$8.49
8
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
9
PANEL, DASH 3
BKP-K7783-00-00
Unavailable
10
BOLT, WITH WASHER
90119-06226-00
$8.49
11
NUT, SPRING
90183-062A1-00
$1.96
12
BOLT, WITH WASHER
90119-06226-00
$8.49
13
GROMMET(4DN)
90480-01558-00
$4.19
14
MAT 1
BKP-F7483-00-00
$13.49
15
TRIM, INSTRUMENT P
B4J-K7738-70-00
$126.99
16
CLIP
90468-040A0-00
Unavailable
17
PLUG, HOLE
BG4-F312G-00-00
Unavailable
18
LID
BKP-F6214-00-00
Unavailable
19
PIN, HINGE
B4J-F177K-00-00
Unavailable
20
COVER, ADJUST
B4J-F387G-00-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06090-00
Unavailable
22
COVER, METER
B4J-H3559-00-00
Unavailable
23
BOLT
90109-06334-00
Unavailable
24
MAT 1
B4J-F7483-00-00
Unavailable
25
PLATE, RUBBER 1
B4J-F8483-00-00
Unavailable
26
MAT 2
B4J-F7484-00-00
Unavailable
27
COVER, FRONT
B4J-F2865-00-00
Unavailable
28
NUT, SPRING
90183-062A1-00
$1.96
29
GROMMET
90480-01822-00
Unavailable
30
PANEL, ACCESSORY
B4J-F839R-00-00
Unavailable
31
BOLT, WITH WASHER
90119-06226-00
$8.49
32
LID
B4J-F160F-00-00
Unavailable
33
LATCH ASSY 1
B4J-F17N0-01-00
Unavailable
34
SEAL 1
B4J-F1575-01-00
Unavailable
35
PLUG, HOLE
BG4-F312G-00-00
Unavailable
