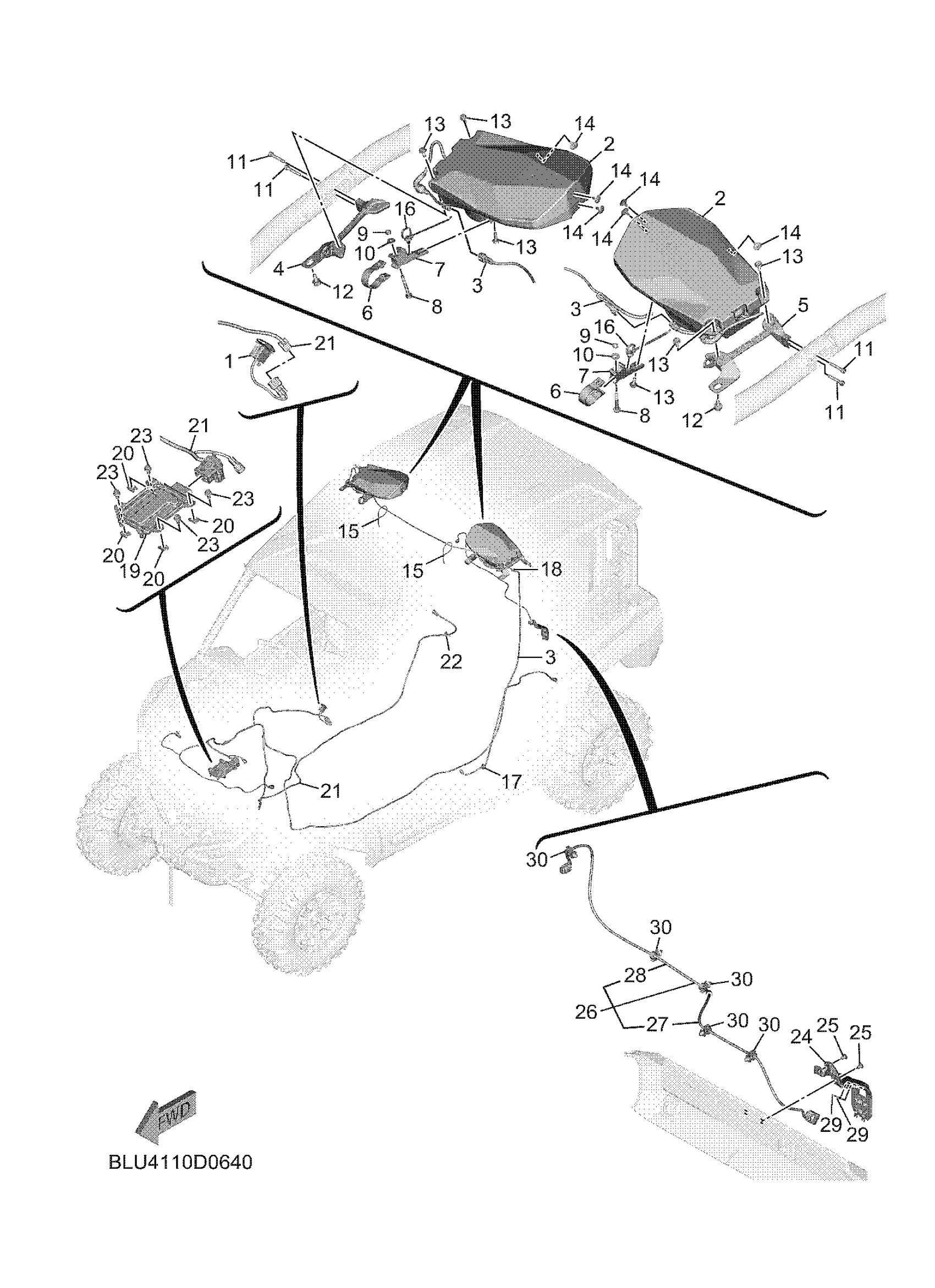

Yamaha YXF10WRLTL (WOLVERINE RMAX4 1000 COMPACT LE) BLUA 2026 ELECTRICAL 5 Diagram

#

Description
Price

1

SWITCH ASSY

B4J-H1860-01-00

$127.99

2

SPEAKER 1

BKP-H8161-11-00

Unavailable

3

WIRE HARNESS ASSY

BLU-H3730-00-00

Unavailable

4

BRACKET 2

BLU-H4782-00-00

$73.99

5

BRACKET 1

BLU-H4781-00-00

$73.99

6

BRKT.,SPEAKER 2

BLU-H8174-00-00

$35.99

7

BRKT.,SPEAKER 1

BLU-H8164-00-00

$52.99

8

BOLT,SPECIAL 4

BLU-H332W-00-00

Unavailable

9

NUT

BLU-H2557-00-00

Unavailable

10

WASHER

BLU-H1835-00-00

Unavailable

11

BOLT, SPECIAL 3

BLU-H332J-00-00

Unavailable

12

BOLT, SPECIAL 2

BLU-H332H-00-00

Unavailable

13

BOLT, SPECIAL 1

BLU-H332G-00-00

Unavailable

14

RIVET,1

BLU-H132N-00-00

Unavailable

15

CLAMP

BLU-H3596-00-00

Unavailable

16

CLAMP

BLU-H3595-00-00

Unavailable

17

GROMMET 1

BLU-H2572-00-00

Unavailable

18

GROMMET 2

BLU-H2573-00-00

Unavailable

19

CONTROL UNIT ASSY

B4J-H1930-00-00

Unavailable

20

NUT, SPRING

90183-062A1-00

Unavailable

21

WIRE, SUB LEAD

BKP-H8189-00-00

Unavailable

22

CLAMP

1NS-F1338-00-00

Unavailable

23

BLOT, FLANGE DEEP RECESS

95D32-06012-00

Unavailable

24

BRACKET COMPLETE

BKP-H182J-00-00

Unavailable

25

RIVET(81E)

90269-05055-00

Unavailable

26

CAMERA UNIT ASSY.

BKP-H62C0-01-00

Unavailable

27

CABLE 1

BKP-H8146-00-00

Unavailable

28

CABLE 2

BKP-H8147-00-00

Unavailable

29

SCREW

90149-02800-00

Unavailable

30

CLAMP

90464-12830-00

Unavailable
