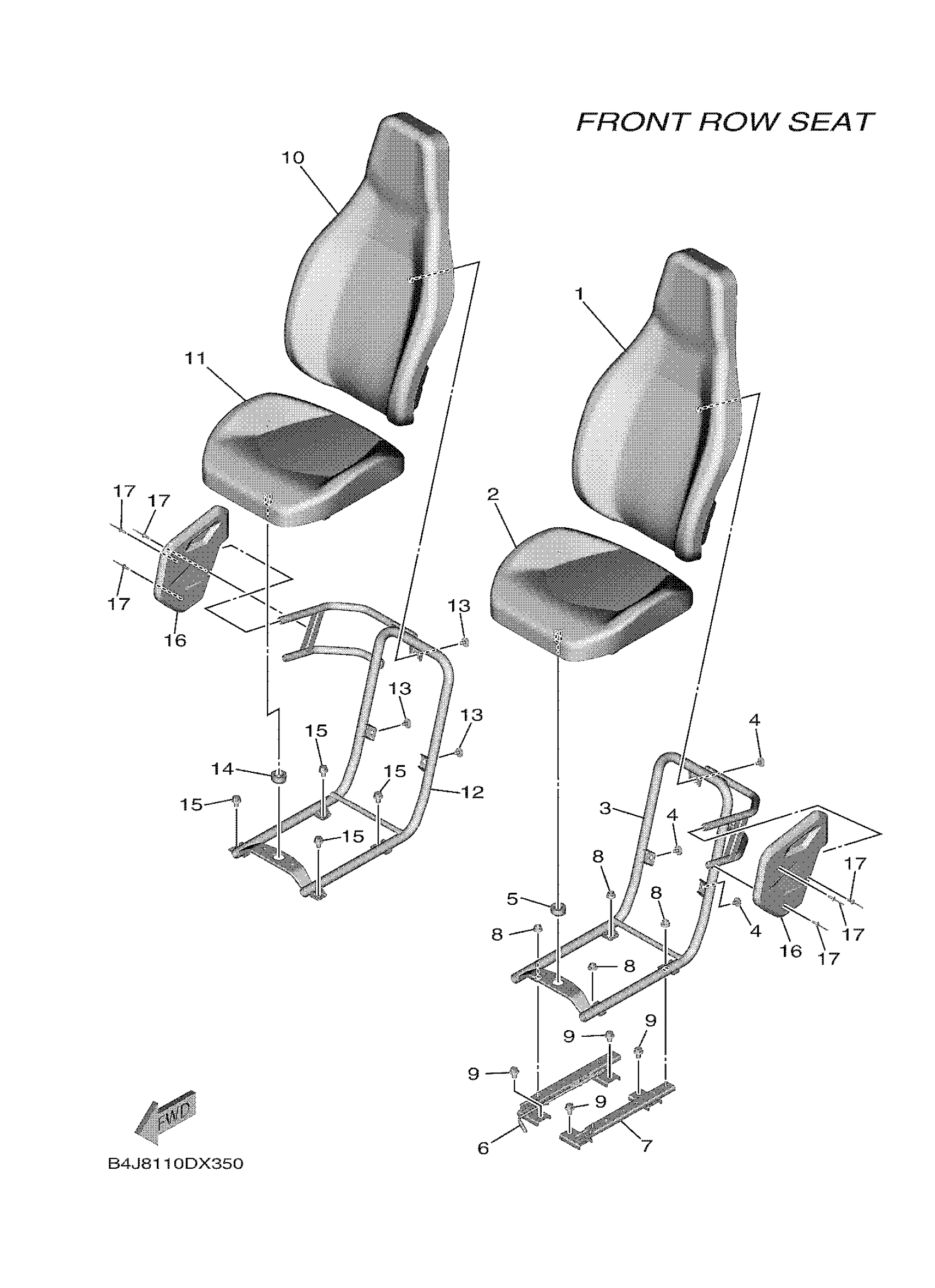

Yamaha YXF10WRLSL (WOLVERINE RMAX4 1000 COMPACT LE) BLU4 2025 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

B4J-F4790-70-00

$281.88

2

SEAT ASSY 2

B4J-K8420-70-00

$176.18

3

FRAME, SEAT 1

B4J-F473C-02-00

$124.85

4

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

5

GROMMET

1XD-F4742-00-00

$3.04

6

ADJUSTER ASSY

B4J-F7270-01-00

$47.09

7

ADJUSTER ASSY

B4J-F7260-01-00

$36.64

8

NUT, SELF-LOCKING

95602-08200-00

$2.69

9

BOLT, FLANGE

95817-08012-00

$3.71

10

SEAT BACK ASSY

B4J-F4790-70-00

$281.88

11

SEAT ASSY 2

B4J-K8420-70-00

$176.18

12

FRAME, SEAT 2

B4J-F473D-02-00

$133.55

13

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$1.68

14

GROMMET

1XD-F4742-00-00

$3.04

15

BOLT, FLANGE

95817-08012-00

$3.71

16

COVER

B4J-F117F-00-00

Unavailable

17

RIVET, BLIND(J50)

90267-49152-00

Unavailable
