Description

Price

1

SHOCK ABSORBER ASS

BLU-F2200-00-00

Unavailable

2

SLEEVE

BKP-F2819-00-00

$177.99

3

CUP

BKP-F5951-00-00

Unavailable

4

RING, HOLD

BKP-F2973-00-00

Unavailable

5

SLIDER 1

BKP-F388D-00-00

$33.99

6

RING, HOLD 2

BKP-F2981-00-00

Unavailable

7

LABEL, WARNING

B4M-F2259-00-00

$1.22

8

RR. SHOCK ABSORBER

BLU-F220U-00-00

Unavailable

9

SLEEVE

BKP-F2819-00-00

$177.99

10

CUP

BKP-F5951-00-00

Unavailable

11

RING, HOLD

BKP-F2973-00-00

Unavailable

12

SLIDER 1

BKP-F388D-00-00

$33.99

13

RING, HOLD 2

BKP-F2981-00-00

Unavailable

14

LABEL, WARNING

B4M-F2259-00-00

$1.22

15

BOLT, FLANGE

90105-12050-00

$11.49

16

BOLT, FLANGE

90105-12820-00

Unavailable

17

NUT, SELF-LOCKING

90185-12002-00

Unavailable

18

BAR, STABILIZER

BLU-G7491-00-00

Unavailable

19

JOINT, STABILIZER

B4J-F385L-01-00

Unavailable

20

WASHER, PLATE

90201-12045-00

Unavailable

21

NUT, SELF-LOCKING

90185-12002-00

Unavailable

22

BUSH, STABILIZER F

BLU-F386G-00-00

Unavailable

23

COVER, STABILIZER

1XD-F386H-00-00

Unavailable

24

BOLT, FLANGE

90105-10489-00

Unavailable

25

NUT, SELF-LOCKING

90185-10011-00

Unavailable

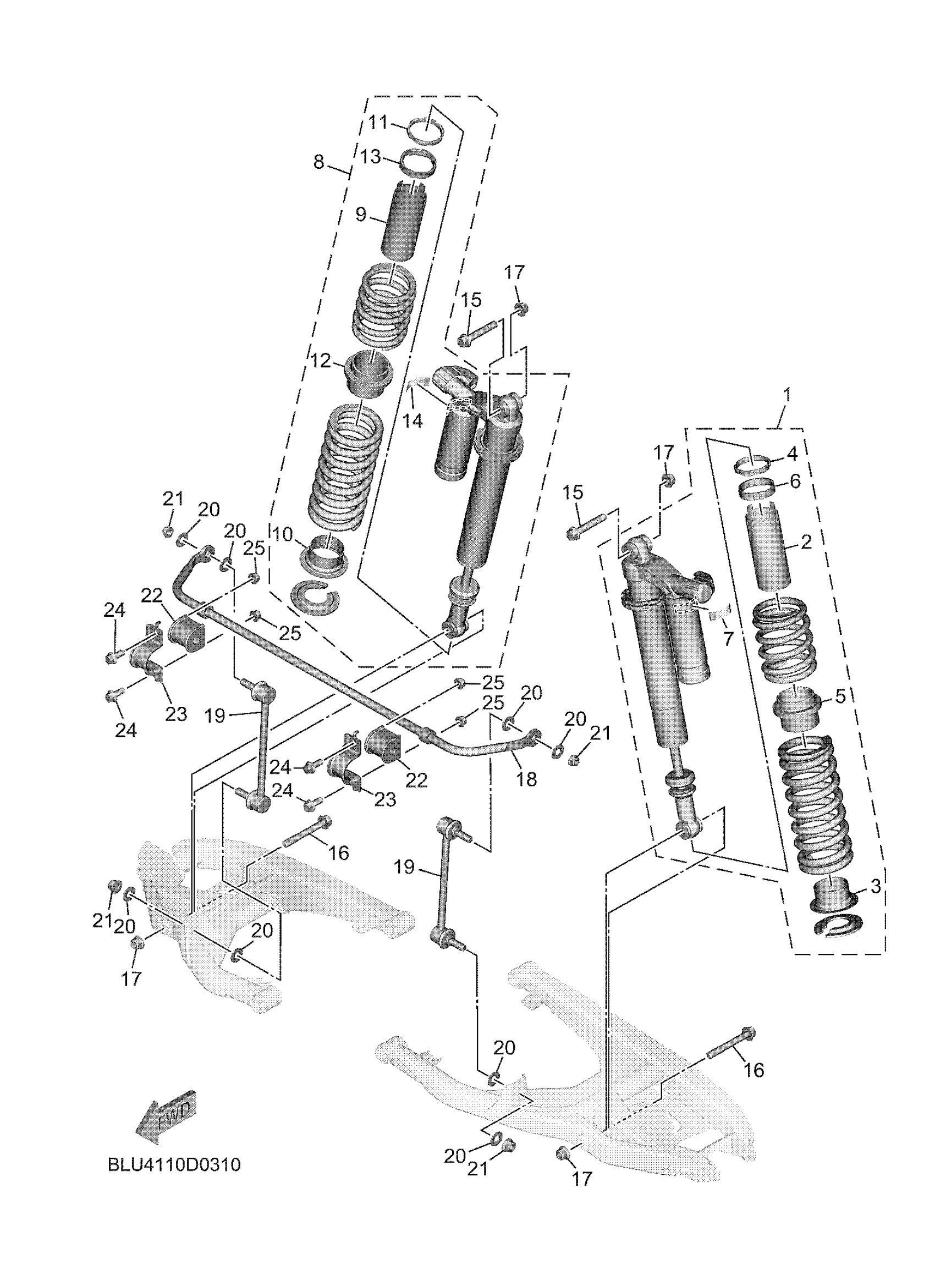

Yamaha YXF10WRLSL (WOLVERINE RMAX4 1000 COMPACT LE) BLU4 2025 REAR SUSPENSION Diagram

SHOCK ABSORBER ASS

SLEEVE

CUP

RING, HOLD

SLIDER 1

RING, HOLD 2

LABEL, WARNING

RR. SHOCK ABSORBER

SLEEVE

CUP

RING, HOLD

SLIDER 1

RING, HOLD 2

LABEL, WARNING

BOLT, FLANGE

BOLT, FLANGE

NUT, SELF-LOCKING

BAR, STABILIZER

JOINT, STABILIZER

WASHER, PLATE

NUT, SELF-LOCKING

BUSH, STABILIZER F

COVER, STABILIZER

BOLT, FLANGE

NUT, SELF-LOCKING
