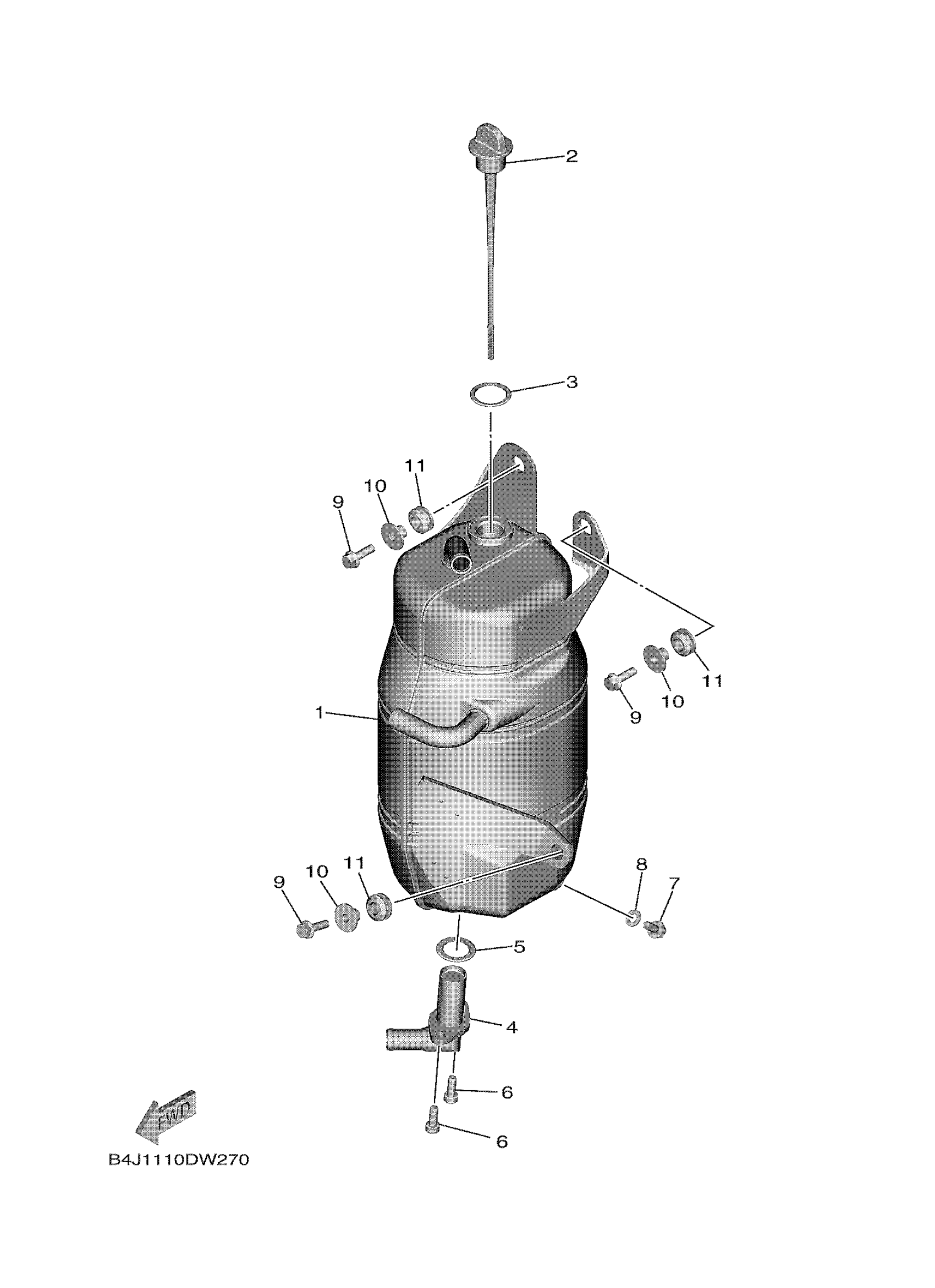

Yamaha YXF10WRLSL (WOLVERINE RMAX4 1000 COMPACT LE) BLU4 2025 OIL TANK Diagram

#

Description
Price

1

TANK, OIL

B4J-21751-00-00

Unavailable

2

OIL LEVEL GAUGE ASSY

BG4-85720-00-00

$7.38

3

O-RING

93210-22006-00

$5.05

4

OIL PIPE COMP. 2

BG4-13406-01-00

Unavailable

5

O-RING

93210-24001-00

$5.23

6

BOLT(3MA)

91312-06016-00

$4.57

7

BOLT, FLANGE

90105-06128-00

$3.79

8

WASHER, PLATE (1L9)

90201-06630-00

$2.93

9

BOLT, FLANGE

90105-06155-00

$4.64

10

COLLAR(735)

90387-06033-00

$6.58

11

GROMMET

90480-15M31-00

$7.14
