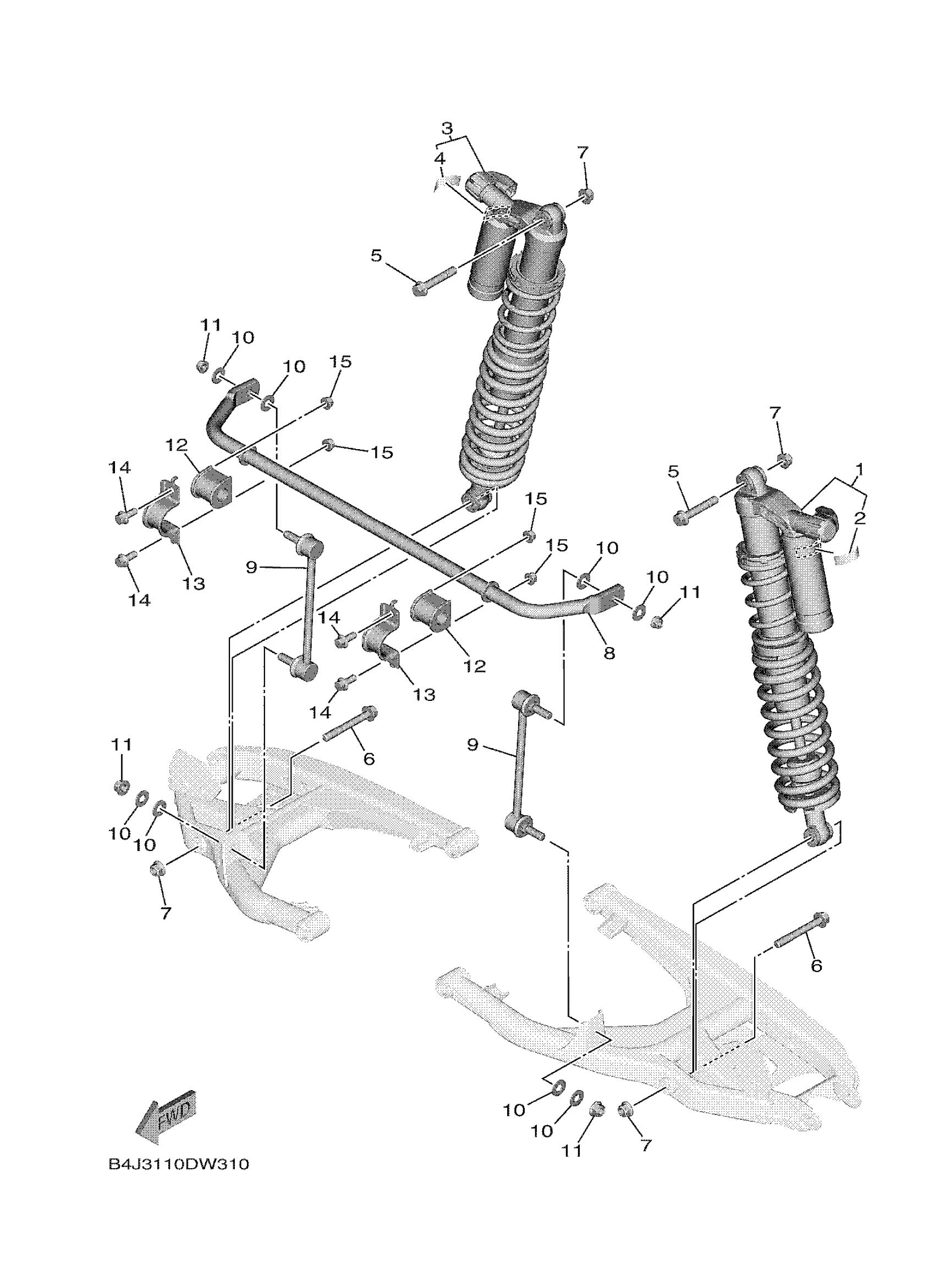

Yamaha YXF10WRLRS (WOLVERINE RMAX4 LE) B4JN 2024 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASS

B4J-F2200-02-00

$1,186.99

2

LABEL, WARNING

B4M-F2259-00-00

$1.22

3

RR. SHOCK ABSORBER

B4J-F220U-02-00

$1,186.99

4

LABEL, WARNING

B4M-F2259-00-00

$1.22

5

BOLT, FLANGE

90105-12050-00

$11.49

6

BOLT, FLANGE

95812-12090-00

$8.49

7

NUT, SELF-LOCKING

90185-12002-00

$12.49

8

BAR, STABILIZER

B4J-G7491-00-00

$123.99

9

JOINT, STABILIZER

B4J-F385L-01-00

$92.99

10

WASHER, PLATE

90201-12045-00

$5.60

11

NUT, SELF-LOCKING

90185-12002-00

$12.49

12

BUSH, STABILIZER F

BAR-F386G-01-00

Unavailable

13

COVER, STABILIZER

1XD-F386H-00-00

$8.99

14

BOLT, FLANGE

90105-10489-00

$3.13

15

NUT, SELF-LOCKING

90185-10818-00

Unavailable
