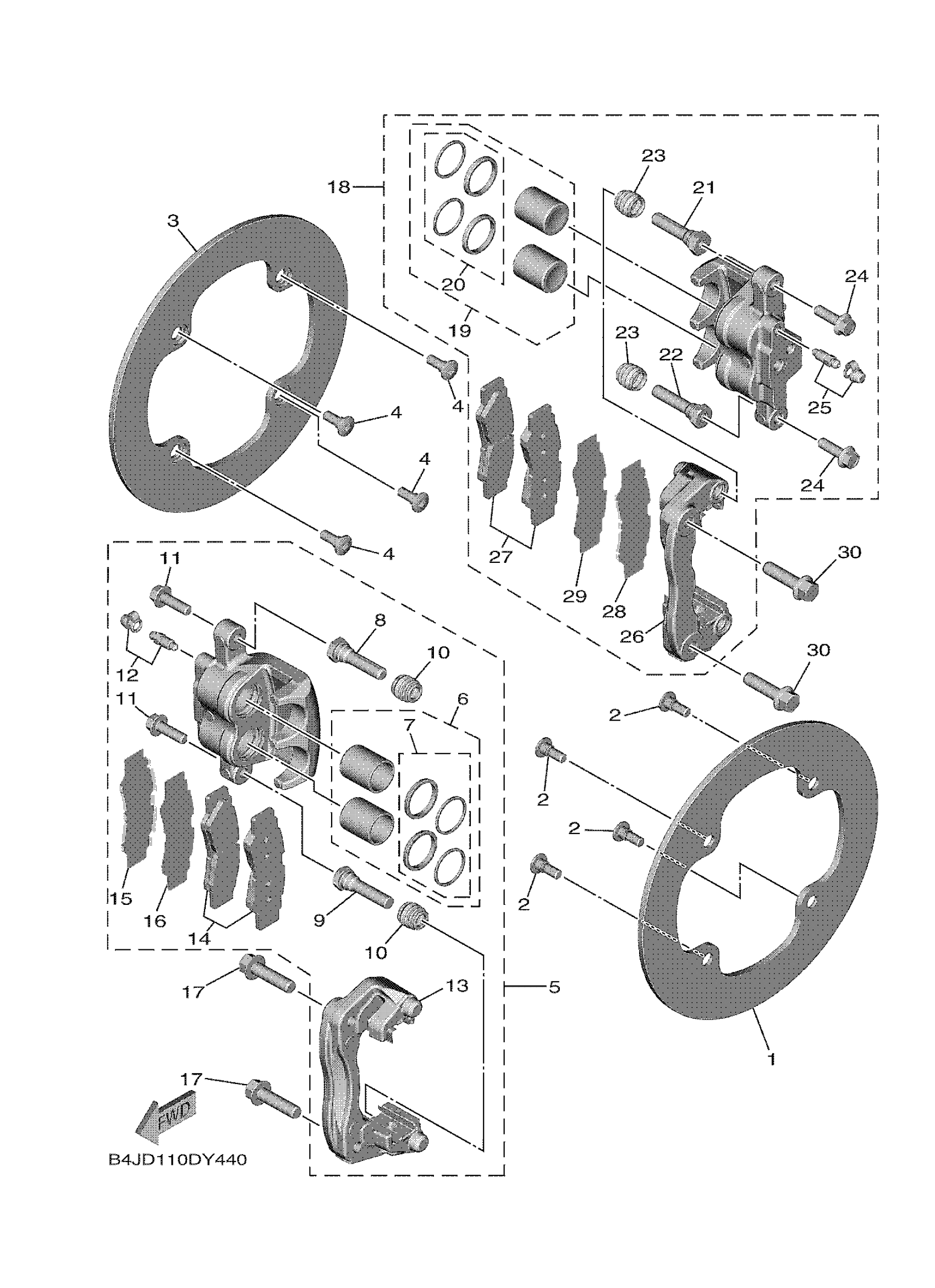

Yamaha YXF10WRLRS (WOLVERINE RMAX4 LE) B4JN 2024 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 1

B5H-F582V-00-00

Unavailable

2

BOLT

90109-08077-00

$2.69

3

DISC, REAR BRAKE 1

B5H-F582V-00-00

Unavailable

4

BOLT

90109-08077-00

$2.69

5

CALIPER ASSY, REAR 1

B4J-2580V-00-00

$340.27

6

PISTON ASSY, CALIPER

3LD-25802-00-00

$45.39

7

CALIPER SEAL KIT

3JD-25803-00-00

$17.39

8

BOLT

2HC-25926-00-00

Unavailable

9

BOLT

2HC-25926-10-00

Unavailable

10

BOOT, CALIPER

2HC-25917-00-00

$3.63

11

BOLT, FITTING

2HC-25833-00-00

$1.78

12

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

13

BRACKET, SUPPORT

2HC-25921-00-00

$77.80

14

BRAKE PAD KIT 2

2HC-25806-00-00

$54.99

15

SHIM, CALIPER

B4J-25827-00-00

Unavailable

16

SHIM, CALIPER

B4J-25828-00-00

Unavailable

17

BOLT, FLANGE

90105-10405-00

Unavailable

18

CALIPER ASSY, REAR 2

B4J-2580W-00-00

Unavailable

19

PISTON ASSY, CALIPER

3LD-25802-00-00

$45.39

20

CALIPER SEAL KIT

3JD-25803-00-00

$17.39

21

BOLT

2HC-25926-00-00

Unavailable

22

BOLT

2HC-25926-10-00

Unavailable

23

BOOT, CALIPER

2HC-25917-00-00

$3.63

24

BOLT, FITTING

2HC-25833-00-00

$1.78

25

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

26

BRACKET, SUPPORT

2HC-25921-00-00

$77.80

27

BRAKE PAD KIT 2

2HC-25806-00-00

$54.99

28

SHIM, CALIPER

B4J-25827-00-00

Unavailable

29

SHIM, CALIPER

B4J-25828-00-00

Unavailable

30

BOLT, FLANGE

90105-10405-00

Unavailable
