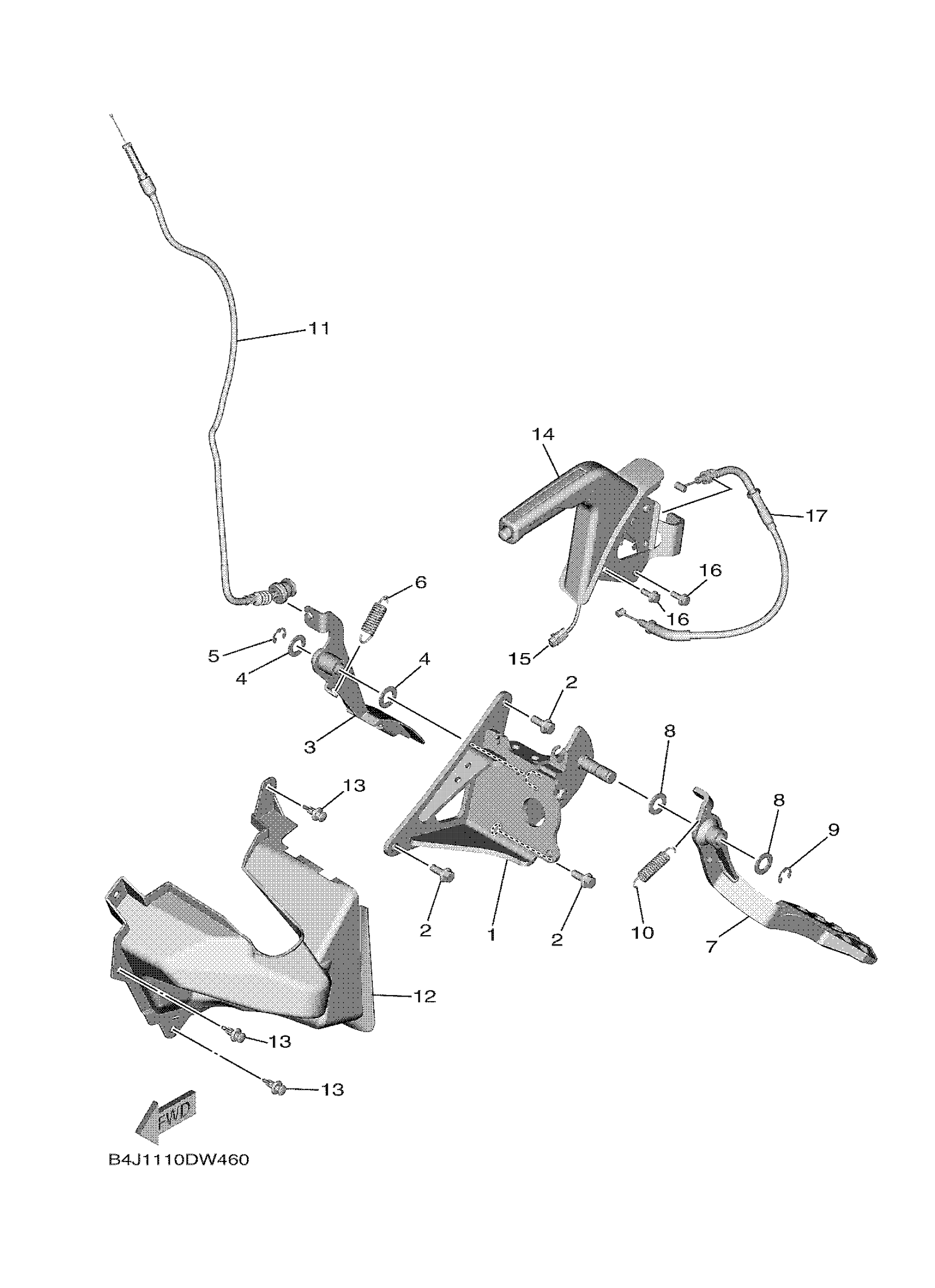

Yamaha YXF10WRLNS (WOLVERINE RMAX 4 EPS LE) B4JB 2022 PEDAL WIRE Diagram

BRACKET,PEDL SUPRT

1XD-F2548-10-00

$61.99

BOLT, FLANGE

95812-08020-00

$2.80

ACCEL PEDAL ASSY

B4J-F7801-00-00

$28.99

WASHER, PLATE

90201-15018-00

$7.49

CIRCLIP (122)

93430-12008-00

$8.49

SPRING, TENSION

90506-23023-00

$5.49

PEDAL, BRAKE

B4J-F7200-00-00

Unavailable

WASHER, PLATE

90201-15018-00

$7.49

CIRCLIP (122)

93430-12008-00

$8.49

SPRING, TENSION (2X4)

90506-20192-00

$7.49

WIRE, THROTTLE 1

B4J-26311-00-00

$48.99

MUD GUARD COMP.

B4J-F1620-00-00

$13.49

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

PARKING LEVER ASSY

B4J-F5690-01-00

$155.99

SWITCH COMP.

B4J-H251S-00-00

Unavailable

BOLT, FLANGE DEEP RECESS

95D32-08016-00

Unavailable

WIRE, BRAKE 1

B4J-26341-02-00

Unavailable
