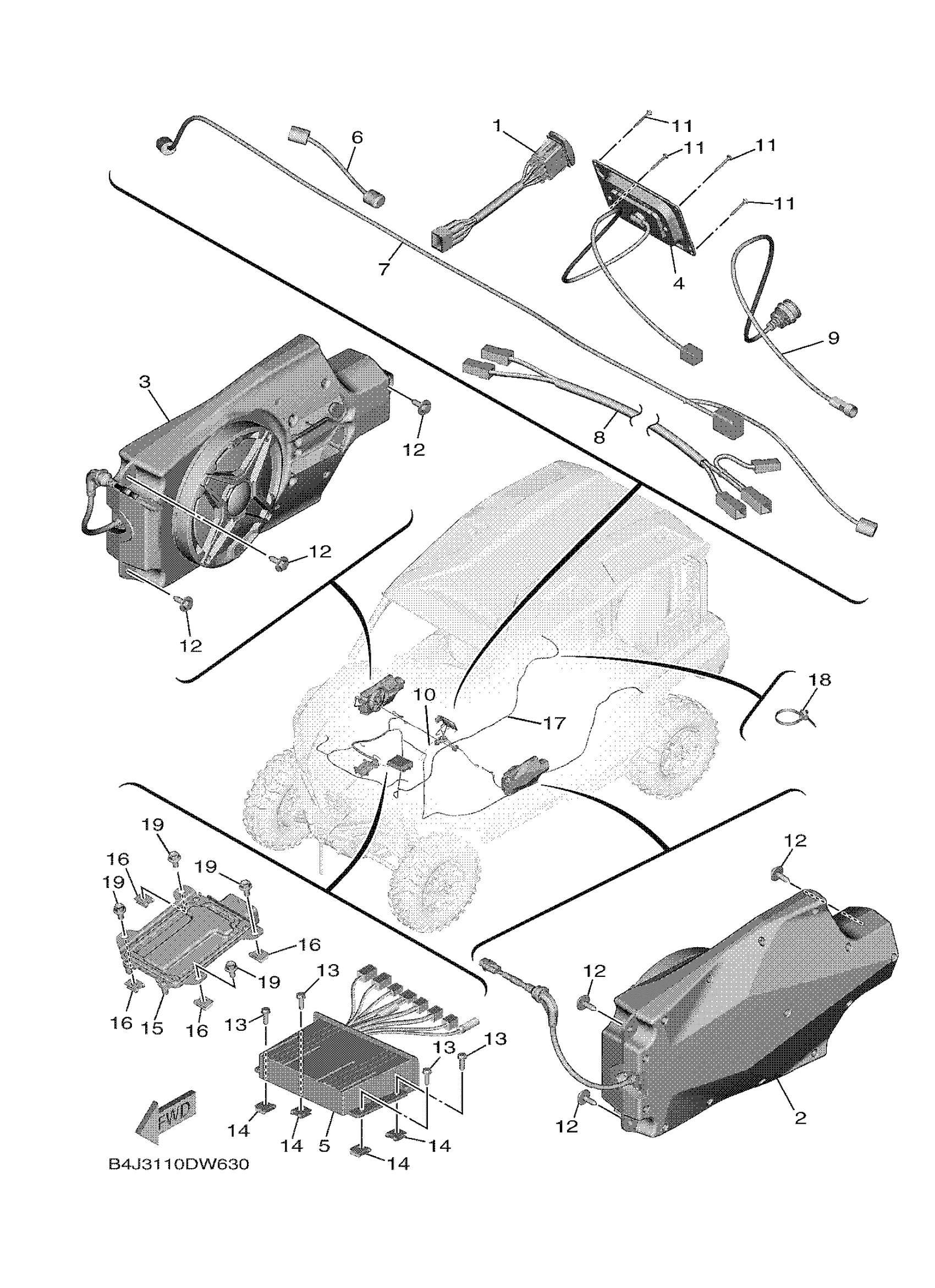

Yamaha YXF10WRLNS (WOLVERINE RMAX 4 EPS LE) B4JB 2022 ELECTRICAL 4 Diagram

#

Description

Price

1

SWITCH ASSY

B4J-H1860-01-00

$127.99

2

SPEAKER ASSY 1

B4J-H8160-V0-00

Unavailable

3

SPEAKER ASSY, 2

B4J-H8170-V0-00

Unavailable

4

RADIO ASSY

B4J-H8110-V0-00

Unavailable

5

AUDIO PILOT NUIT

BG4-H3391-V0-00

Unavailable

6

WIRE HARNESS ASSY

B4J-H2590-V0-00

Unavailable

7

WIRE HARNESS ASSY 1

B4J-H259L-V0-00

Unavailable

8

WIRE HARNESS ASSY 2

B4J-H259M-V0-00

Unavailable

9

LEAD, AUX

B4J-H21G1-V0-00

Unavailable

10

CABLE ANTENNA

BG4-H6268-V0-00

Unavailable

11

SCREW, SPECIAL

B4J-H3358-V0-00

Unavailable

12

BOLT, WITH WASHER

90119-06226-00

$8.49

13

BOLT, SPECIAL

JW1-F3394-00-00

Unavailable

14

NUT, SPRING

90183-05008-00

$9.49

15

CONTROL UNIT ASSY

B4J-H1930-00-00

$500.99

16

NUT, SPRING

90183-062A1-00

Unavailable

17

WIRE, SUB LEAD

B4J-H8189-03-00

Unavailable

18

CLAMP

1NS-F1338-00-00

Unavailable

19

BLOT, FLANGE DEEP RECESS

95D32-06012-00

Unavailable
