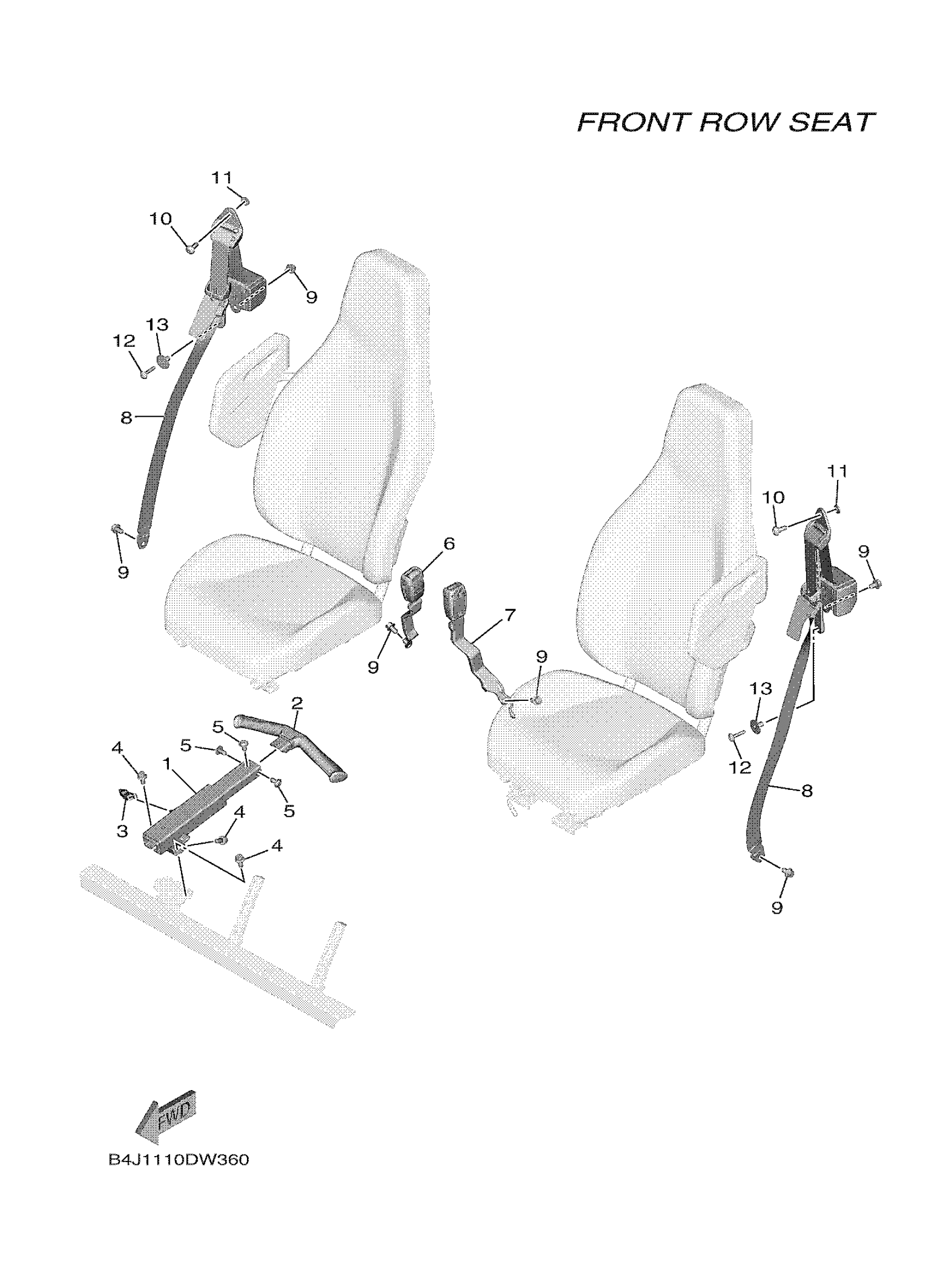

Yamaha YXF10WRATG (WOLVERINE RMAX4 1000 COMPACT R SPEC) BLU8 2026 SEAT 2 Diagram

#

Description
Price

1

ASSIST, GRIP

B4J-F474A-02-00

$160.44

2

GRIP, 1

B4J-F8482-02-00

$62.35

3

LEVER, SEAT

B4J-F477F-00-00

$1.89

4

BOLT, FLANGE(JN5)

95817-08016-00

$3.85

5

SCREW

90149-08805-00

$0.84

6

FR. BELT RECEIVER

B4J-F470R-01-00

$46.74

7

FR. BELT RECEIVER

B4J-F470R-12-00

$97.41

8

FR. SEAT BELT ASSY

B4J-F470L-02-00

$136.79

9

BOLT, FLANGE DEEP RECESS

95D32-12020-00

$2.11

10

BOLT,HEX. SOCKET B

90111-11800-00

$2.14

11

WASHER, PLATE (583)

90201-12593-00

$6.35

12

BOLT, HEXAGON SOCKET BUTTON

90111-06142-00

$9.27

13

COLLAR (17W)

90387-075H4-00

$6.02
