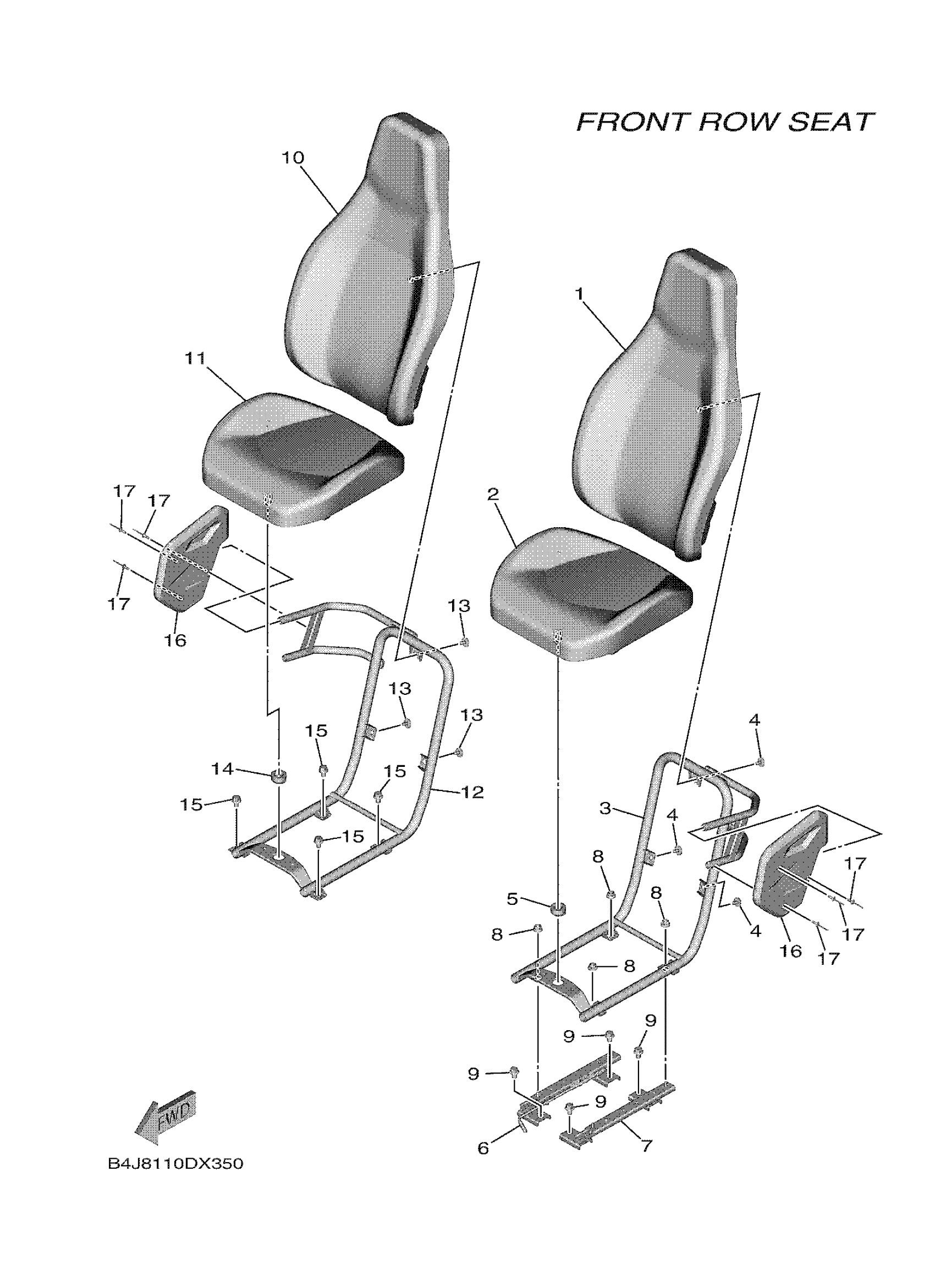

Yamaha YXF10WRATG (WOLVERINE RMAX4 1000 COMPACT R SPEC) BLU8 2026 SEAT Diagram

Description

Price

SEAT BACK ASSY

BG4-F4790-12-00

$212.99

SEATASSY2

BG4-K8420-11-00

$185.99

FRAME, SEAT 1

B4J-F473C-02-00

$156.99

BOLT,HEX. SOCKET BUTTON

90111-06180-00

$2.02

GROMMET

1XD-F4742-00-00

$3.69

ADJUSTER ASSY

B4J-F7270-01-00

$61.99

ADJUSTER ASSY

B4J-F7260-01-00

$46.99

NUT, SELF-LOCKING

95602-08200-00

$3.20

BOLT, FLANGE

95817-08012-00

$5.49
