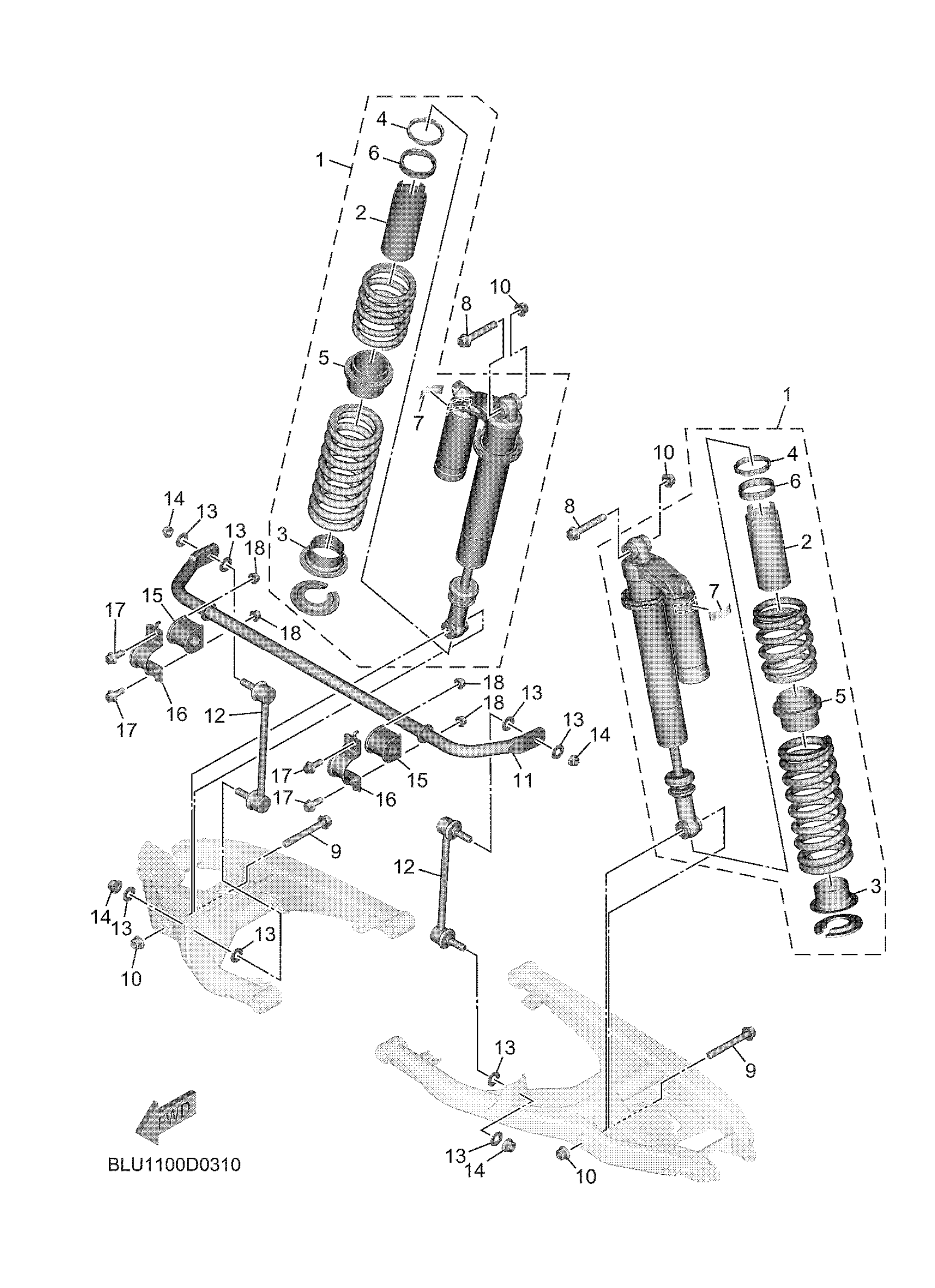

Yamaha YXF10WRATG (WOLVERINE RMAX4 1000 COMPACT R SPEC) BLU8 2026 REAR SUSPENSION Diagram

#

Description
Price

1

RR. SHOCK ABSORBER

BLU-F220T-00-00

Unavailable

2

SLEEVE

BKP-F2819-00-00

$177.99

3

CUP

BKP-F5951-00-00

Unavailable

4

RING, HOLD

BKP-F2973-00-00

Unavailable

5

SLIDER 1

BKP-F388D-00-00

$33.99

6

RING, HOLD 2

BKP-F2981-00-00

Unavailable

7

LABEL, WARNING

B4M-F2259-00-00

$1.22

8

BOLT, FLANGE

90105-12050-00

$11.49

9

BOLT, FLANGE

90105-12820-00

Unavailable

10

NUT, SELF-LOCKING

90185-12002-00

$12.49

11

BAR, STABILIZER

BLU-G7491-00-00

Unavailable

12

JOINT, STABILIZER

B4J-F385L-01-00

$92.99

13

WASHER, PLATE

90201-12045-00

$5.60

14

NUT, SELF-LOCKING

90185-12002-00

$12.49

15

BUSH, STABILIZER F

BLU-F386G-00-00

$13.49

16

COVER, STABILIZER

1XD-F386H-00-00

Unavailable

17

BOLT, FLANGE

90105-10489-00

Unavailable

18

NUT, SELF-LOCKING

90185-10011-00

Unavailable
