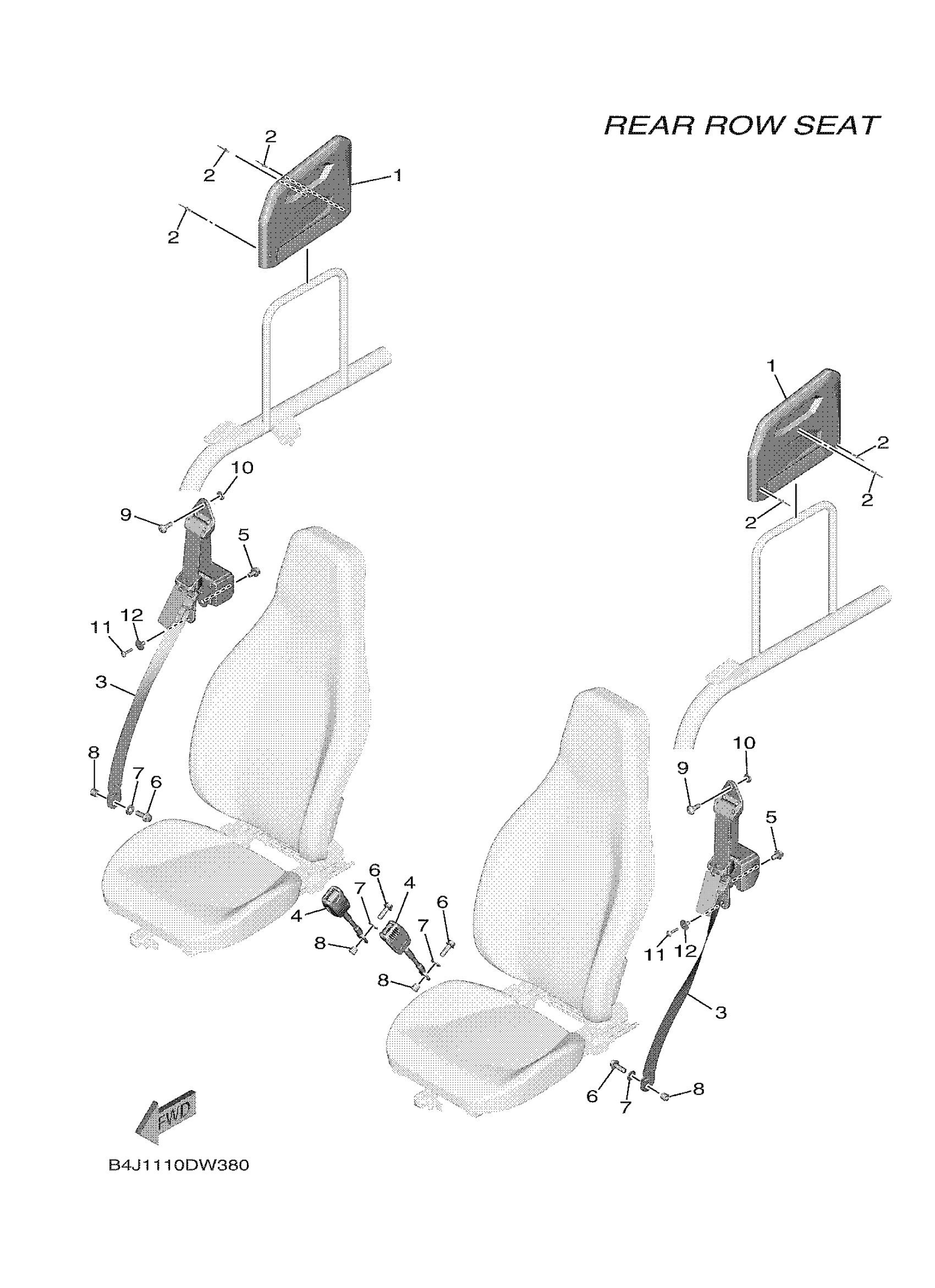

Yamaha YXF10WRASD (WOLVERINE RMAX4 1000 COMPACT R SPEC) BLU2 2025 SEAT 4 Diagram

#

Description
Price

1

COVER,2

BG4-F475X-00-00

$30.21

2

RIVET, BLIND(J50)

90267-49152-00

$2.23

3

REAR SEAT BELT ASS

B4J-F470N-02-00

$143.41

4

RR. BELT RECEIVER

B4J-F470S-00-00

$29.86

5

BOLT, FLANGE DEEP RECESS

95D32-12020-00

$2.11

6

BOLT, FLANGE DEEP RECESS

95D32-12035-00

$2.70

7

WASHER, PLATE

90201-13020-00

$2.83

8

COLLAR

90387-12869-00

$19.38

9

BOLT,HEX. SOCKET B

90111-11800-00

$2.14

10

WASHER, PLATE (583)

90201-12593-00

$6.35

11

BOLT, HEXAGON SOCKET BUTTON

90111-06142-00

$9.27

12

COLLAR (17W)

90387-075H4-00

$6.02
