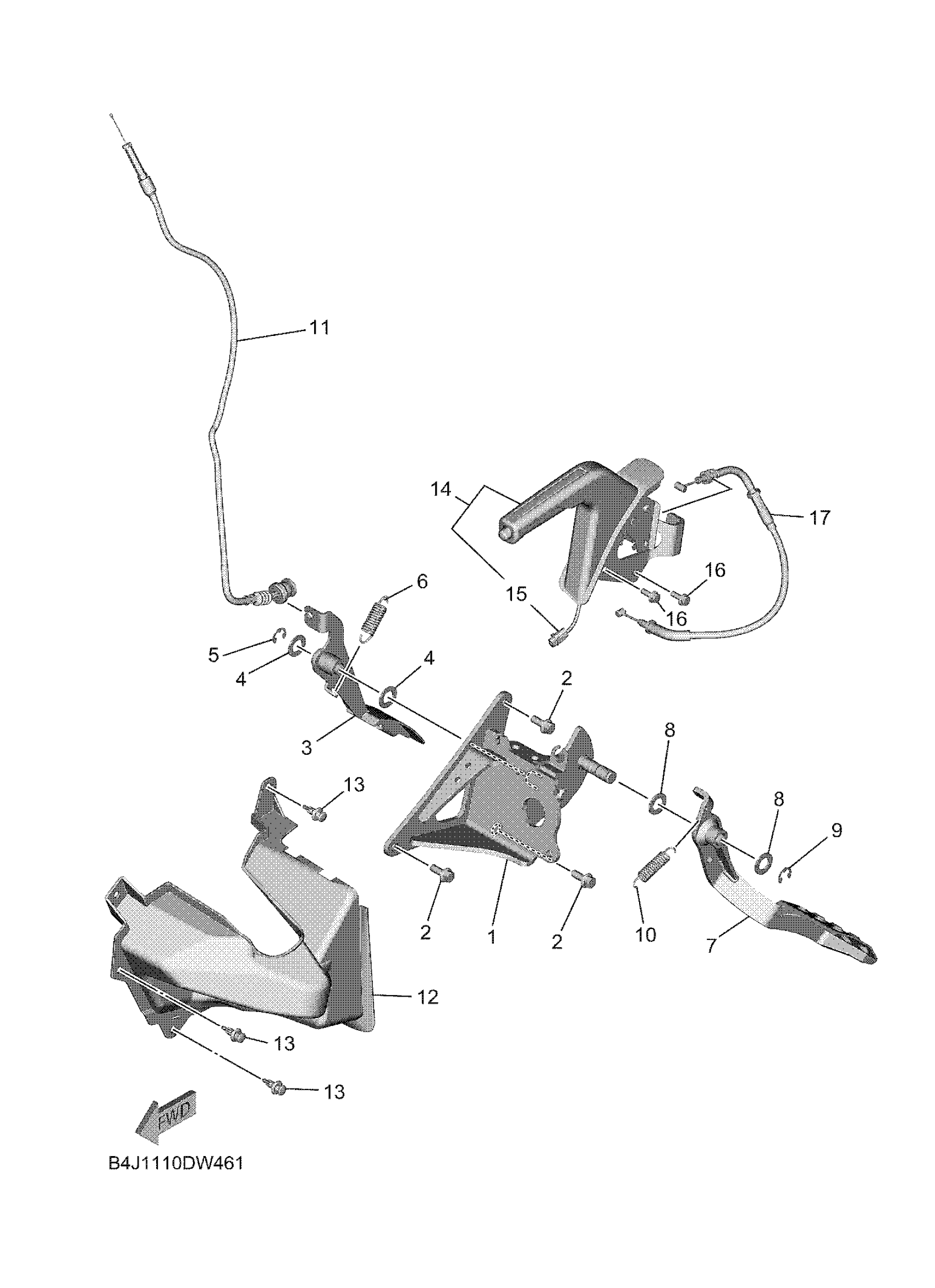

Yamaha YXF10WRASD (WOLVERINE RMAX4 1000 COMPACT R SPEC) BLU2 2025 PEDAL WIRE Diagram

#

Description
Price

1

BRACKET,PEDL SUPRT

1XD-F2548-10-00

$62.62

2

BOLT, FLANGE

95812-08020-00

$1.58

3

ACCEL PEDAL ASSY

B4J-F7801-00-00

$21.36

4

WASHER, PLATE

90201-15018-00

$5.90

5

CIRCLIP (122)

93430-12008-00

$4.89

6

SPRING, TENSION

90506-23023-00

$3.91

7

PEDAL, BRAKE

B4J-F7200-00-00

Unavailable

8

WASHER, PLATE

90201-15018-00

$5.90

9

CIRCLIP (122)

93430-12008-00

$4.89

10

SPRING, TENSION (2X4)

90506-20192-00

$5.30

11

WIRE, THROTTLE 1

B4J-26311-00-00

$42.79

12

MUD GUARD COMP.

B4J-F1620-00-00

$9.08

13

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

14

PARKING LEVER ASSY

B4J-F5690-01-00

$96.26

15

SWITCH COMP.

B4J-H251S-00-00

Unavailable

16

BOLT, FLANGE DEEP RECESS

95D32-08016-00

Unavailable

17

WIRE, BRAKE 1

B4J-26341-02-00

Unavailable
