- YXF10WRASD (WOLVERINE RMAX4 1000 COMPACT R SPEC) BLU2 2025
FRONT SUSPENSION & WHEEL

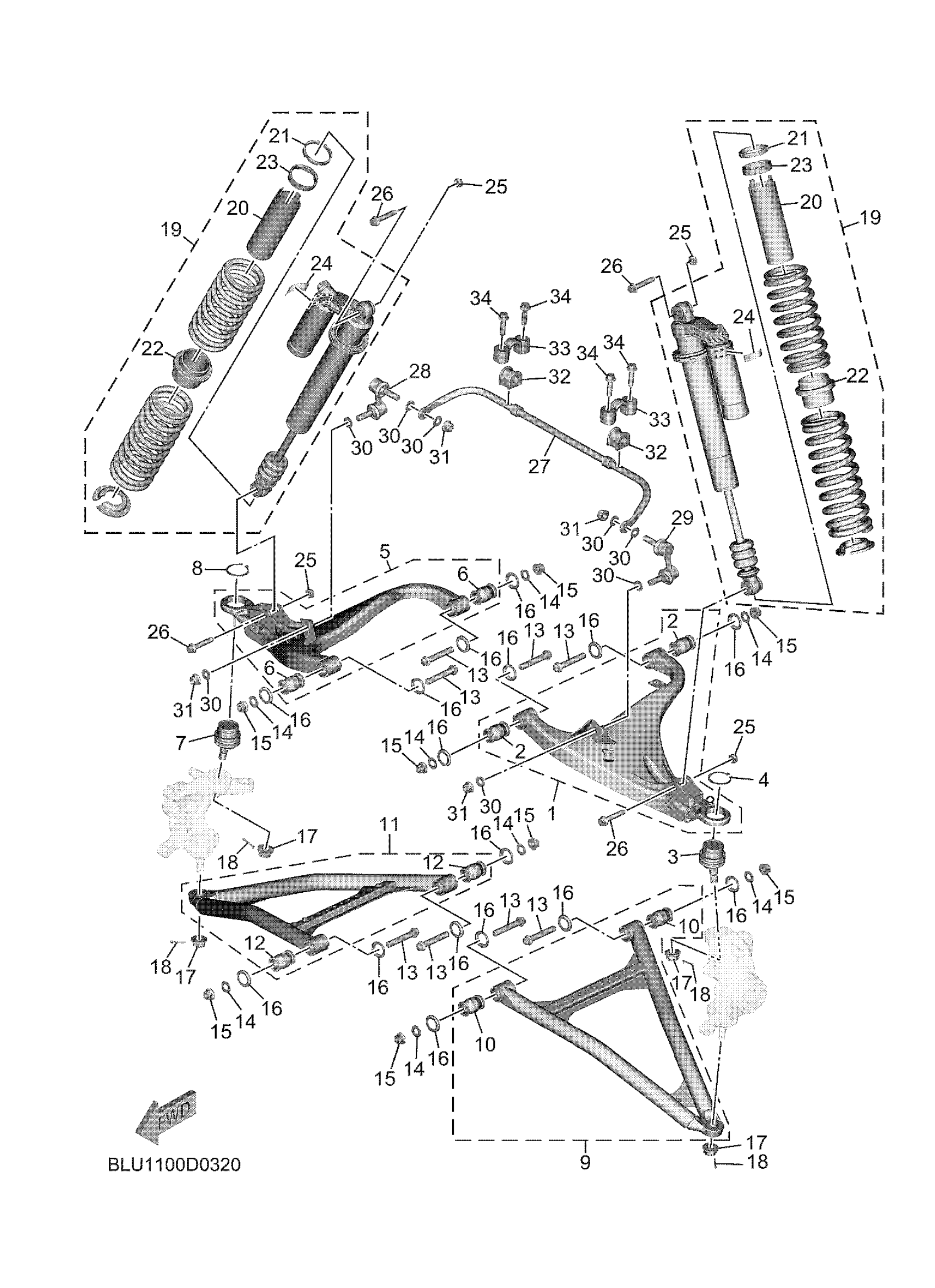

Yamaha YXF10WRASD (WOLVERINE RMAX4 1000 COMPACT R SPEC) BLU2 2025 FRONT SUSPENSION & WHEEL Diagram
#
1
FRONT UPPER ARM CO
B4J-F3540-30-00
$184.99
2
BUSH
B4J-F3526-01-00
Unavailable
3
BALL JOINT 2
2HC-23579-00-00
$96.99
4
CIRCLIP
93410-42096-00
$2.55
5
FRONT UPPER ARM CO
B4J-F3550-30-00
$184.99
6
BUSH
B4J-F3526-01-00
Unavailable
7
BALL JOINT 2
2HC-23579-00-00
$96.99
8
CIRCLIP
93410-42096-00
$2.55
9
FRONT LOWER ARM CO
B4J-F3570-10-00
$127.99
10
BUSH
B4J-F3526-01-00
Unavailable
11
FRONT LOWER ARM CO
B4J-F3580-10-00
Unavailable
12
BUSH
B4J-F3526-01-00
Unavailable
13
BOLT, FLANGE
90105-12095-00
$9.49
14
WASHER, PLATE
90201-12045-00
$5.60
15
NUT, SELF-LOCKING
90185-12002-00
$12.49
16
COVER, THRUST 1
B4J-F3517-00-00
Unavailable
17
NUT, CASTLE
90171-14005-00
Unavailable
18
PIN, COTTER
91401-30025-00
Unavailable
19
FR. SHOCK ABSORBER
BKP-F350A-00-00
Unavailable
20
SLEEVE
BKP-F2819-00-00
Unavailable
21
RING, HOLD
BKP-F2973-00-00
Unavailable
22
SLIDER 1
BKP-F388D-00-00
Unavailable
23
RING, HOLD 2
BKP-F2981-00-00
Unavailable
24
LABEL, WARNING
B4M-F2259-00-00
Unavailable
25
NUT, SELF-LOCKING
90185-10012-00
Unavailable
26
BOLT, FLANGE
90105-10199-00
Unavailable
27
BAR, STABILIZER FR
BLU-F386E-01-00
Unavailable
28
JOINT, STABILIZER 1
BAS-F385L-04-00
Unavailable
29
JOINT, STABILIZER 2
BAS-F385M-05-00
Unavailable
30
WASHER, PLATE
90201-12045-00
$5.60
31
NUT, SELF-LOCKING
90185-12002-00
$12.49
32
BUSH
BLU-F376B-00-00
Unavailable
33
BRKT., STABILIZER
BLU-F386B-00-00
Unavailable
34
BOLT, FLANGE
95817-10040-00
Unavailable
