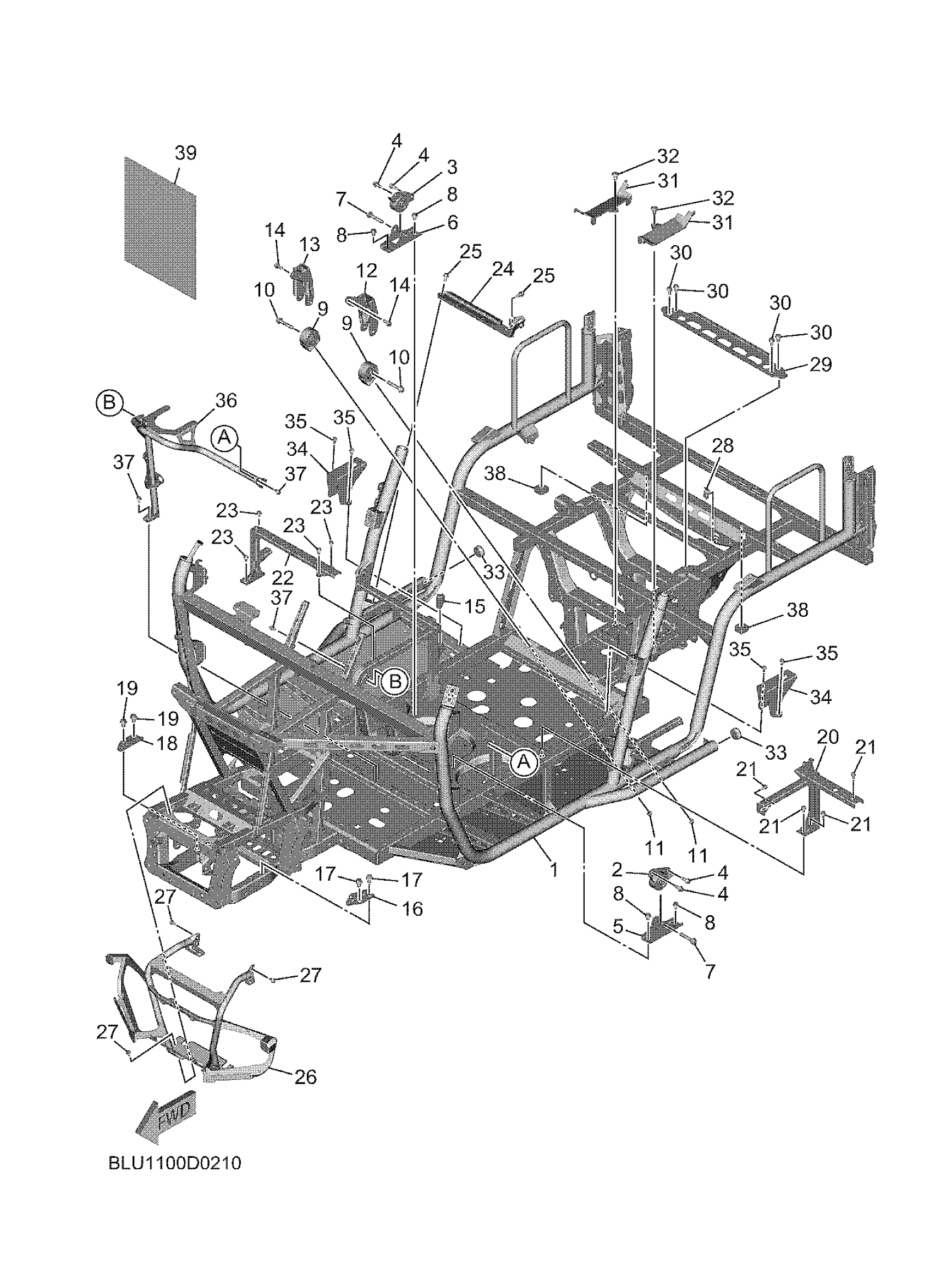

Yamaha YXF10WRASD (WOLVERINE RMAX4 1000 COMPACT R SPEC) BLU2 2025 FRAME Diagram

#

Description
Price

1

FRAME COMP.

BLU-F1110-01-00

Unavailable

2

ENGINE BRACKET COMP.

BKP-21410-10-00

Unavailable

3

ENGINE BRACKET COMP. 2

BKP-21420-10-00

Unavailable

4

BOLT, FLANGE DEEP RECESS

95D32-10025-00

Unavailable

5

BRACKET 5

BG4-F161F-00-00

$12.49

6

BRACKET 3

BG4-F161A-00-00

$11.49

7

BOLT, FLANGE DEEP RECESS

95D32-12065-00

Unavailable

8

BOLT, FLANGE DEEP RECESS

95D32-10016-00

$1.06

9

BRACKET, ENGINE 1

BKP-21490-00-00

Unavailable

10

BOLT, FLANGE DEEP RECESS

95D32-12065-00

Unavailable

11

NUT

90179-10033-00

Unavailable

12

SUPPORT, ENGINE

B4J-F1283-04-00

Unavailable

13

SUPT., ENGINE 2

B4J-F1284-05-00

Unavailable

14

BOLT, FLANGE DEEP RECESS

95D37-10025-00

$1.96

15

GROMMET

BKP-F1773-00-00

Unavailable

16

BRACKET 2

B4J-F1239-00-00

Unavailable

17

BOLT, FLANGE

95812-12020-00

Unavailable

18

BRACKET

B4J-F1249-00-00

Unavailable

19

BOLT, FLANGE

95812-12020-00

Unavailable

20

LUG, SEAT RAIL LH.

BG4-F1143-11-00

Unavailable

21

BOLT, FLANGE

90105-08867-00

Unavailable

22

MEMBER, SEAT SUPPO

BG4-F255G-01-00

Unavailable

23

BOLT, FLANGE

90105-08867-00

Unavailable

24

BRACKET, LOCK 2

BG4-F287M-00-00

Unavailable

25

BOLT, FLANGE

95817-10020-00

Unavailable

26

DAMPER, BRACE ASSY

B4J-F110J-01-00

Unavailable

27

BOLT, FLANGE

90105-08867-00

Unavailable

28

STAY,MUFFLER 2

BG4-F1446-11-00

Unavailable

29

PROTECTOR 1

B4J-F834V-00-00

Unavailable

30

BOLT, FLANGE

95817-10020-00

Unavailable

31

COVER 3

2MB-F198J-01-00

Unavailable

32

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

33

PLUG (FRONT BUMPER)

5UG-F2417-00-00

Unavailable

34

BRACKET, FOOTREST

BG4-F144H-00-00

Unavailable

35

BOLT, FLANGE

90105-08867-00

Unavailable

36

REINFORCEMENT, FRA

BYP-F1986-00-00

Unavailable

37

BOLT, FLANGE

90105-08867-00

Unavailable

38

DAMPER 1

B4J-F2483-00-00

Unavailable

39

POUCH

1P0-F8186-01-00

Unavailable
