- YXF10WRASD (WOLVERINE RMAX4 1000 COMPACT R SPEC) BLU2 2025
CRANKCASE COVER 1

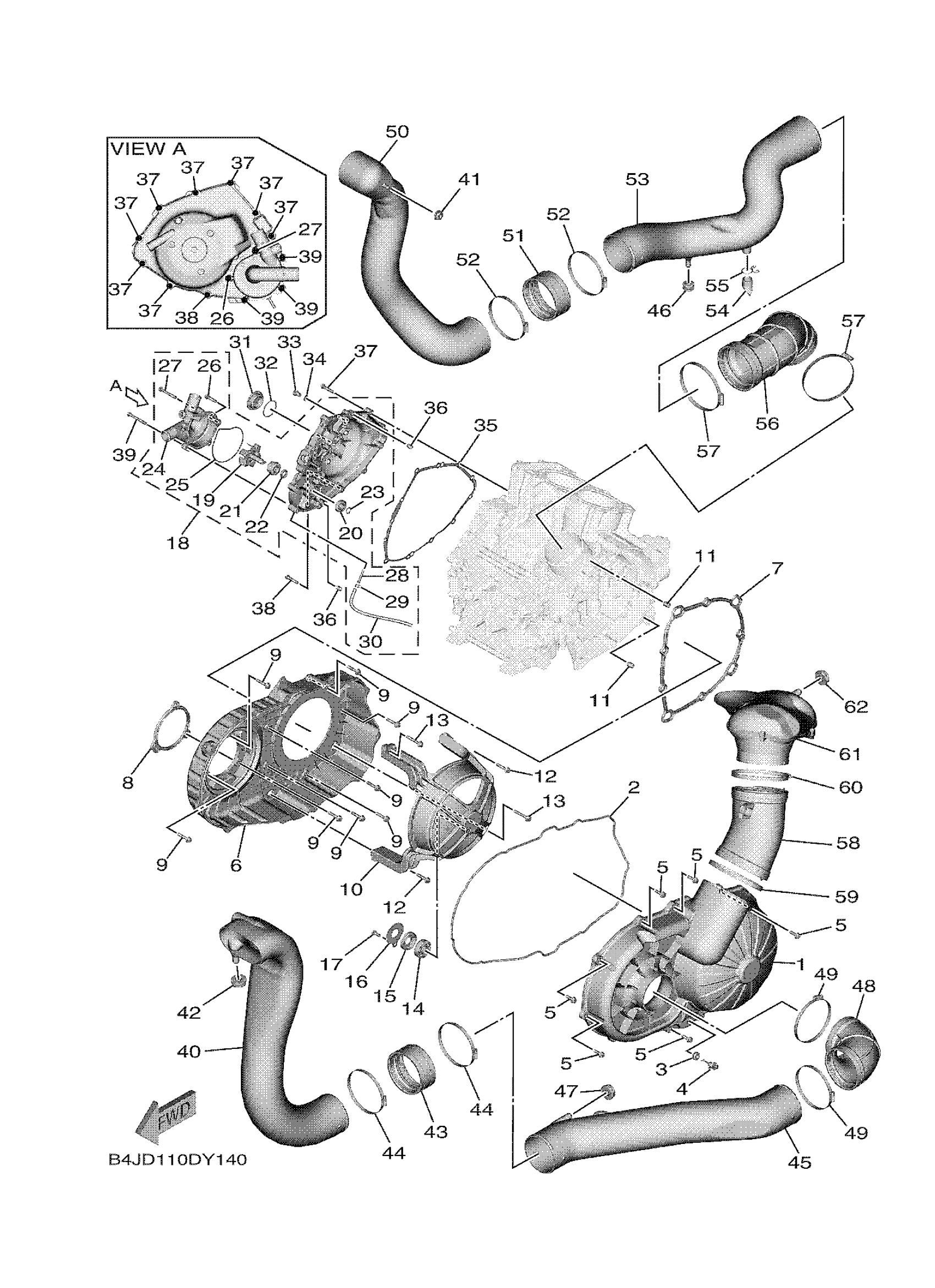

Yamaha YXF10WRASD (WOLVERINE RMAX4 1000 COMPACT R SPEC) BLU2 2025 CRANKCASE COVER 1 Diagram
#
1
COVER, CRANKCASE 1
B4J-E5411-00-00
Unavailable
2
SEAL, CRANKCASE
B4J-E5379-00-00
$8.49
3
GROMMET
B4J-E5357-00-00
$3.50
4
PLUG, DRAIN
B4J-E5351-00-00
Unavailable
5
BOLT, FLANGE
95817-06020-00
$3.81
6
COVER, CRANKCASE 2
B4J-E5421-00-00
$103.99
7
GASKET
B4J-E5453-00-00
Unavailable
8
SEAL, CRANKCASE
B4J-E5315-00-00
Unavailable
9
95822-06030
95822-06030-00
$1.38
10
HOUSING, BEARING
B4J-15442-00-00
$115.99
11
PIN, DOWEL(3VD)
99530-10114-00
$2.55
12
95822-06030
95822-06030-00
$1.38
13
BOLT, FLANGE
95817-06040-00
$5.60
14
BEARING (5Y1)
93306-00426-00
$42.99
15
OIL SEAL(1YU)
93102-20371-00
$11.49
16
PLATE, BEARING COVER
B4J-15381-00-00
Unavailable
17
BOLT, FLANGE
95022-06016-00
Unavailable
18
CRANKCASE COVER AS
B1R-E5430-00-00
Unavailable
19
IMPELLER SHAFT ASSY
B4D-E2450-00-00
Unavailable
20
BRG,R-B 6001 28MM 28G KY
93306-00105-00
Unavailable
21
SEAL, MECHANICAL
4C8-12438-00-00
Unavailable
22
OIL SEAL
93101-12173-00
Unavailable
23
CIRCLIP(10Y)
99009-12400-00
Unavailable
24
COVER, HOUSING
B1R-E2422-00-00
Unavailable
25
O-RING
B4D-E2439-00-00
Unavailable
26
BOLT, FLANGE
95022-06025-00
Unavailable
27
BOLT, FLANGE
95022-06045-00
Unavailable
28
PIPE, DRAIN
B4D-E243K-00-00
Unavailable
29
CLIP
90467-070A0-00
Unavailable
30
HOSE (L200)
90445-07176-00
Unavailable
31
PLUG, STRAIGHT SCREW
90340-36004-00
Unavailable
32
O-RING
93210-35804-00
Unavailable
33
BOLT, BUTTON HEAD
92012-08012-00
Unavailable
34
. GASKET
90430-08143-00
Unavailable
35
GASKET, CRANKCASE COVER 3
BG4-15462-00-00
Unavailable
36
PIN, DOWEL
99530-08012-00
Unavailable
37
BOLT, FLANGE
95022-06030-00
Unavailable
38
BOLT, FLANGE
90105-06223-00
Unavailable
39
BOLT, FLANGE
90105-06162-00
Unavailable
40
DUCT, AIR
B4J-E5471-01-00
Unavailable
41
GROMMET
90480-13014-00
Unavailable
42
GROMMET (1L9)
90480-22196-00
Unavailable
43
SEAL
BG4-E4476-10-00
Unavailable
44
HOSE CLAMP ASSY
90450-99806-00
Unavailable
45
DUCT, AIR
B4J-E5477-01-00
Unavailable
46
GROMMET
90480-18411-00
Unavailable
47
GROMMET (1L9)
90480-22196-00
Unavailable
48
SEAL, AIR DUCT
BG4-E547B-00-00
Unavailable
49
HOSE CLAMP ASSY
90450-99806-00
Unavailable
50
DUCT, AIR
B4J-E5475-00-00
Unavailable
51
SEAL
BG4-E4476-10-00
Unavailable
52
HOSE CLAMP ASSY
90450-99806-00
Unavailable
53
DUCT, AIR
B4J-E5475-10-00
Unavailable
54
SEAL
59V-14457-00-00
Unavailable
55
CLIP
90467-220A1-00
Unavailable
56
SEAL, AIR DUCT
BG4-E5474-01-00
Unavailable
57
HOSE CLAMP ASSY
90450-99806-00
Unavailable
58
SEAL, AIR DUCT
B4J-E5472-00-00
Unavailable
59
CLAMP 2
B4J-E5484-01-00
Unavailable
60
BAND, CLAMP
B4J-G2821-01-00
Unavailable
61
DUCT, AIR
B4J-E5473-10-00
Unavailable
62
GROMMET (1L9)
90480-22196-00
Unavailable
