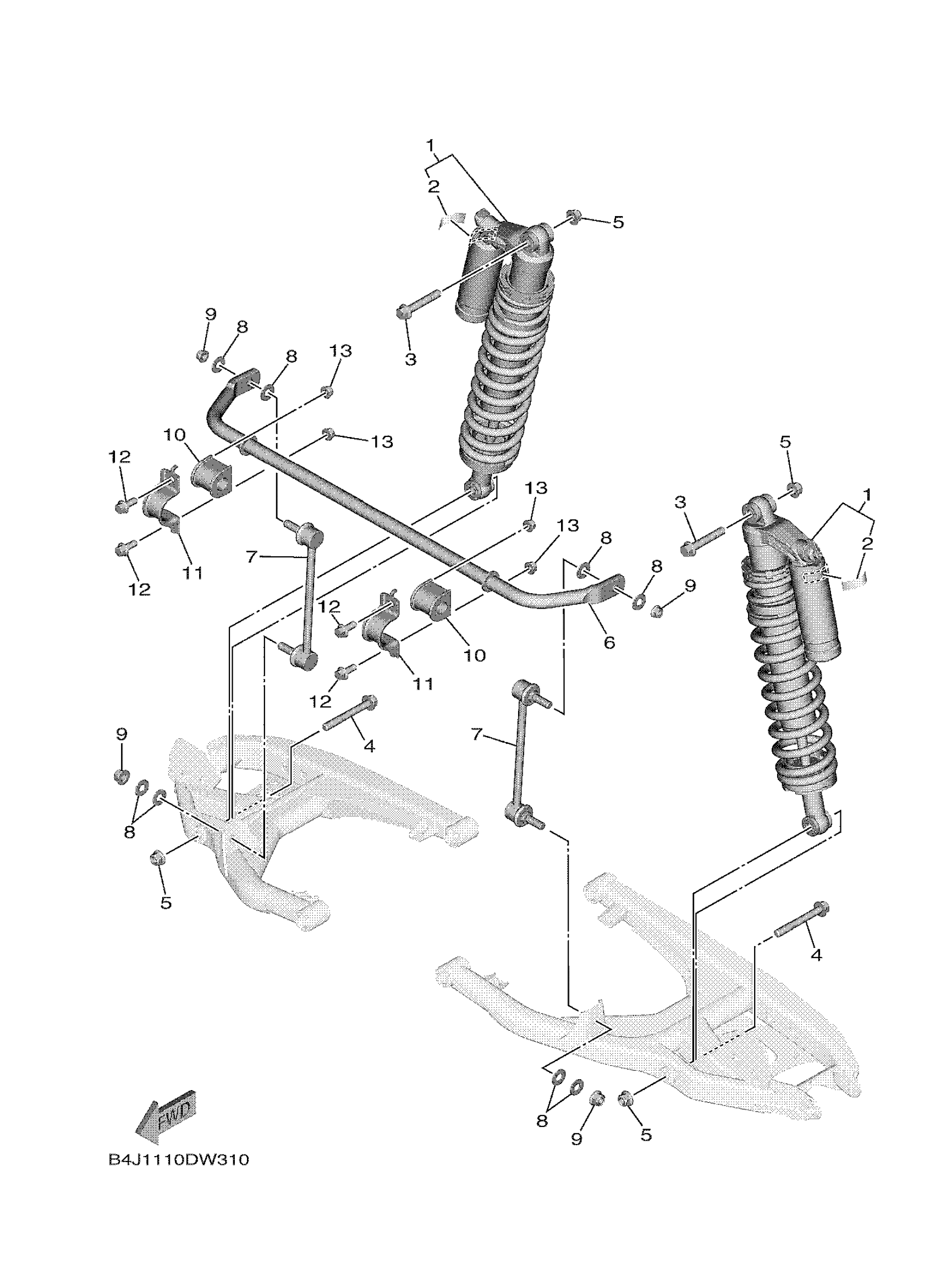

Yamaha YXF10WRARW (WOLVERINE RMAX4 R SPEC) B4JL 2024 REAR SUSPENSION Diagram

#

Description
Price

1

RR. SHOCK ABSORBER

B4J-F220T-02-00

$872.99

2

LABEL, WARNING

B4M-F2259-00-00

$1.24

3

BOLT, FLANGE

90105-12050-00

$9.45

4

BOLT, FLANGE

95812-12090-00

$5.98

5

NUT, SELF-LOCKING

90185-12002-00

$9.38

6

BAR, STABILIZER

B4J-G7491-00-00

$99.36

7

JOINT, STABILIZER

B4J-F385L-01-00

$71.04

8

WASHER, PLATE

90201-12045-00

$4.81

9

NUT, SELF-LOCKING

90185-12002-00

$9.38

10

BUSH, STABILIZER F

BAR-F386G-01-00

Unavailable

11

COVER, STABILIZER

1XD-F386H-00-00

$6.79

12

BOLT, FLANGE

90105-10489-00

$3.03

13

NUT, SELF-LOCKING

90185-10818-00

Unavailable
