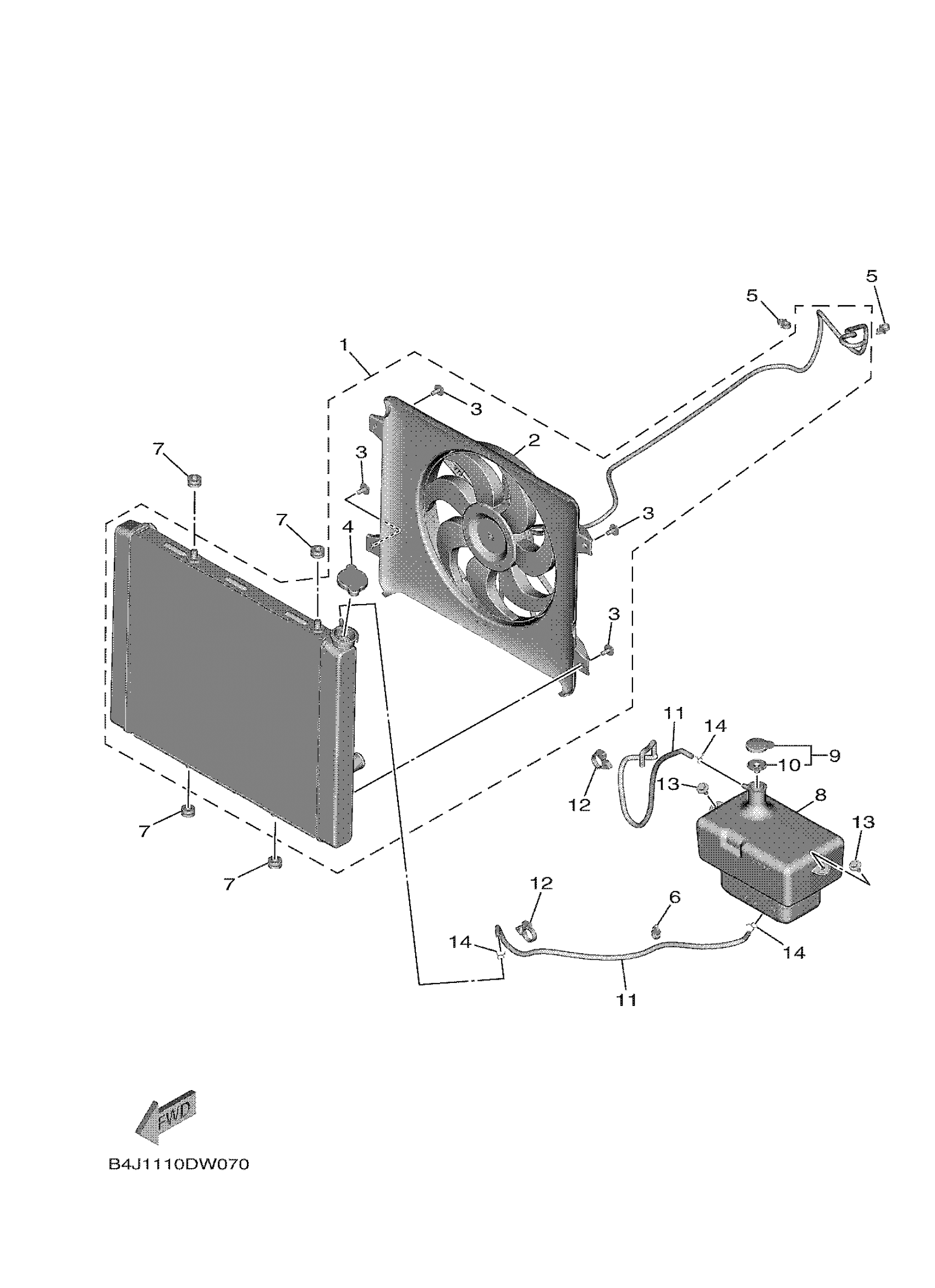

Yamaha YXF10WRARW (WOLVERINE RMAX4 R SPEC) B4JL 2024 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

BG4-E2460-03-00

Unavailable

2

BLOWER ASSY

BG4-E2405-02-00

Unavailable

3

BOLT, BLOWER HOLDI

1XD-E2675-00-00

$1.66

4

CAP, RADIATOR

1XD-E2462-00-00

$15.49

5

CLAMP

90464-12830-00

$1.49

6

CLAMP

90464-12830-00

$1.49

7

GROMMET(2GH)

90480-12475-00

$8.49

8

TANK, RECOVERY

B4J-F1871-00-00

$23.99

9

CAP

1AA-21815-00-00

$12.99

10

GASKET

1AA-21874-00-00

$7.99

11

HOSE (L510)

90445-08850-00

$1.75

12

CLAMP

90464-20010-00

$3.23

13

BOLT, WITH WASHER

90119-06226-00

$8.49

14

CLIP 101235600

90467-08003-00

$10.49
