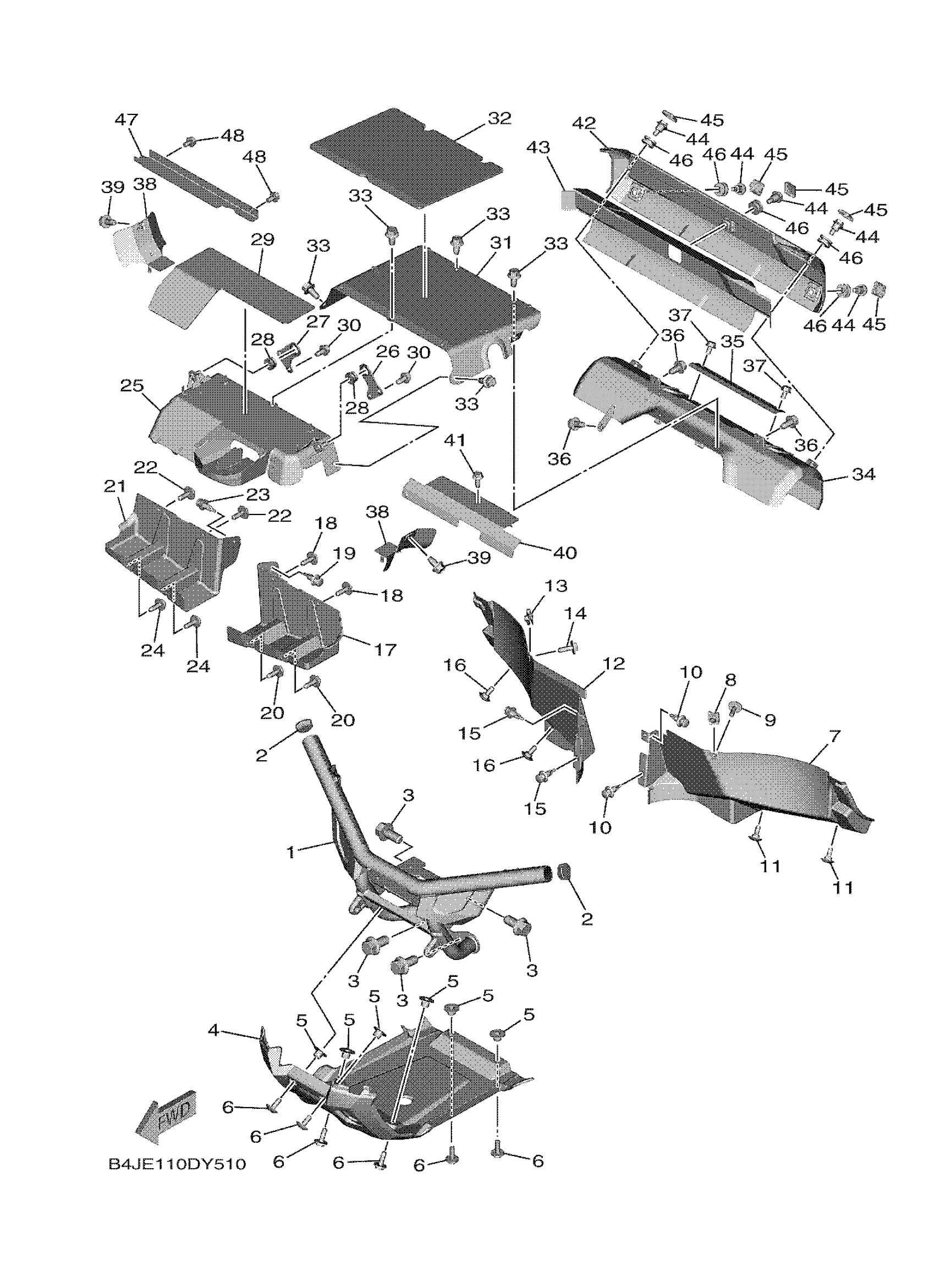

Yamaha YXF10WRARW (WOLVERINE RMAX4 R SPEC) B4JL 2024 GUARD Diagram
#
10
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
15
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
17
MUD GUARD 1
BG4-F2327-00-00
Unavailable
19
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
20
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
21
MUD GUARD 2
BG4-F2328-00-00
Unavailable
23
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
24
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
25
INSULATOR, HEAT
B4J-F2898-10-00
Unavailable
26
STAY, 4
B4J-F846W-00-00
Unavailable
27
STAY 5
B4J-F846X-00-00
Unavailable
28
GROMMET
90480-18019-00
Unavailable
29
DAMPER 1
B4J-F8415-00-00
Unavailable
30
BOLT, FLANGE
90105-08867-00
Unavailable
31
SHIELD, HEAT
B4J-F3892-02-00
Unavailable
32
DAMPER 3
B4J-F8425-00-00
Unavailable
33
BOLT, FLANGE
90105-08867-00
Unavailable
34
INSULATOR, MOUNTIN
B4J-F2891-11-00
Unavailable
35
INSULATOR, MOUNTIN
BG4-F2894-00-00
Unavailable
36
BOLT, FLANGE
90105-08867-00
Unavailable
37
BLOT, FLANGE DEEP RECESS
95D32-06010-00
Unavailable
38
PROTECTOR 1
BAR-F2825-00-00
Unavailable
39
BOLT, FLANGE
90105-08867-00
Unavailable
40
PROTECTOR 1
B4J-F2825-02-00
Unavailable
41
BOLT, FLANGE
90105-06831-00
Unavailable
42
PROTECTOR, MUFFLER
BKP-F194H-00-00
Unavailable
43
SHEET, INSULATOR
B4J-HA7E0-00-00
Unavailable
44
BOLT
90109-06214-00
Unavailable
45
CAP
2MB-F143A-00-00
Unavailable
46
GROMMET
90480-12025-00
Unavailable
47
PROTECTOR 2
B4J-F834W-01-00
Unavailable
48
BLOT, FLANGE DEEP RECESS
95D32-06010-00
Unavailable
