CRANKSHAFT & PISTON

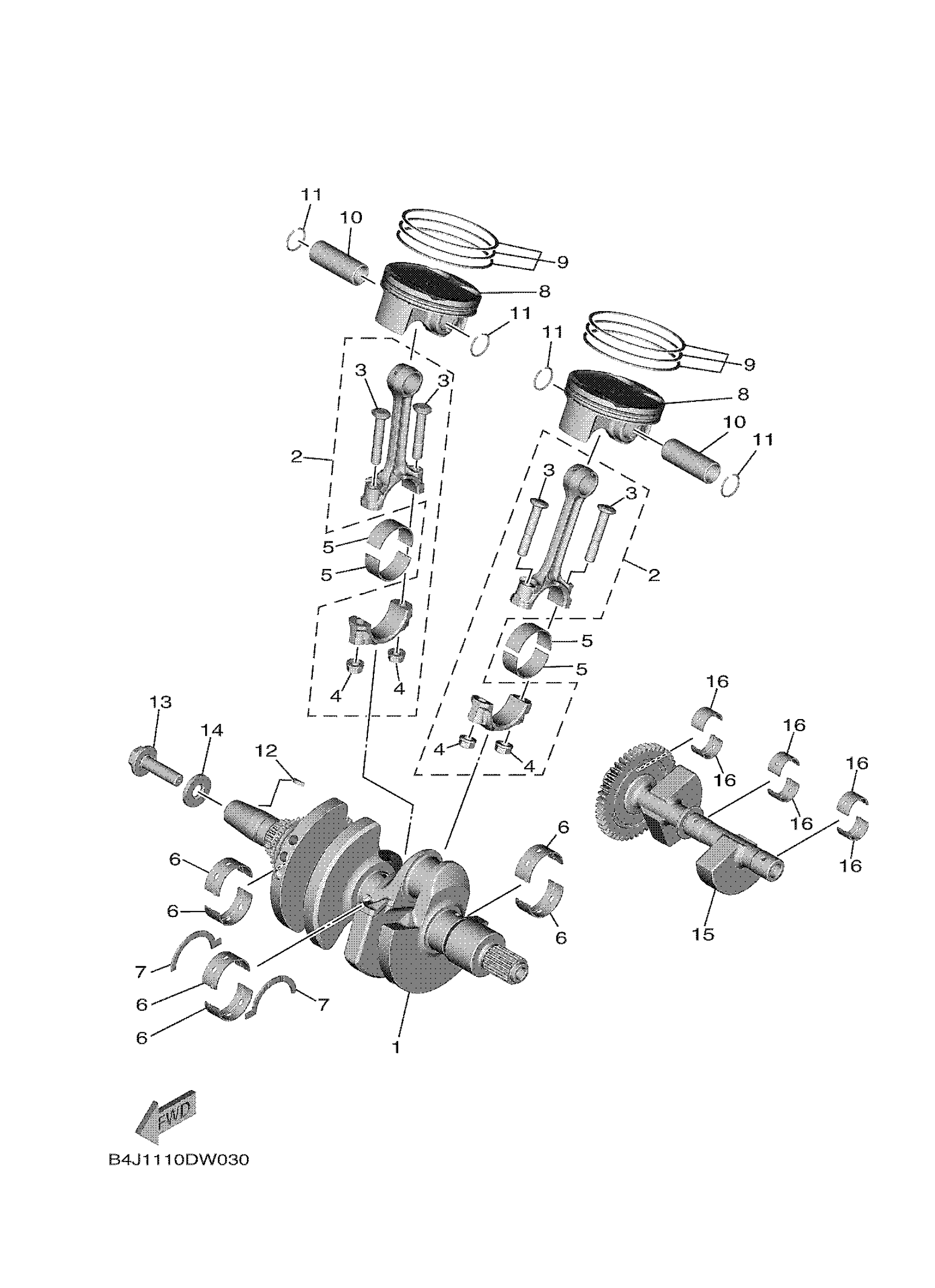

Yamaha YXF10WRARW (WOLVERINE RMAX4 R SPEC) B4JL 2024 CRANKSHAFT & PISTON Diagram
#
Description
Price
1
CRANKSHAFT ASSY
B1R-11400-00-00
Unavailable
2
CONNECTING ROD ASSY
B1R-11650-00-00
$165.99
3
BOLT, CONNECTING ROD
B1R-11654-00-00
$4.82
4
NUT (11H)
90179-09379-00
$8.49
5
PLANE BEARING, CONNECTING ROD
B1R-11656-00-00
$7.49
5
PLANE BEARING, CONNECTING ROD
B1R-11656-10-00
$7.49
5
PLANE BEARING, CONNECTING ROD
B1R-11656-20-00
$7.49
5
PLANE BEARING, CONNECTING ROD
B1R-11656-30-00
$7.49
6
PLANE BEARING, CRANKSHAFT 1
23P-11416-00-00
$19.99
6
PLANE BEARING, CRANKSHAFT 1
23P-11416-10-00
Unavailable
6
PLANE BEARING, CRANKSHAFT 1
23P-11416-20-00
$22.99
6
PLANE BEARING, CRANKSHAFT 1
23P-11416-30-00
$22.99
6
PLANE BEARING, CRANKSHAFT 1
23P-11416-40-00
$19.99
7
BEARING, THRUST 1
BG4-11426-00-00
$13.99
8
PISTON (STD)
B1R-11631-00-00
$94.99
9
PISTON RING SET (S
B1R-E1603-00-00
Unavailable
10
PIN, PISTON
B1R-11633-00-00
Unavailable
11
CIRCLIP
93450-23167-00
Unavailable
12
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
13
BOLT, UNION
90401-12003-00
Unavailable
14
WASHER (838)
90201-12191-00
Unavailable
15
BALANCER ASSY
B1R-E1500-00-00
Unavailable
16
PLANE BEARING, BALANCE WEIGHT
2S3-11413-00-00
Unavailable
16
PLANE BEARING, BALANCE WEIGHT
2S3-11413-10-00
Unavailable
16
PLANE BEARING, BALANCE WEIGHT
2S3-11413-20-00
Unavailable
16
PLANE BEARING, BALANCE WEIGHT
2S3-11413-30-00
Unavailable
16
PLANE BEARING, BALANCE WEIGHT
2S3-11413-40-00
Unavailable
