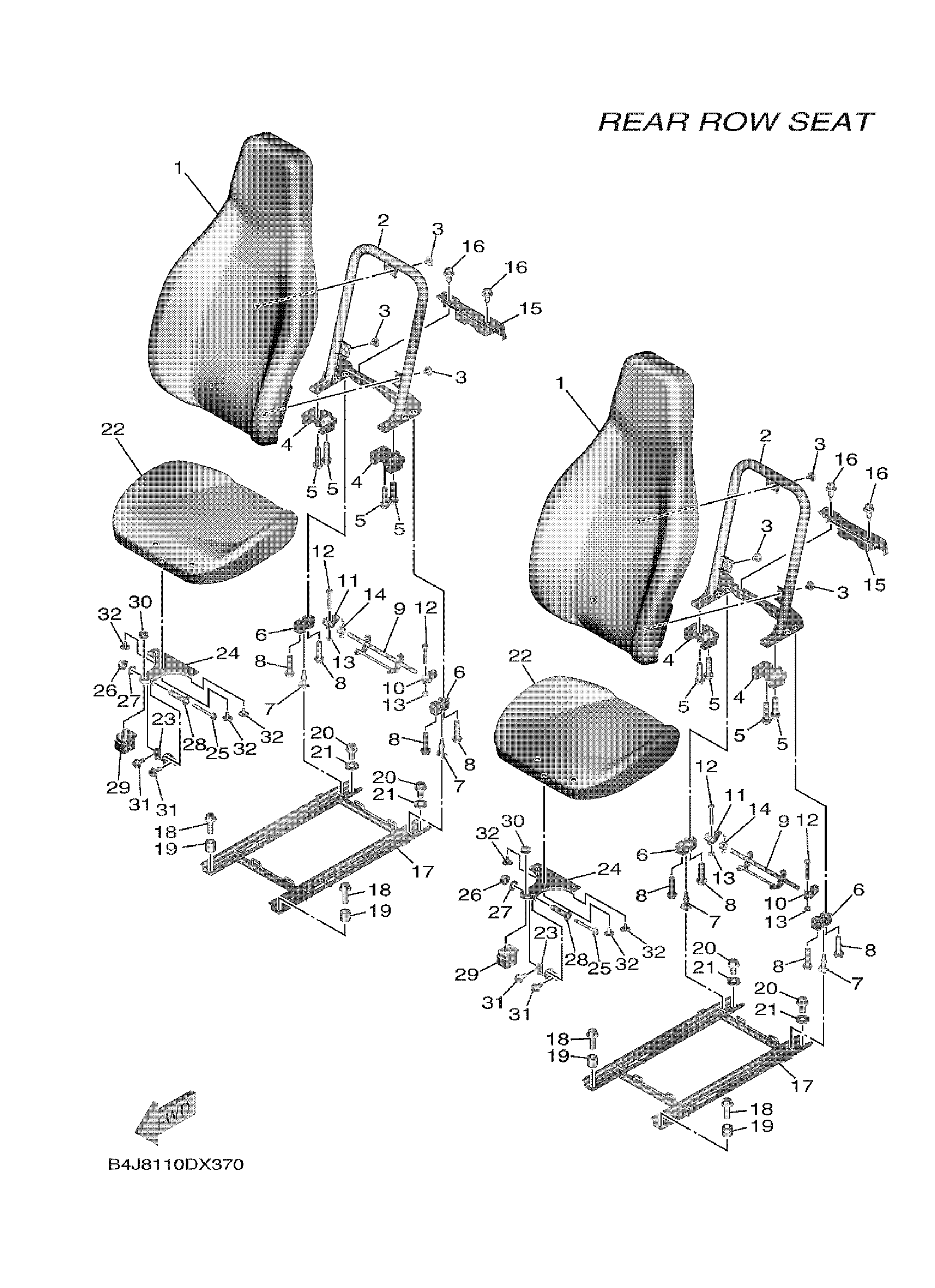

Yamaha YXF10WRAPL (WOLVERINE RMAX4 RSPEC) B4JE 2023 SEAT 3 Diagram
#
Description
Price
16
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
17
SEAT RAIL ASSY 1
BG4-F110B-00-00
Unavailable
18
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
19
COLLAR (437)
90387-08258-00
Unavailable
20
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
21
WASHER, PLATE
90201-08048-00
Unavailable
22
SEAT ASSY
BG4-F4700-11-00
Unavailable
23
BRACKET, HINGE
BG4-F114B-00-00
Unavailable
24
HINGE,SEAT
BG4-F4726-00-00
Unavailable
25
BOLT, FLANGE
95817-06050-00
Unavailable
26
NUT, SELF-LOCKING
95617-06100-00
Unavailable
27
WASHER, PLATE
90201-06557-00
Unavailable
28
COLLAR
90387-068S4-00
Unavailable
29
RUBBER, DAMPING
BG4-F5915-01-00
Unavailable
30
NUT, S/L FLANGE
95607-05200-00
Unavailable
31
BLOT, FLANGE DEEP RECESS
95D32-06012-00
Unavailable
