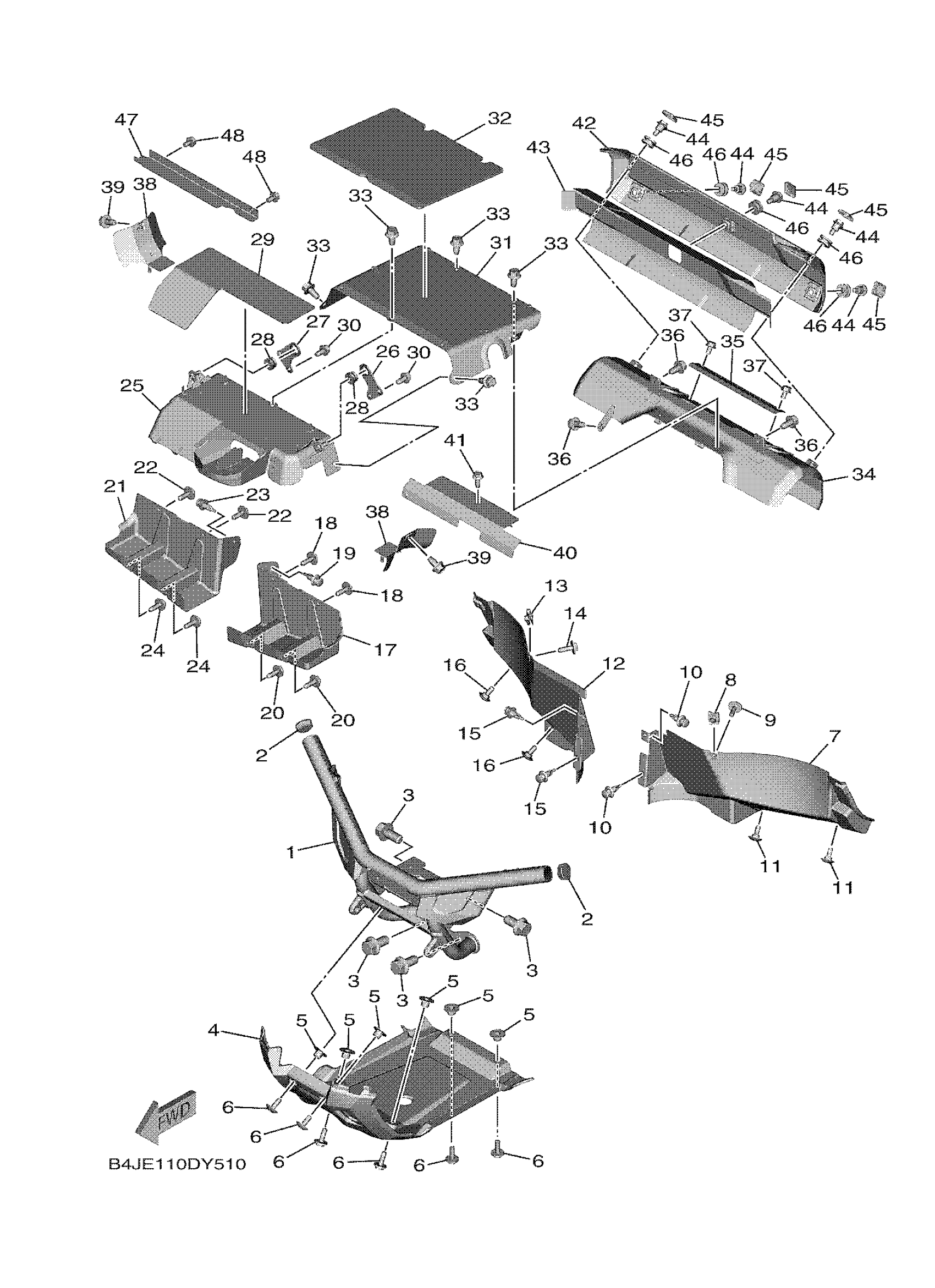

Yamaha YXF10WRAPL (WOLVERINE RMAX4 RSPEC) B4JE 2023 GUARD Diagram
#
1
BAR, CARRY FRONT
B4J-F845N-12-00
$100.99
2
PLUG (FRONT BUMPER)
5UG-F2417-00-00
$6.99
3
BOLT, FLANGE
95812-12025-00
$9.49
4
COVER, UNDER
B4J-F8385-01-00
$68.99
5
COLLAR (4N0)
90387-071E0-00
$7.49
6
BOLT, HEXAGON SOCKET HEAD(51L)
90110-06087-00
$5.60
7
GUARD 1
BG4-F2361-01-00
$18.99
8
NUT, SPRING
90183-062A1-00
$1.96
9
BOLT, WITH WASHER
90119-06226-00
$8.49
10
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
11
BOLT
90109-06334-00
$2.60
12
GUARD 2
BG4-F2362-01-00
$26.99
13
NUT, SPRING
90183-062A1-00
$1.96
14
BOLT, WITH WASHER
90119-06226-00
$8.49
15
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
16
BOLT
90109-06334-00
$2.60
17
MUD GUARD 1
BG4-F2327-00-00
Unavailable
18
BOLT, WITH WASHER
90119-06226-00
$8.49
19
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
20
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
21
MUD GUARD 2
BG4-F2328-00-00
Unavailable
22
BOLT, WITH WASHER
90119-06226-00
$8.49
23
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
24
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
25
INSULATOR, HEAT
B4J-F2898-10-00
Unavailable
26
STAY, 4
B4J-F846W-00-00
Unavailable
27
STAY 5
B4J-F846X-00-00
Unavailable
28
GROMMET
90480-18019-00
Unavailable
29
DAMPER 1
B4J-F8415-00-00
Unavailable
30
BOLT, FLANGE
90105-08867-00
Unavailable
31
SHIELD, HEAT
B4J-F3892-02-00
Unavailable
32
DAMPER 3
B4J-F8425-00-00
Unavailable
33
BOLT, FLANGE
90105-08867-00
Unavailable
34
INSULATOR, MOUNTIN
B4J-F2891-11-00
Unavailable
35
INSULATOR, MOUNTIN
BG4-F2894-00-00
Unavailable
36
BOLT, FLANGE
90105-08867-00
Unavailable
37
BLOT, FLANGE DEEP RECESS
95D32-06010-00
Unavailable
38
PROTECTOR 1
BAR-F2825-00-00
Unavailable
39
BOLT, FLANGE
90105-08867-00
Unavailable
40
PROTECTOR 1
B4J-F2825-02-00
Unavailable
41
BOLT, FLANGE
90105-06831-00
Unavailable
42
PROTECTOR, MUFFLER
BKP-F194H-00-00
Unavailable
43
SHEET, INSULATOR
B4J-HA7E0-00-00
Unavailable
44
BOLT
90109-06214-00
Unavailable
45
CAP
2MB-F143A-00-00
Unavailable
46
GROMMET
90480-12025-00
Unavailable
47
PROTECTOR 2
B4J-F834W-01-00
Unavailable
48
BLOT, FLANGE DEEP RECESS
95D32-06010-00
Unavailable
