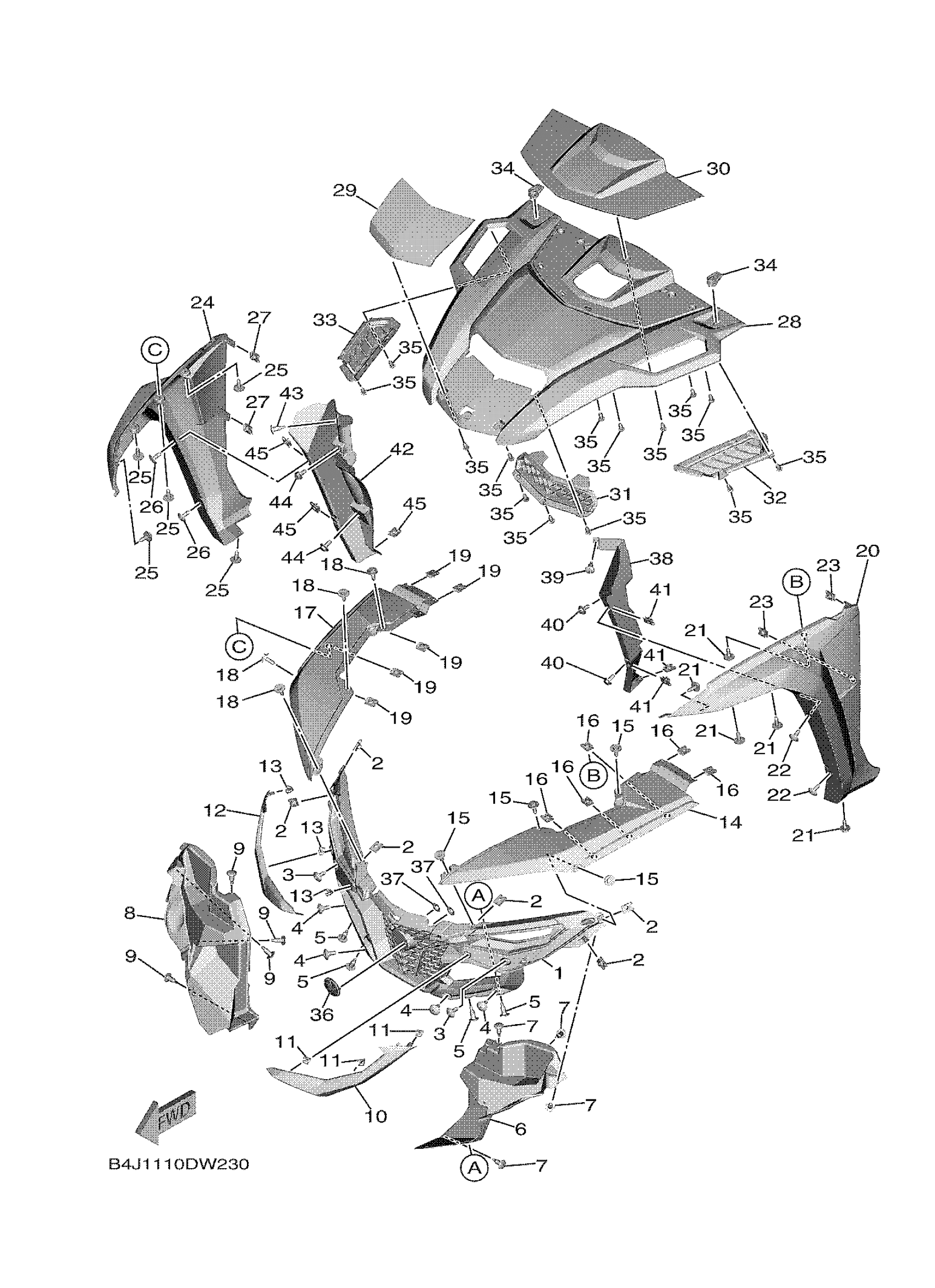

Yamaha YXF10WRAPL (WOLVERINE RMAX4 RSPEC) B4JE 2023 FRONT FENDER 2 Diagram

#

Description
Price

1

GRILLE, FRONT

B4J-F8309-00-00

$135.99

2

NUT, SPRING

90183-062A1-00

$1.96

3

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

4

BOLT

90109-06334-00

$2.60

5

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

6

COVER 1

B4J-E246A-02-00

$28.99

7

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

8

COVER 2

B4J-E246E-02-00

Unavailable

9

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

10

PANEL 1

B4J-F835U-00-00

$13.99

11

CLIP

90468-040A0-00

$8.49

12

PANEL 2

B4J-F835V-00-00

$12.49

13

CLIP

90468-040A0-00

$8.49

14

FENDER, INNER

B4J-F1552-40-00

$96.99

15

BOLT, WITH WASHER

90119-06226-00

$8.49

16

NUT, SPRING

90183-062A1-00

$1.96

17

FENDER, INNER 2

B4J-F1553-40-00

Unavailable

18

BOLT, WITH WASHER

90119-06226-00

$8.49

19

NUT, SPRING

90183-062A1-00

$1.96

20

FENDER, FRONT

B4J-F1511-50-00

Unavailable

21

BOLT, WITH WASHER

90119-06226-00

$8.49

22

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

23

NUT, SPRING

90183-062A1-00

$1.96

24

FENDER, FRONT 2

B4J-F1556-50-00

Unavailable

25

BOLT, WITH WASHER

90119-06226-00

$8.49

26

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

27

NUT, SPRING

90183-062A1-00

$1.96

28

HOOD 3

B4J-F197H-40-00

Unavailable

29

HOOD 1

B4J-F835E-00-00

Unavailable

30

HOOD 2

B4J-F835F-01-00

Unavailable

31

GRILLE

B4J-K715N-01-00

Unavailable

32

VENT, FRONT 1

B4J-K715H-00-00

Unavailable

33

VENT, FRONT 2

B4J-K715J-00-00

Unavailable

34

LEVER, LOCK

1XD-2175K-10-00

Unavailable

35

TAPPING SCREW

90169-06802-00

Unavailable

36

EMBLEM, YAMAHA

B4J-F153E-00-00

Unavailable

37

NUT, SPRING

90183-06071-00

Unavailable

38

GUARD, MUD

B4J-F152R-00-00

Unavailable

39

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

40

BOLT, WITH WASHER

90119-06242-00

Unavailable

41

NUT, SPRING

90183-062A1-00

$1.96

42

GUARD, MUD

B4J-F1629-00-00

Unavailable

43

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

44

BOLT, WITH WASHER

90119-06242-00

Unavailable

45

NUT, SPRING

90183-062A1-00

$1.96
